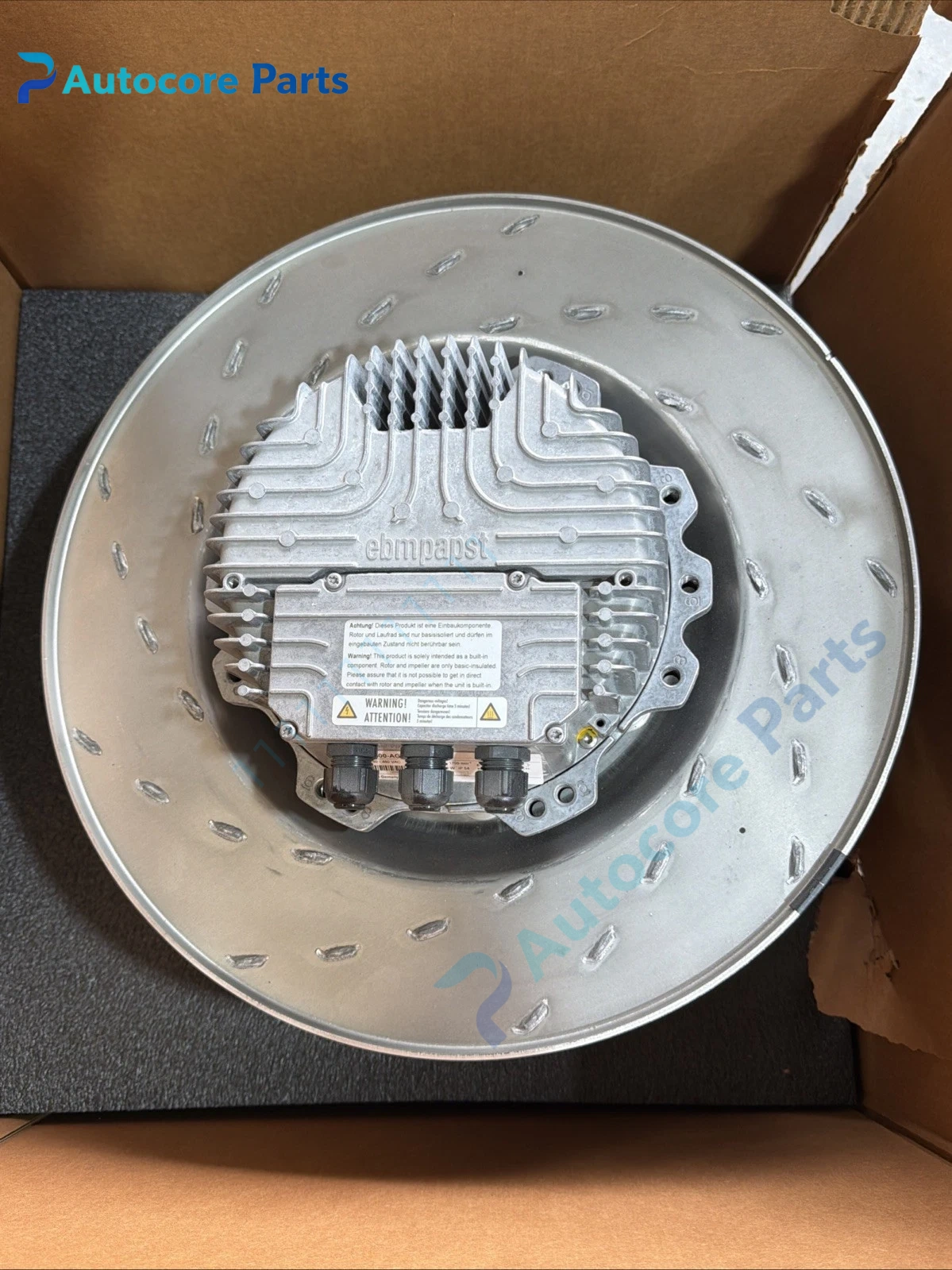

Ebmpapst R3G500-AG25-01 EC Centrifugal Fan Unit

Feature & Principle

This EC centrifugal fan adopts brushless DC motor and backward curved impeller design. It supports 0-10V analog speed regulation and PWM signal control, with high efficiency and low noise characteristics. Built-in electronic protection functions such as stall protection and overheat protection, stable air supply for constant air volume system and electrical cabinet heat dissipation.

Specifications

Model: R3G500-AG25-01 Brand: ebmpapst Type: EC centrifugal fan Impeller diameter: 500mm Control signal: 0-10V / PWM Protection: IP54 Cooling mode: Direct drive Certification: CE, ErP

Components & Diagnostics

EC motor, backward curved impeller, integrated drive control board, spiral casing and mounting bracket. Common faults: speed out of control, no rotation, abnormal noise, communication signal failure and motor overheating alarm.

Product Brief

R3G500-AG25-01 fan, ebmpapst ventilation spare widely used for air conditioning unit, air purification system, large industrial control cabinet and data center ventilation cooling.
