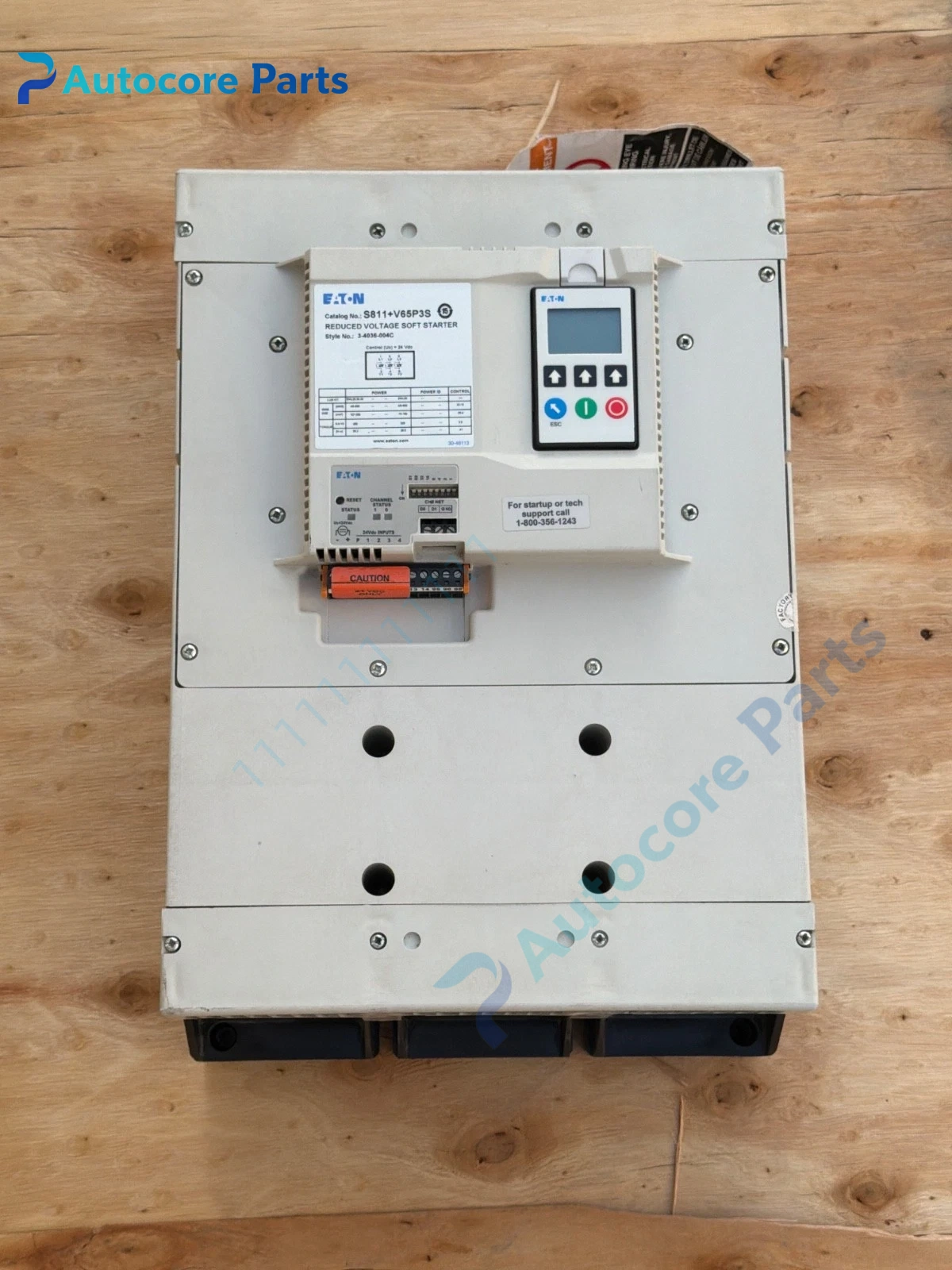

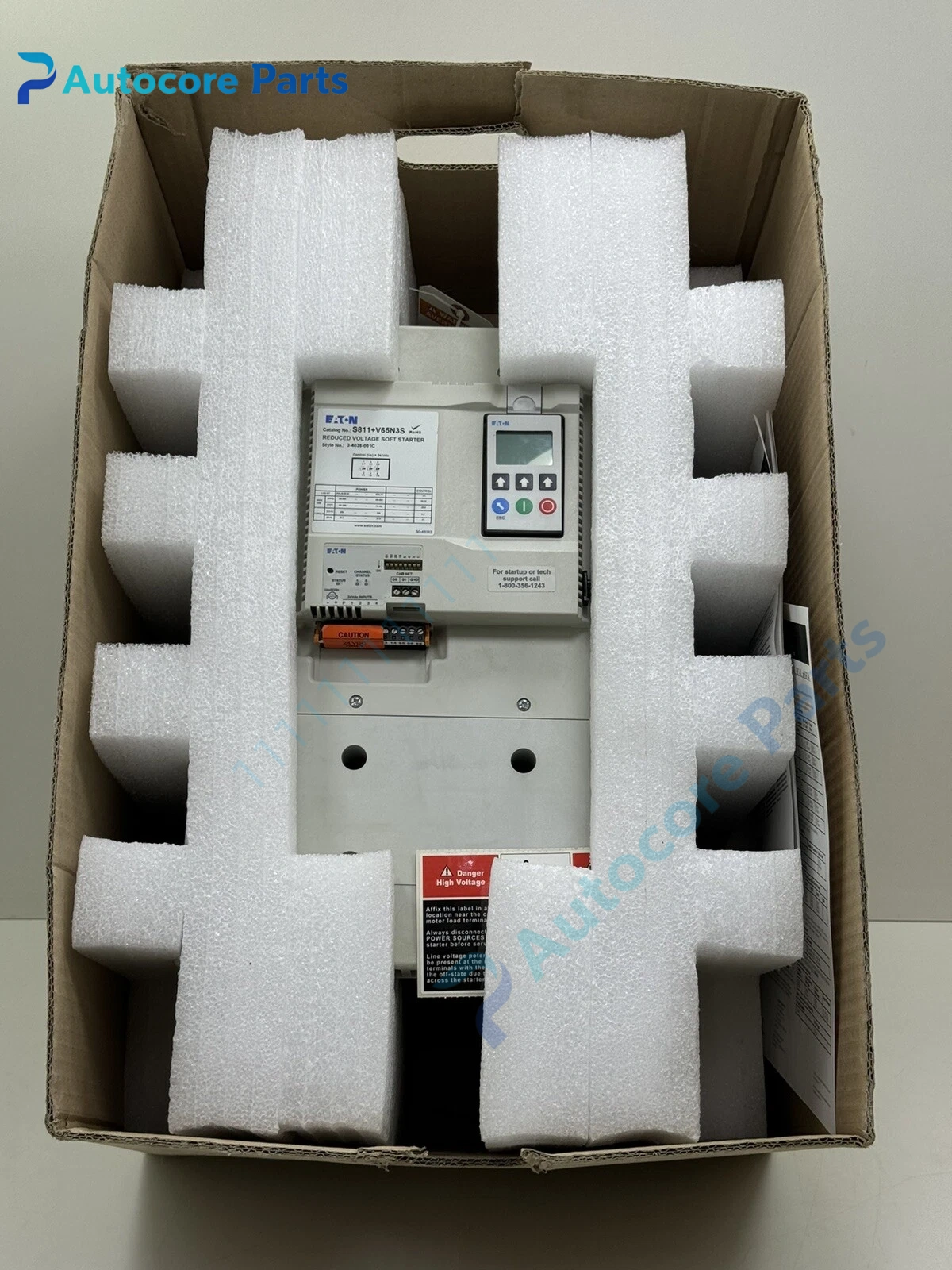

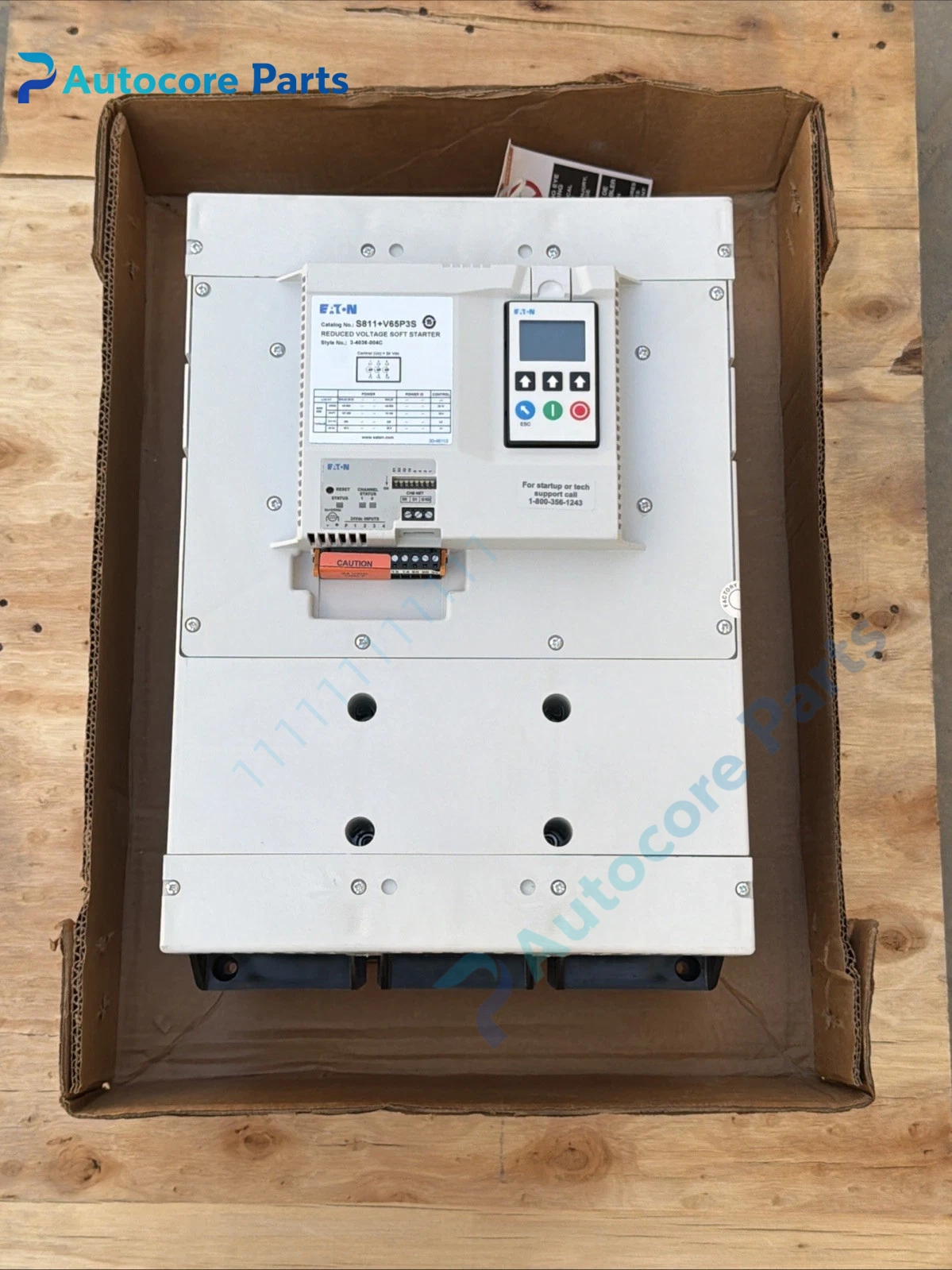

Eaton S811+V65P3S Motor Soft Starter Unit

Module Feature

S811+V65P3S is Eaton S811+ premium pump-type soft starter, V frame size, rated operational current 650A, suitable for 315kW @400V three-phase asynchronous motors. It adopts three-phase SCR voltage regulation and integrates internal bypass contactor; after completing soft ramp, the bypass closes to reduce heat loss and extend SCR service life. The P3S suffix means pump-specific firmware, equipped with deceleration ramp and anti-water hammer control logic to suppress pipeline pressure surge. It supports Modbus RTU for remote monitoring, current, voltage, power and fault data upload. It has comprehensive motor protection including overload, phase loss, phase imbalance, over-temperature, locked rotor and current limit. Local LCD panel supports parameter editing, trend viewing and fault record query. It can be installed in MCC cabinet or standalone enclosure, widely used for water supply pump, sewage pump, large fan and compressor.

Working principle

When receiving start enable signal, the controller gradually increases SCR conduction angle, smoothly raises motor terminal voltage to realize soft acceleration and limit inrush current. For pump stop, the special pump deceleration curve slowly reduces torque to avoid water hammer. When the motor reaches full speed, the built-in bypass contactor pulls in, SCR stops working. The protection circuit continuously monitors three-phase current and temperature; it will cut off output and trigger alarm once abnormal condition occurs.

Onboard components

Three-phase SCR power module, built-in bypass contactor, current transformer set, main control PCB with Modbus interface, digital DIM interface module, LCD operation panel, temperature sensor, cooling fan, power terminal lug assembly.

LED indicators

Front panel status LEDs for power, run, bypass active, fault alarm; LCD screen displays current, voltage, load %, thermal capacity and fault codes.

Hardware self‑diagnosis

Self-check covers input phase loss, current imbalance, SCR fault, over-temperature, motor overload, locked rotor, communication timeout and parameter error. Fault timestamps and event logs are stored locally.

Programming software

Eaton configuration software for parameter backup, pump curve adjustment, Modbus address setting and firmware upgrade.

Electrical & Process Parameters

Model:S811+V65P3S Brand:Eaton Device type:Three-phase Soft Starter Rated current:650 A Main circuit voltage:200~600V AC Control supply:24V DC Communication:Modbus RTU Built-in bypass:Yes Function:Soft start and soft stop for large pump, fan and compressor motor, anti water hammer protection

Mechanical & Structure

Mounting:Cabinet backplane mounting Frame:V frame Protection class:IP00 (open type) Housing:Metal chassis

Environmental

Operating temperature:-30℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, IEC60947-4-2, UL listed Status:Eaton original S811+ soft starter spare

Installation

Install in well-ventilated MCC cabinet, reserve cooling clearance. Wire three-phase main power, motor cable and 24V control power. Connect Modbus communication wiring if remote monitoring required. Set start ramp time, stop ramp, current limit and overload trip class according to pump mechanical characteristics. Perform start test and check pipeline pressure fluctuation. Keep cooling fan and air channel clean regularly.

Interface

L1/L2/L3 main input terminals, U/V/W motor output terminals, 24V control power terminals, Modbus communication terminals, dry contact alarm relay terminals.

Diagnostic

Overcurrent trip: Mechanical jam, motor winding short circuit or improper current limit setting. Phase loss fault: Input fuse blown, loose main cable terminal. Over-temperature alarm: Fan failure, blocked air duct or continuous heavy-duty frequent start. Pump stop surge: Deceleration time set too short, need adjust pump stop curve. Modbus offline: Wrong baud rate, address conflict or bus termination problem.

Product Brief

Eaton S811+V65P3S premium pump soft starter, 650A, 200–600V AC, internal bypass, Modbus RTU, anti-water hammer algorithm, LCD panel, designed for large water pump, fan and compressor motor soft start and stop.
