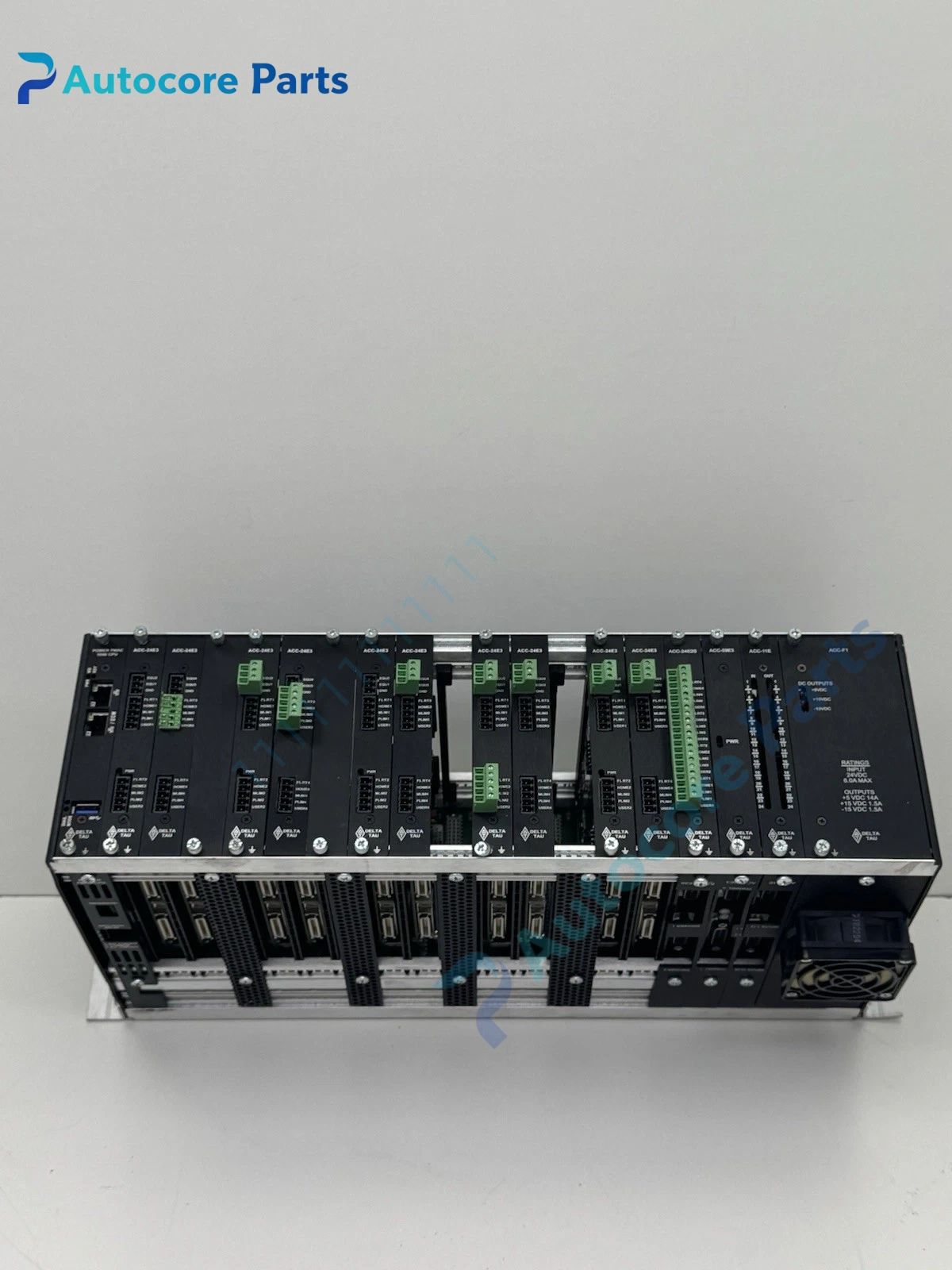

Delta Tau 3-2932A-00-2100-B0000 Power PMAC 1040 Motion Control Unit

Module Feature

3-2932A-00-2100-B0000 is Delta Tau Power PMAC 1040 series multi-axis motion controller, the upgraded generation of classic Turbo PMAC controller. It adopts PowerPC processor and customized Linux real-time operating system, providing powerful computing performance for complex motion tasks.

It supports G-code CNC program, PMAC motion script, internal PLC logic and electronic cam function. It can cooperate with ACC-24E2S, ACC-24E3 and other expansion cards to realize analog servo control, encoder acquisition and digital I/O signal processing. It is widely used in precision machine tools, laser processing equipment, semiconductor test platforms and multi-axis synchronous automation machines.

Working principle

The controller receives motion commands from upper host computer, resolves NC program and generates position instructions for each servo axis.

It reads encoder feedback signals through expansion interface cards, executes closed-loop position and speed control, and outputs servo drive commands. The built-in PLC scans I/O signals and executes safety interlock logic. Operation status and fault information are uploaded to host via Ethernet bus.

Onboard components

PowerPC main processor, flash memory and RAM chipset, backplane expansion bus circuit, Ethernet communication circuit, serial debug interface, power management circuit, front status indicator array.

LED indicators

Front panel LEDs indicate power ready, system running, bus communication and hardware fault status.

Hardware self‑diagnosis

Self-check covers backplane power anomaly, expansion card communication failure, memory error, bus timeout and internal hardware exception. Fault codes and operation logs can be read by Power PMAC IDE.

Programming software

Power PMAC IDE for G-code programming, motion parameter tuning, PLC configuration, fault log viewing and firmware upgrade.

Electrical & Process Parameters

Model:3-2932A-00-2100-B0000 Brand:Delta Tau Device type:Embedded Multi-axis Motion Controller CPU:PowerPC System:Custom Linux real-time system Communication:Ethernet, serial port Expansion:Match ACC-24E series I/O & servo cards Function:High-precision multi-axis closed-loop motion and CNC control

Mechanical & Structure

Mounting:Installed on dedicated backplane rack Protection class:IP20 Housing:Metal hot-swappable controller module housing

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE compliant Status:Delta Tau original Power PMAC spare, discontinued model

Installation

Insert the controller into the coded slot of dedicated backplane rack and lock the latch. Install matching ACC-24E series expansion cards according to axis configuration.

Connect Ethernet debugging cable and 24V DC power supply. Download project configuration through Power PMAC IDE, set axis parameters and servo loop tuning. Test emergency stop and limit interlock function before commissioning.

Interface

Internal backplane expansion bus, Ethernet port, serial debug port, 24V DC power terminals.

Diagnostic

Controller offline: Backplane power loss, poor rack contact or incompatible firmware.

Axis follow error: Encoder wiring fault, servo parameter mismatch or mechanical binding.

Expansion card not recognized: Card slot coding error, damaged backplane or faulty option card.

Product Brief

Delta Tau 3-2932A-00-2100-B0000 Power PMAC 1040 motion controller, Linux PowerPC platform, G-code and electronic cam support, matched with ACC-24E series cards, used for CNC, laser and semiconductor automation multi-axis motion control.
