DANAHER MOTION 501-02989-00 I/O Control Board

Technical SpecificationsModel：501-02989-00 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in digital I/O printed circuit board assembly for CNC motion control system

Board Feature:Function: Digital input and output signal buffering, logic conversion and data transfer between CNC CPU and machine field devices Integrated signal opto-isolation circuit to suppress electromagnetic noise On-board LED indicators for channel and hardware fault diagnosis ESD and surge protection on field signal terminals Gold finger edge connector for rack backplane communication

Electrical Parameters:Backplane supply:+5VDC, ±15VDC from CNC rack Field signal:24VDC digital logic compatible Galvanic isolation between control bus and field wiring

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-02989-00 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Compatible with older Giddings & Lewis CPU board, servo axis control boards and encoder feedback cards. Widely installed on heavy-duty boring mills, vertical and horizontal CNC machine tools.

Function

501-02989-00 is digital I/O interface PCB board manufactured by DANAHER MOTION Giddings & Lewis. It exchanges digital signals between CNC main processor and machine field peripherals such as limit switches, proximity sensors, relays and indicator lamps. Optical isolation separates machine field noise from sensitive CNC logic circuits. The onboard LEDs help maintenance personnel quickly locate signal faults during machine troubleshooting.

Installation

Follow lockout/tagout safety procedure before installation. Completely power off CNC rack. Insert 501-02989-00 gold finger card into empty rack slot and lock retention bracket. Wire field I/O cables to terminal block following Giddings & Lewis hardware manual. Power on and execute point-by-point I/O function test after wiring.

Interface

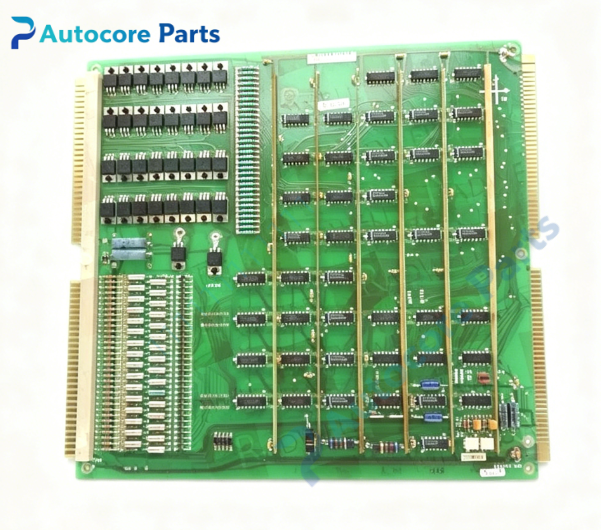

Gold-edge backplane connector, field signal terminal block, status LED indicator for DANAHER MOTION 501-02989-00.

Feature

Original DANAHER MOTION 501-02989-00 CNC I/O PCB board,opto-isolated signal circuit,built-in surge & ESD protection,LED diagnostic indicators,gold finger rack plug-in design,UL & CE certified. This spare unit is used for legacy heavy CNC machine I/O system maintenance and hardware replacement.

Diagnostic

No I/O signal response: Check rack backplane power, cable wiring and gold finger contact. Random signal dropout: Inspect cable shielding, grounding and surrounding EMI interference. LED fault alarm: Check for short circuit or overvoltage condition on field signal lines.

Product Brief

501-02989-00 is DANAHER MOTION Giddings & Lewis legacy rack mount digital I/O PCB board,for field digital signal collection and output of heavy-duty CNC machine control system,discontinued spare card.
