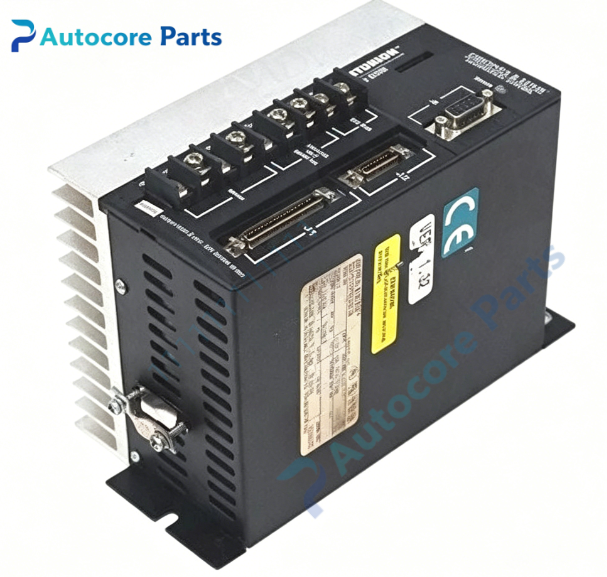

DANAHER MOTION 401-56453-50 Servo Drive

Technical Specifications

Model：401-56453-50 Brand：DANAHER MOTION Product Type: Centurion Micro DSM030P digital servo amplifier for industrial motion control

Drive Feature: Control mode: Position / Speed / Torque control Command input: Analog ±10V, pulse & direction signal Built-in function: Electronic gearing, homing routine, S-curve acceleration Software tool: DSMPro configuration software

Electrical Parameters: Input voltage: 100~240VAC single phase Continuous output current: 7.5A Peak output current: 15A Control supply: 24VDC

Mechanical & Structure: Housing: Compact metal enclosure Mounting: DIN rail mounting Cooling: Convection cooling Protection class: IP20

Environmental: Operating temperature: 0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 1.5kg

System compatibility

401-56453-50 (DSM030P) belongs to DANAHER MOTION Centurion Micro DSM servo drive family. Compatible with DANAHER MOTION brushless AC servo motors and mainstream CNC / PLC controllers. Widely used for single-axis motion control on CNC machine tools, cutting and packaging automation.

Function

401-56453-50 is compact digital servo amplifier manufactured by DANAHER MOTION. It receives motion command from upper controller and outputs regulated power to servo motor. Closed-loop control via encoder feedback realizes high precision positioning and smooth speed regulation. The DSMPro software supports parameter configuration, auto-tuning and fault diagnosis.

Installation

Follow lockout/tagout safety procedure before installation. Mount 401-56453-50 on standard DIN rail inside electrical cabinet. Connect power cable, motor cable and encoder cable strictly follow DANAHER MOTION Micro DSM series wiring manual. Complete motor auto-tuning and motion test during commissioning.

Interface

AC power terminals, motor output terminals, encoder port, digital I/O terminals, RS232 communication port, status LED indicator for DANAHER MOTION 401-56453-50.

Feature

Original DANAHER MOTION 401-56453-50 Micro DSM servo drive,compact size,DIN rail installation,multi control modes,support DSMPro tuning,UL & CE certified. This spare unit is used for CNC equipment axis control,motion system maintenance and hardware replacement.

Diagnostic

Drive alarm: Inspect overvoltage, undervoltage, overcurrent and overtemperature faults. Motor no rotation: Check power wiring,encoder connection and drive enable signal. Positioning deviation: Re-tune servo gain,check encoder signal and mechanical backlash. Abnormal vibration: Adjust servo parameters,inspect motor and coupling alignment.

Product Brief

401-56453-50 (DSM030P) is DANAHER MOTION Centurion Micro DSM compact digital servo amplifier,supports multi-mode control,matched with Danaher brushless servo motors,classic spare part for CNC and industrial automation motion system.
