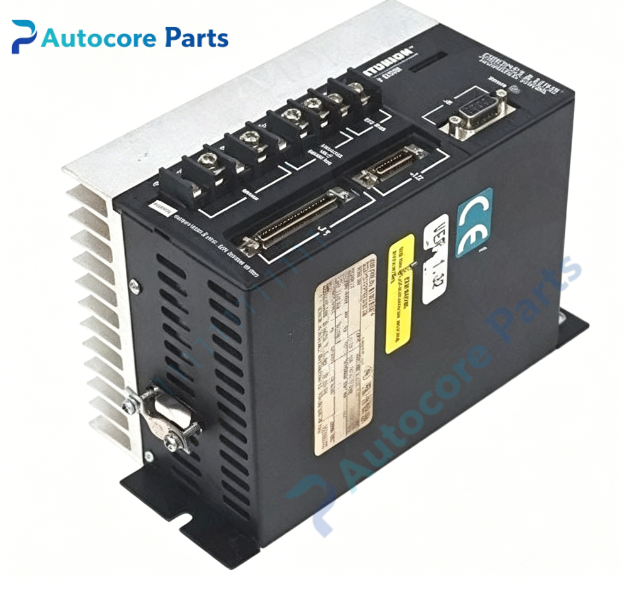

DANAHER MOTION 401-56453-00 Servo Drive

Technical Specifications

Model：401-56453-00 Brand：DANAHER MOTION Product Type: Micro DSM series compact digital servo amplifier for industrial motion control

Drive Feature: Control mode: Position / Speed / Torque control Command input: ±10V analog signal, pulse & direction Built-in function: Electronic gearing, homing routine, S-curve acceleration Configuration software: DSMPro

Electrical Parameters: Input voltage: 100~240VAC single phase Continuous output current: 6A Peak output current: 12A Control power supply: 24VDC

Mechanical & Structure: Housing: Compact metal enclosure Mounting: DIN rail mounting Cooling: Natural convection cooling Protection class: IP20

Environmental: Operating temperature: 0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 1.3kg

System compatibility

401-56453-00 belongs to DANAHER MOTION Micro DSM servo drive family. Compatible with DANAHER MOTION AC brushless servo motors and mainstream PLC / CNC controllers. Suitable for small automation equipment, cutting machines and packaging machinery single-axis motion applications.

Function

401-56453-00 is compact digital servo amplifier manufactured by DANAHER MOTION. It receives motion commands from upper controller and outputs adjustable driving current to servo motor. Closed-loop control is realized through encoder feedback to achieve high-precision positioning and stable speed operation. DSMPro software supports parameter setting, auto-tuning and fault monitoring.

Installation

Follow lockout/tagout safety procedure before installation. Install 401-56453-00 on standard DIN rail inside electrical cabinet. Connect power cable, motor cable and encoder cable strictly follow DANAHER MOTION Micro DSM series wiring manual. Complete motor auto-tuning and motion running test during commissioning.

Interface

AC power terminals, motor output terminals, encoder port, digital I/O terminals, RS232 communication port, status LED indicator for DANAHER MOTION 401-56453-00.

Feature

Original DANAHER MOTION 401-56453-00 compact servo drive,small footprint,DIN rail installation,multiple control modes,support DSMPro parameter tuning,UL & CE certified. This spare unit is used for small automation equipment axis control,motion system maintenance and hardware replacement.

Diagnostic

Drive alarm: Inspect overvoltage,undervoltage,overcurrent and overtemperature failures. Motor no rotation: Check power wiring,encoder connection and drive enable signal. Positioning error: Re-adjust servo gain,check encoder signal and mechanical backlash. Abnormal vibration: Optimize servo parameters,inspect motor and coupling assembly.

Product Brief

401-56453-00 is DANAHER MOTION Micro DSM compact digital servo amplifier,supports multi control modes,matched with Danaher brushless servo motors,classic spare part for small CNC and industrial automation motion system.
