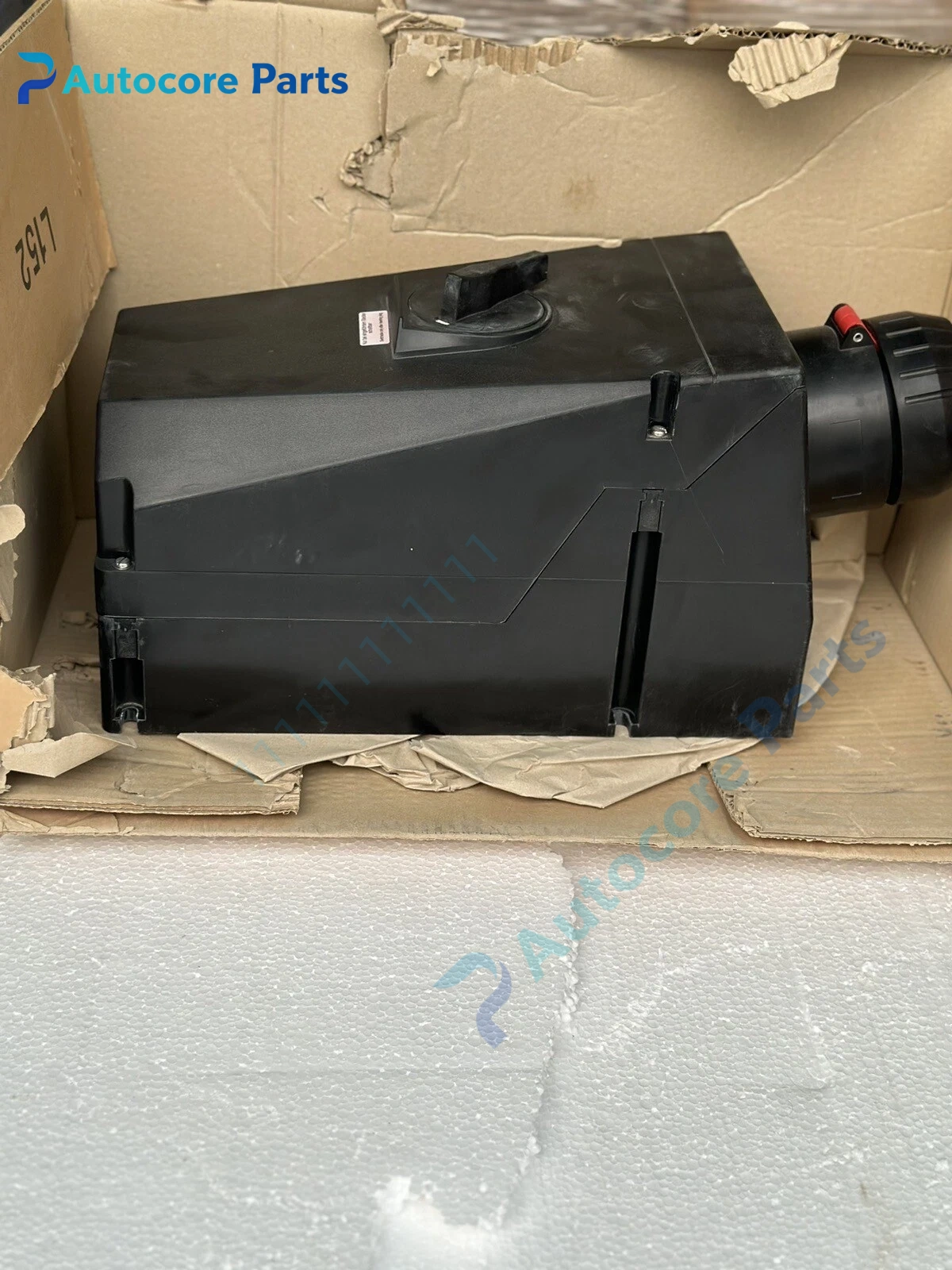

CROUSE-HINDS Eaton Hazardous Location Electrical Product Series Unit

Module Feature

CROUSE-HINDS is a historic hazardous-area electrical brand owned by Eaton, famous for explosion-proof and heavy-duty electrical components for explosive gas and dust hazardous zones.

Its portfolio covers explosion-proof junction boxes, conduit fittings, cable glands, control stations, push-button stations, interlock plug & receptacle, hazardous LED luminaires, sound & light alarm devices, intrinsic safety isolation modules and fieldbus interface assemblies. Cast aluminum / stainless steel housing options, available for Ex-d flameproof, Ex-e increased safety, Ex-i intrinsic safety protection types. It complies with NEC Division and IEC Zone classification, suitable for corrosive, wet, offshore and petrochemical hazardous environments. It is widely stocked as maintenance spare for refinery, chemical plant, offshore platform and gas plant field electrical installation.

Working principle

Flameproof Ex-d enclosure contains internal electric arcs and sparks; flame path cools and extinguishes explosion flame before transmitting to surrounding explosive atmosphere.

Increased safety Ex-e design limits surface temperature and fault energy to prevent ignition. Intrinsically safe Ex-i interface limits loop voltage and current to low energy level, avoiding ignition of hazardous gas. Mechanical interlock on plugs prevents plug pulling under live load. Continuous mechanical and thermal design suppress corrosion, water ingress and vibration damage.

Onboard components

Cast alloy explosion-proof housing, flame path mating surface, sealing gaskets, cable gland sealing components, contact blocks, pilot lamp assemblies, surge suppression circuits, intrinsic safety isolation barriers and stainless steel fasteners.

LED indicators

Pilot lamp versions have local status LED for power and alarm; enclosure itself has mechanical nameplate marking for protection class and hazardous area rating.

Hardware self‑diagnosis

Field devices rely on system-side intrinsic safety monitoring and loop fault detection; visual inspection for flame path damage, gasket aging, thread corrosion and seal failure during routine maintenance. Configuration and documentation management are completed by Eaton hazardous area engineering drawing tool.

Programming softwareEaton hazardous area engineering configuration tool, used for zone classification verification, cable entry selection and product specification documentation.

Electrical & Process Parameters

Model:CROUSE-HINDS series Brand:Eaton Device type:Hazardous area explosion-proof electrical assembly Function:Field power distribution, control, signal connection and lighting for explosive gas / dust hazardous locations

Mechanical & Structure

Mounting:Wall mounting, pipe mounting, conduit installation Protection class:IP66 / IP67 Housing:Cast aluminum, stainless steel explosion-proof enclosure

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, ATEX, IECEx, UL, CSA Status:Original Eaton hazardous area electrical spare

Installation

Confirm zone classification and gas group before installation.

Keep flame path clean and undamaged, use correct certified cable glands, apply proper sealing compound, avoid damaging enclosure threads and sealing surface, test earth continuity, inspect enclosure tightness after commissioning.

Interface

Conduit threaded hub, cable gland entry, internal terminal block for power / signal wiring.

Diagnostic

Seal failure: Gasket aging, loose cover, damaged flame path, risk of losing explosion-proof rating. Intermittent contact: Vibration loosening, terminal corrosion. Over-temperature risk: Wrong power rating, overload, incompatible temperature class.

Product Brief

CROUSE-HINDS series, Eaton explosion-proof hazardous-area electrical spare for oil & gas, chemical and offshore field control and power distribution cabinet replacement.
