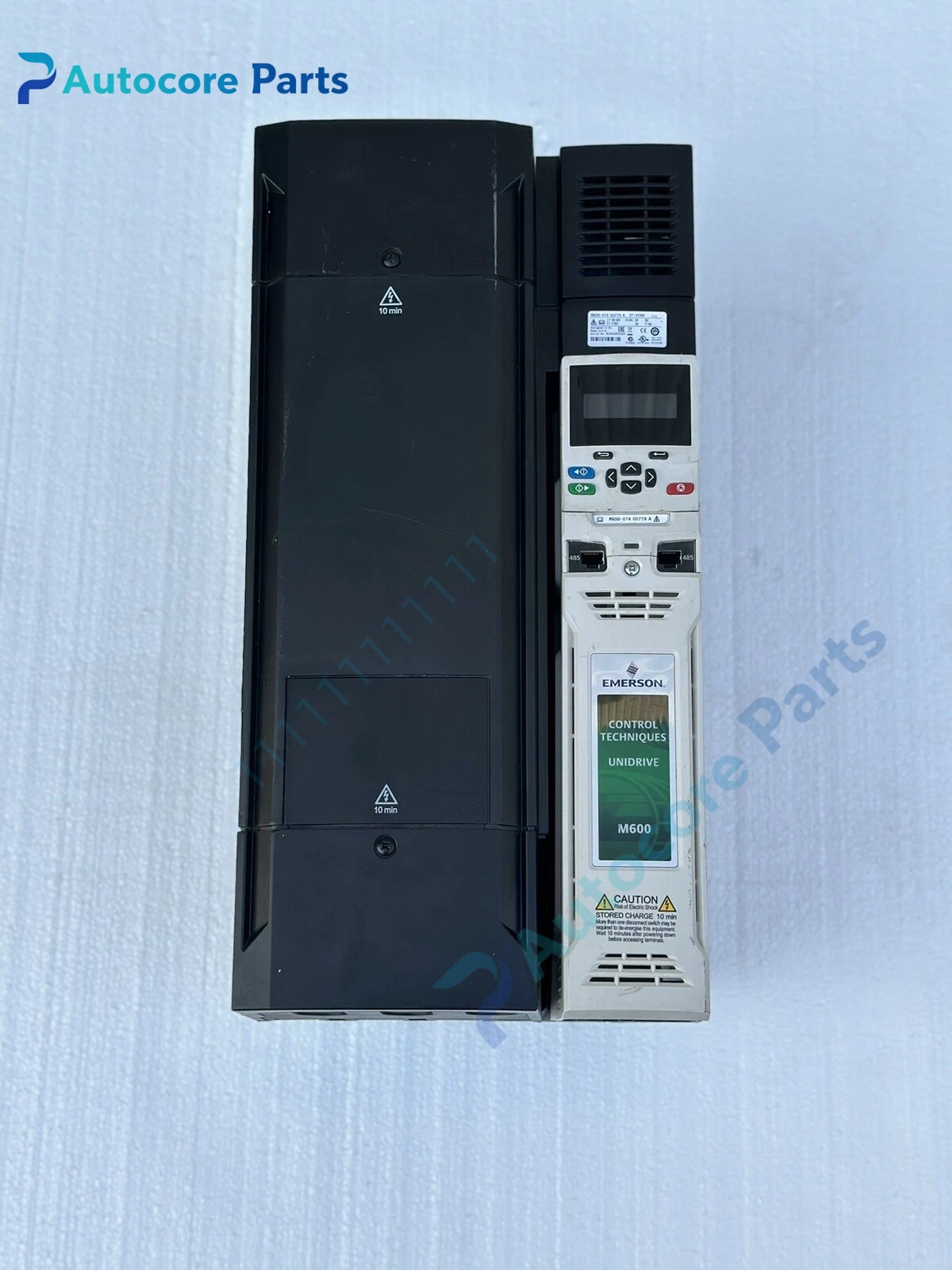

Control Techniques M600-074 Unidrive M600 AC Drive Unit

Module Feature

M600-074 is 400V grade open-loop drive of Nidec Control Techniques Unidrive M600 series. It supports V/F control and RFC rotor flux control, suitable for asynchronous induction motor and permanent magnet motor open-loop speed regulation. Built-in PLC logic function, configurable digital/analog I/O, multiple optional communication modules including PROFIBUS, EtherNet/IP, Modbus TCP. Integrated DC injection braking, skip frequency, sleep/wake function for fan and pump energy-saving application. Fan cooling, 19-inch cabinet rack mounting, heavy EMC grade. Widely stocked as maintenance spare for water treatment, HVAC, conveyor and process plant power control cabinet.

Working principle

Three-phase AC input is rectified into DC bus; main control chip outputs PWM pulse to IGBT power stage, converting DC into adjustable frequency three-phase AC to drive motor. RFC algorithm estimates motor flux and speed without encoder feedback. Built-in protection continuously monitors current, bus voltage and temperature, records fault code and stops output when abnormal condition occurs. It can receive speed command from analog signal, digital terminal or fieldbus.

Onboard components

IGBT power module, DC bus capacitor bank, Hall current sensor, main control CPU, keypad interface, option expansion slot, cooling fan, status LED array and metal chassis.

LED indicators

Front keypad panel displays running frequency, current, parameter menu and fault code; power, ready and fault LED are mounted on drive main board.

Hardware self‑diagnosis

Built-in supervision detects overcurrent, DC bus over/under voltage, heatsink overtemperature, I/O wiring fault and communication failure. Configuration and fault diagnosis are completed by Control Techniques CT-Soft software.

Programming softwareCT-Soft, used for motor identification, acceleration/deceleration curve setup, I/O function mapping, communication parameter and fault log reading.

Electrical & Process Parameters

Model:M600-074 Brand:Control Techniques (Nidec) Device type:Unidrive M600 open-loop AC variable frequency drive Function:Speed regulation and overload protection for induction and permanent magnet AC motor

Mechanical & Structure

Mounting:Cabinet rack mounting Protection class:IP20 Housing:Metal air-cooled VFD chassis

Environmental

Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, UL, IEC61800 Status:Original Nidec industrial VFD spare

Installation

Cut off three-phase AC power and discharge DC bus capacitors before replacement. Match motor rated parameters, confirm shielded motor cable wiring, install correct communication option module if needed, complete motor auto-tune, test speed command and protection function after commissioning.

Interface

Three-phase AC power terminal, motor output terminal, 24VDC control terminal, analog/digital I/O terminal, keypad port, fieldbus option slot.

Diagnostic

Overcurrent alarm: Motor short circuit, cable damage, acceleration ramp too steep. Overvoltage alarm: Regenerative load, abnormal input voltage. Overtemperature alarm: Fan fault, dust accumulation, poor ventilation. Communication offline: Option board fault, wrong bus address or wiring break.

Product Brief

M600-074 drive, Control Techniques Unidrive M600 open-loop VFD spare for pump, fan and conveyor energy-saving motor control cabinet replacement.
