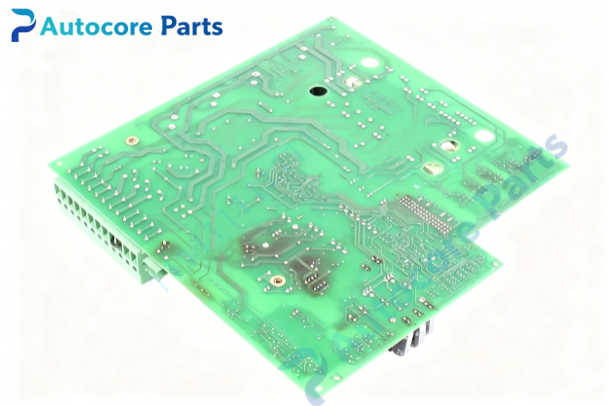

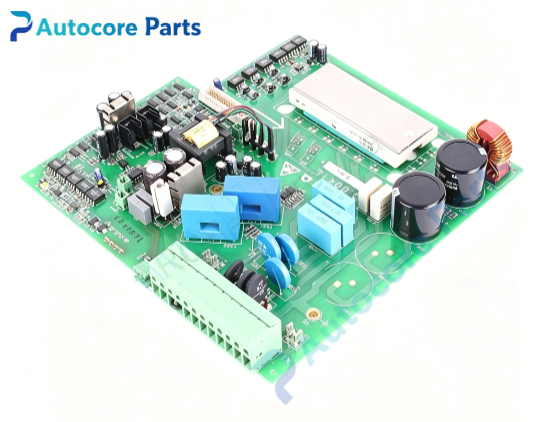

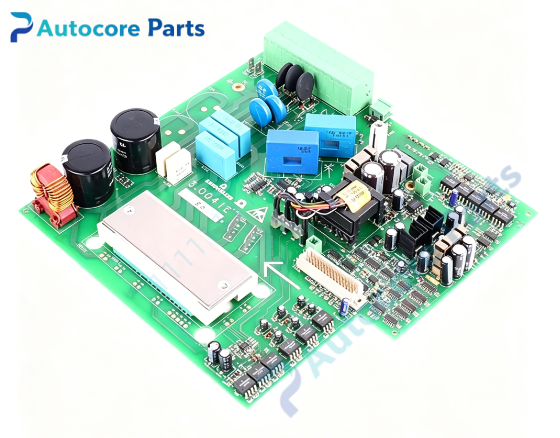

BAUMULLER 3.0041E5.0 Servo Drive Main Control PCB

Technical Specifications

Model: 3.0041E5.0 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0041E5.0 is a main control board for BAUMULLER b maXX servo drives. It works with matched power stage boards and feedback sampling modules, widely applied to printing, metal forming, plastic extrusion and textile machinery servo systems for overhaul.

Function

3.0041E5.0 is the core processing PCB of Baumüller servo drive. It runs high-speed closed-loop motion control algorithms, receives rotor position and speed feedback signals from resolver or encoder, and outputs PWM commands to power stage board. It stores drive parameters, handles fieldbus communication and comprehensive fault monitoring, supports high dynamic servo positioning and speed regulation. It is used to replace defective mainboards during drive maintenance.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove old mainboard, install 3.0041E5.0 and lock mounting screws. Reconnect internal ribbon cables and external signal connectors. Check wiring sequence, download matching firmware and parameters, test motor closed-loop operation before formal production.

Interface

Internal bus header, encoder/resolver feedback port, PWM signal output header, status LED indicators for 3.0041E5.0 BAUMULLER main control board.

Feature

Original Baumüller main control circuit board, high dynamic motion calculation, multi-level hardware and software protection, vibration resistant soldering, industrial EMC anti-interference design. This legacy spare part used for repairing old BAUMULLER b maXX servo drive control section.

Diagnostic

Drive boot failure after replacement: check board power supply and internal connector contact for 3.0041E5.0. Motor positioning inaccuracy: verify feedback wiring and firmware version matching. Intermittent speed fluctuation: inspect cable shielding and solder joint integrity.

Product Brief

3.0041E5.0 is German BAUMULLER main control PCB for b maXX servo drives. It performs closed-loop motion calculation and fault monitoring for servo positioning, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
