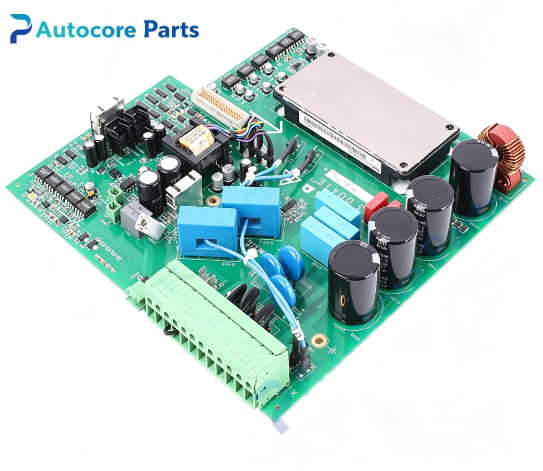

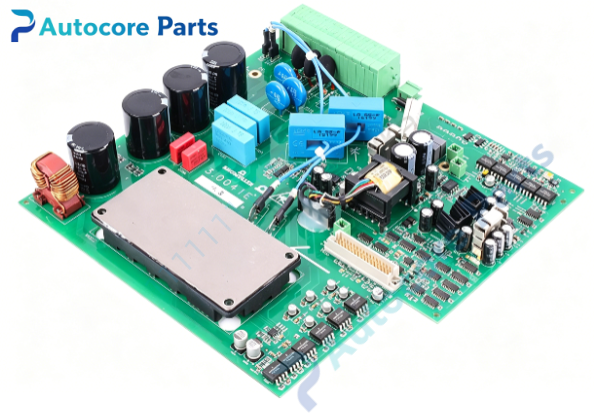

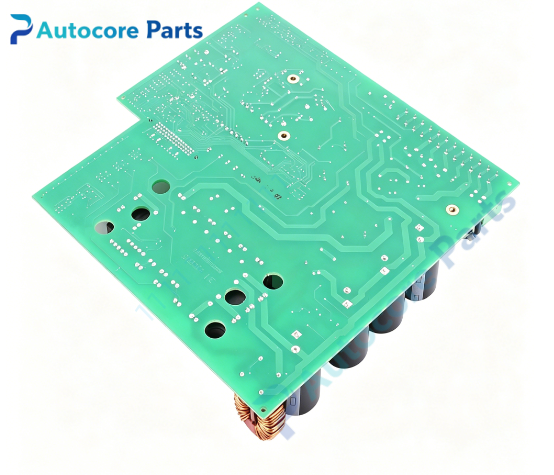

BAUMULLER 3.0041E1.3 Servo Drive Main Control Printed Circuit Board

Technical Specifications

Model: 3.0041E1.3 (alternate marking: 30041E13) Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0041E1.3 is compatible with matched BAUMULLER b maXX servo drives. It pairs with corresponding power stage boards and feedback sampling modules, widely used in printing, metal forming, plastic extrusion and textile production lines for drive control section replacement.

Function

3.0041E1.3 is the core mainboard inside Baumüller servo drive. It runs high-speed closed-loop motion control algorithms, receives resolver or encoder rotor position and speed signals, and generates PWM control commands to the power stage PCB. It stores drive parameters, executes fault diagnosis and fieldbus communication, and realizes precise motor commutation and positioning. It is used to replace defective main control boards during drive maintenance.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove old mainboard, install 3.0041E1.3 and lock mounting screws. Reconnect internal ribbon cables and external signal connectors. Check pin definition, download matching firmware and parameters, test motor closed-loop operation before formal production.

Interface

Internal bus header, encoder/resolver feedback port, PWM output connector, status LED indicators for 3.0041E1.3 BAUMULLER main control board.

Feature

Original Baumüller main control circuit board, high-speed motion arithmetic, multi-protection logic, anti-vibration soldering workmanship, built-in EMC noise suppression for industrial environments. This legacy spare part is used for field maintenance of old BAUMULLER b maXX servo drive systems.

Diagnostic

Drive boot failure after replacement: check board power supply and internal connector contact for 3.0041E1.3. Motor positioning deviation: verify feedback wiring and parameter firmware version matching. Intermittent speed jitter: inspect cable shielding and solder joint integrity.

Product Brief

3.0041E1.3 is German BAUMULLER main control PCB for b maXX servo drives. It performs closed-loop motion calculation and fault monitoring, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
