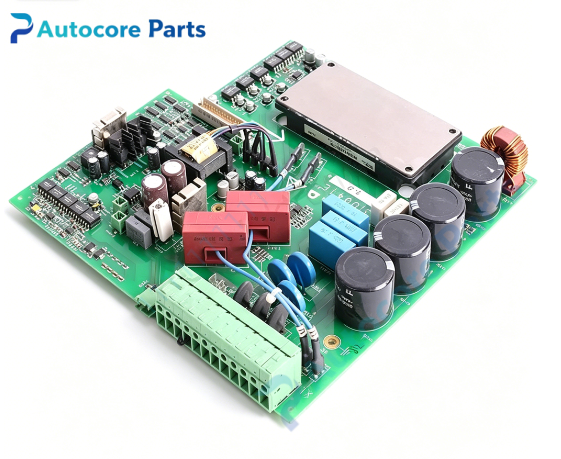

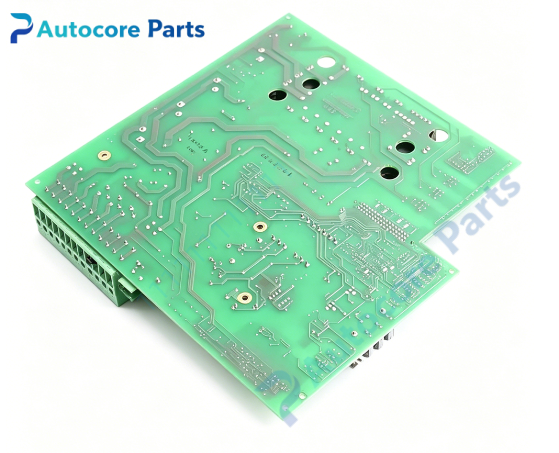

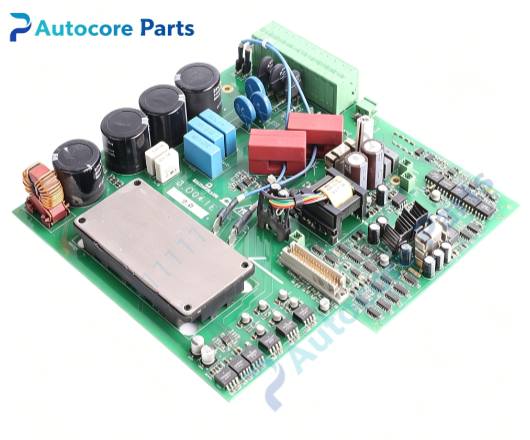

BAUMULLER 3.0041E1.0 Servo Drive Main Control Printed Circuit Board

Technical Specifications

Model: 3.0041E1.0 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0041E1.0 matches BAUMULLER b maXX series servo drives. It is compatible with corresponding power stage boards and feedback modules, widely used for printing, metal forming, plastic extrusion and textile production line servo system overhaul and component replacement.

Function

3.0041E1.0 is the core main control PCB inside Baumüller servo drive. It executes high-speed closed-loop motion control algorithms, receives rotor position and speed feedback signals, and outputs PWM drive commands to the power board. It also stores drive parameters, processes fault diagnosis and bus communication data, and realizes precise positioning and speed regulation of servo motor. It is used to replace damaged main control boards during drive maintenance.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old mainboard, install 3.0041E1.0 and secure mounting screws. Reconnect internal ribbon cables and external signal connectors. Check wiring sequence, download matching parameters, test motor closed-loop operation before formal production.

Interface

Internal bus header, encoder/resolver feedback port, PWM control signal connector, status LED indicators for 3.0041E1.0 BAUMULLER main control board.

Feature

Original Baumüller main control circuit board, high-speed motion arithmetic, multi-level fault protection, vibration resistant soldering process, industrial EMC anti-interference design. This legacy spare part is used for on-site maintenance of old BAUMULLER b maXX servo drive systems.

Diagnostic

Drive boot failure after replacement: check board power supply and internal connector contact for 3.0041E1.0. Motor positioning inaccuracy: verify feedback signal wiring and parameter matching. Intermittent drive alarms: inspect solder joints and cable shielding continuity.

Product Brief

3.0041E1.0 is German BAUMULLER main control PCB for b maXX servo drives. It runs motion control algorithms and processes feedback signals for closed-loop servo control, classic spare part for legacy BAUMULLER machine drive overhaul.
