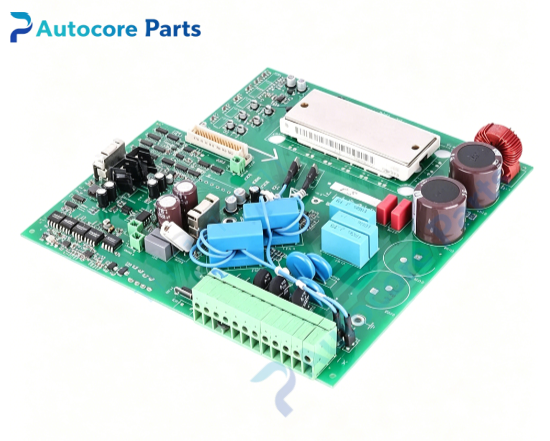

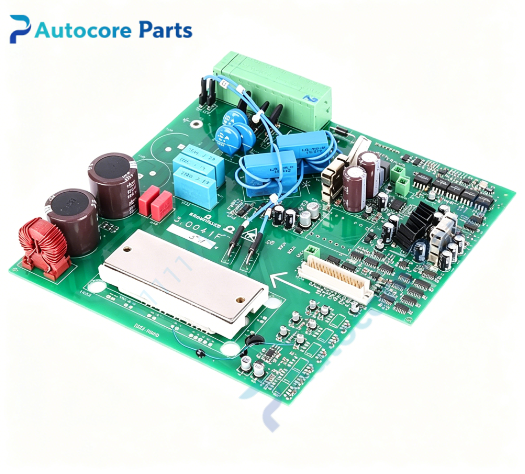

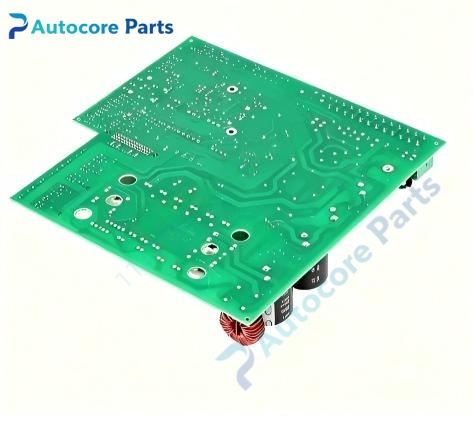

BAUMULLER 3.0041F5.1 Servo Drive Motion Control Mainboard

Technical Specifications

Model: 3.0041F5.1 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Motion Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0041F5.1 is compatible with matched BAUMULLER b maXX servo drives. It works with corresponding power stage boards and feedback sampling modules, widely used for printing, metal forming, plastic extrusion and textile production line servo system overhaul and component replacement.

Function

3.0041F5.1 is the core main control PCB inside Baumüller servo drive. It executes high-speed closed-loop motion control algorithms, receives rotor position and speed feedback signals from resolver or encoder, and generates PWM pulse commands for power stage modules. It stores drive parameters, handles bus communication and comprehensive fault diagnosis, and supports high dynamic positioning and speed regulation of servo motor. It is used to replace defective mainboards during drive maintenance.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove old mainboard, install 3.0041F5.1 and secure mounting screws. Reconnect internal ribbon cables and external signal connectors. Check wiring sequence, download matching firmware and parameters, test motor closed-loop operation before formal production.

Interface

Internal bus gold finger header, encoder/resolver feedback port, PWM signal output connector, status LED indicators for 3.0041F5.1 BAUMULLER main control board.

Feature

Original Baumüller main control circuit board, high-speed motion calculation, multi-level hardware and software protection, anti-vibration soldering workmanship, built-in EMC noise suppression for industrial environments. This legacy spare part used for repairing old BAUMULLER b maXX servo drive control circuits.

Diagnostic

Drive boot failure after replacement: check board power supply and internal connector contact for 3.0041F5.1. Motor positioning inaccuracy: verify feedback wiring and firmware parameter matching. Intermittent speed jitter: inspect cable shielding and solder joint integrity.

Product Brief

3.0041F5.1 is German BAUMULLER main control PCB for b maXX servo drives. It performs closed-loop motion calculation and fault monitoring for servo positioning, classic spare part for legacy BAUMULLER industrial machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
