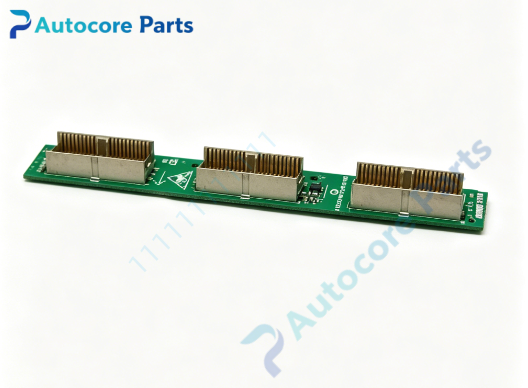

BAUMULLER 3.0022D Servo Drive Logic Control Board

Technical Specifications

Model: 3.0022D Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Internal Logic Control PCB Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0022D is compatible with selected BAUMULLER b maXX servo drives. It serves as an internal logic board for printing, plastic extrusion, textile and metal forming machinery drive systems, used for component replacement during overhaul.

Function

3.0022D is the logic processing PCB inside Baumüller servo drive. It manages internal signal sequencing, fault detection and parameter storage. It exchanges data between the main control unit and peripheral interface boards, ensuring coordinated operation of all drive sub-modules. It is used to replace aged or damaged logic boards in drive repair jobs.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old logic board, mount 3.0022D and secure fasteners. Reconnect ribbon cables and internal pin headers. Check wiring sequence, power on and perform full drive-motor test before putting into production.

Interface

Internal bus header, parameter memory connector, status signal pins for 3.0022D BAUMULLER logic control board.

Feature

Original Baumüller logic circuit board, integrated fault monitoring function, stable parameter storage, compact built-in layout, robust against industrial interference. This legacy spare part is used for on-site maintenance of old BAUMULLER servo drive systems.

Diagnostic

Drive boot stuck after replacement: check header pin contact and board power supply for 3.0022D. Random fault code popping up: verify parameter backup and write-integrity. Intermittent communication loss: inspect cable shielding and solder joints.

Product Brief

3.0022D is German BAUMULLER internal logic control PCB for b maXX servo drives. It processes internal logic and fault monitoring signals, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
