BAUMULLER 3.0022C Servo Drive Interface Printed Circuit Board

Technical Specifications

Model: 3.0022C Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Interface Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0022C matches BAUMULLER b maXX series servo drives. It is widely adopted in printing, plastic extrusion, textile and metal forming machinery for drive signal interface replacement during overhaul.

Function

3.0022C is the signal interface board inside Baumüller servo drive. It receives analog/digital setpoint commands from upper controller, transmits these signals to the main control board. It also forwards drive status and fault feedback to external control system. It provides electrical isolation for external signals to protect internal drive circuits. It is used to replace damaged interface boards during drive repair.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove old interface board, install 3.0022C and secure mounting screws. Reconnect internal ribbon cables and external signal terminals. Check signal continuity, power on and test drive response before formal production.

Interface

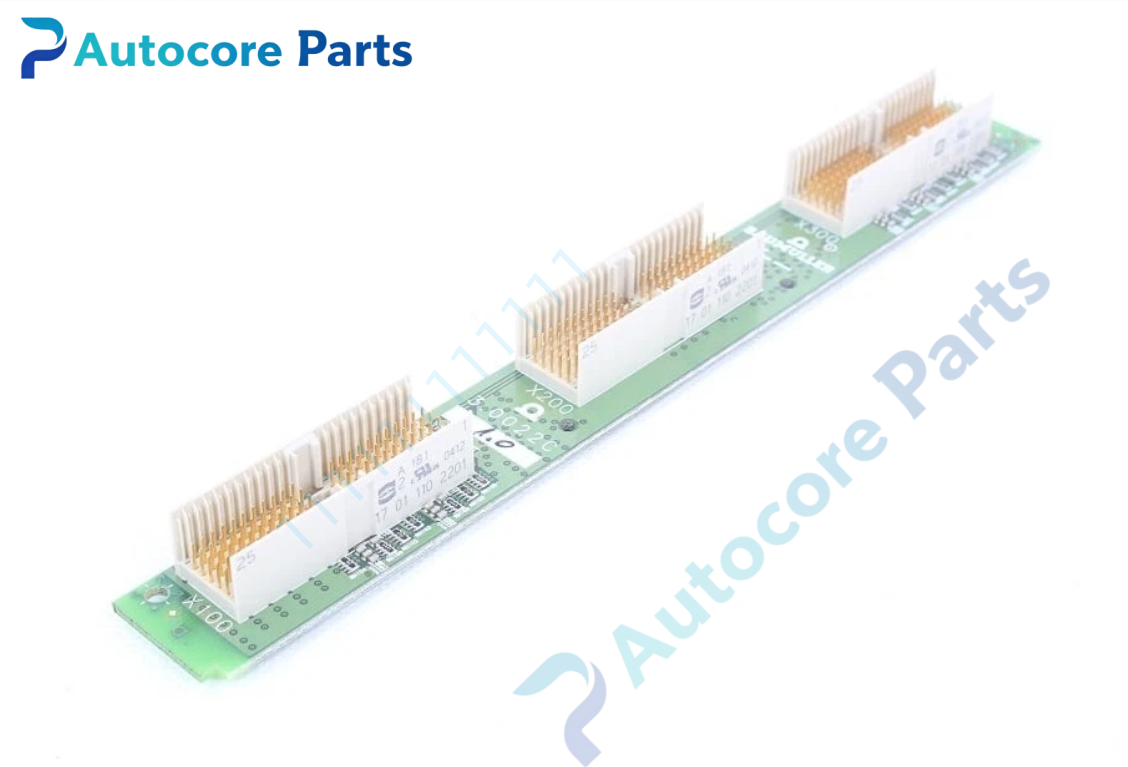

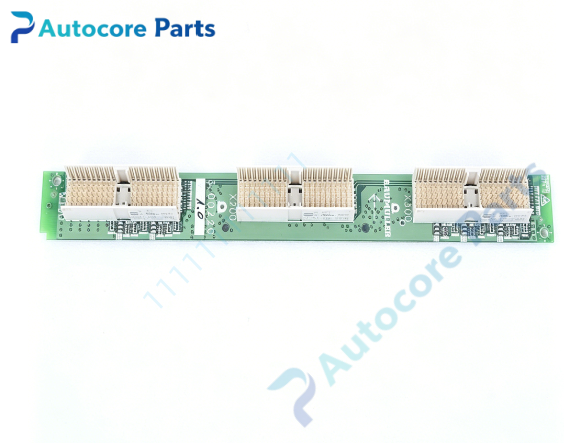

External signal terminal block, internal gold finger header, status LED indicators for 3.0022C BAUMULLER interface board.

Feature

Original Baumüller interface circuit board, signal isolation design, anti-interference performance, compact built-in drive layout, supports analog and digital signal transmission. This legacy spare part used for old BAUMULLER servo drive signal interface maintenance and replacement.

Diagnostic

Drive no command input after replacement: check external signal wiring and board pin definition for 3.0022C. Drive cannot send status signal: inspect internal connector and soldering joints. Intermittent signal drift: verify shielding cable and grounding condition.

Product Brief

3.0022C is German BAUMULLER signal interface PCB for b maXX servo drives. It transfers external control setpoints and drive status signals, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
