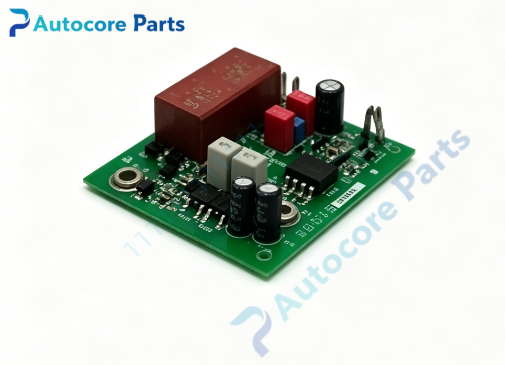

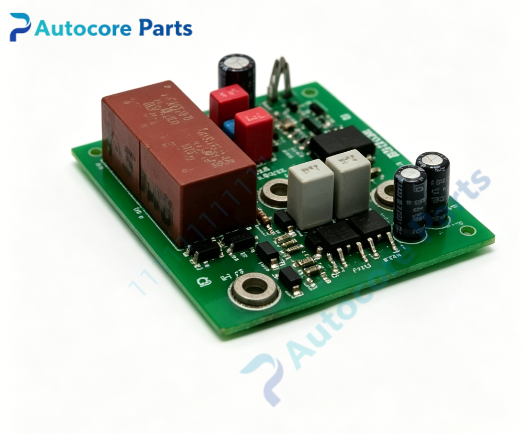

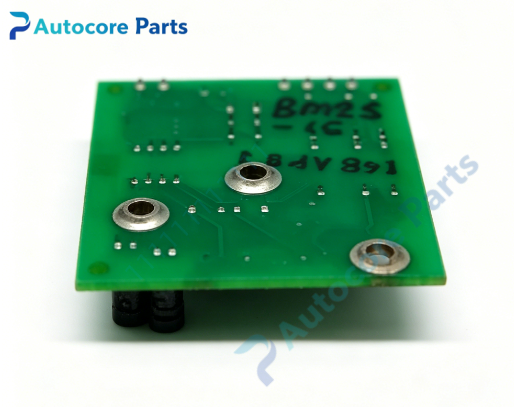

BAUMULLER 3.0007B Servo Drive Filter Circuit Board

Technical Specifications

Model: 3.0007B Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Signal Filter Printed Circuit Board Mounting: Installed inside BAUMULLER servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0007B is compatible with BAUMULLER b maXX series servo drives. It is applied to printing, plastic extrusion, textile and metal forming machinery drive systems for component replacement during overhaul.

Function

3.0007B filter PCB is an internal auxiliary board for Baumüller servo drive. It filters high-frequency noise on power and signal lines inside the drive, reduces electromagnetic interference, stabilizes encoder feedback and power supply signals. It protects main control and power stage boards from noise disturbance. It is used to replace damaged filter boards in drive maintenance.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing, fully discharge DC bus capacitors. Remove old filter board, install 3.0007B and fasten mounting screws. Reconnect all signal and power connectors. Check continuity, power on and test drive and motor operation before formal production.

Interface

Internal power input header, signal filtering terminals, ground connection pins for 3.0007B BAUMULLER filter board.

Feature

Original Baumüller filter circuit board, built-in EMC suppression components, compact internal installation layout, good anti-interference performance, industrial grade design. This legacy spare part is used for on-site maintenance of old BAUMULLER servo drive systems.

Diagnostic

Intermittent drive alarms after replacement: check ground wiring and connector contact for 3.0007B. Unstable feedback signals: inspect filter circuit and shielding continuity. Random noise disturbance: verify grounding quality of the whole drive cabinet.

Product Brief

3.0007B is German BAUMULLER signal filter PCB for servo drives. It eliminates high-frequency interference inside the drive unit, classic spare part for legacy BAUMULLER servo drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
