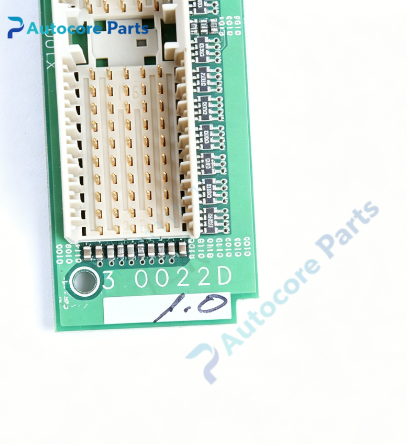

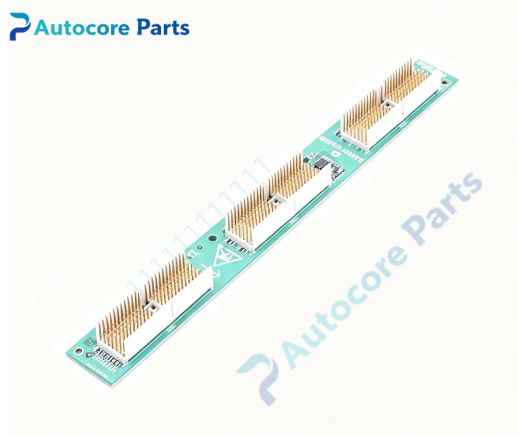

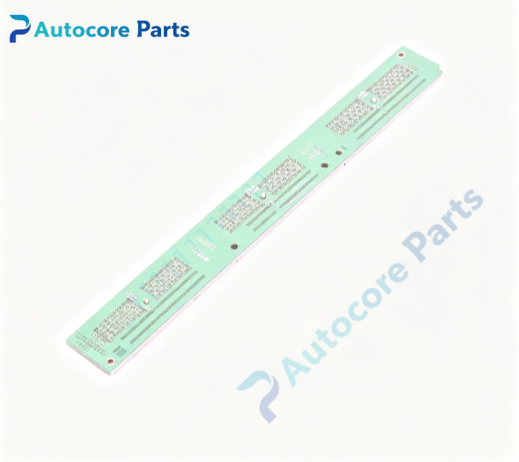

BAUMULLER 3.0022D1.0 Main Control Circuit Board

Technical Specifications

Model: 3.0022D1.0 (alternate marking: 30022D10) Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0022D1.0 is a mainboard for BAUMULLER b maXX servo drives. It works with matched power stage boards, widely used in printing, plastic extrusion, textile and metal forming machine drive systems for repair replacement.

Function

3.0022D1.0 is the core control PCB inside Baumüller servo drive. It executes closed-loop motion control algorithms, processes encoder/resolver feedback signals, generates PWM pulse commands for power module. It also manages parameter storage, bus communication and comprehensive fault diagnosis. It is used to replace defective mainboards during drive overhaul.

Installation

Disconnect all high voltage power before operation. Open servo drive casing and fully discharge DC bus capacitors. Remove old mainboard, install 3.0022D1.0 and secure mounting screws. Reconnect internal ribbon cables and external signal connectors. Verify pin assignment, power on and run full motor test before formal production.

Interface

Internal bus gold finger connector, encoder feedback port, PWM signal header, status LED indicators for 3.0022D1.0 BAUMULLER main control board.

Feature

Original Baumüller main control board, high-speed motion calculation, built-in multi-protection logic, anti-vibration soldering process, EMC noise suppression design. This legacy spare part used for field maintenance of old BAUMULLER b maXX servo drive systems.

Diagnostic

Drive cannot start after replacement: check board power supply and gold finger contact for 3.0022D1.0. Positioning deviation: confirm encoder wiring and parameter download. Random fault alarms: inspect solder joints and adjacent component aging.

Product Brief

3.0022D1.0 is German BAUMULLER main control PCB for b maXX servo drives. It computes motion control and processes feedback signals for servo positioning, classic spare part for legacy BAUMULLER machine drive overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
