Allied‑Signal 06848 441794 Fuel Control Assembly Unit

Module Feature

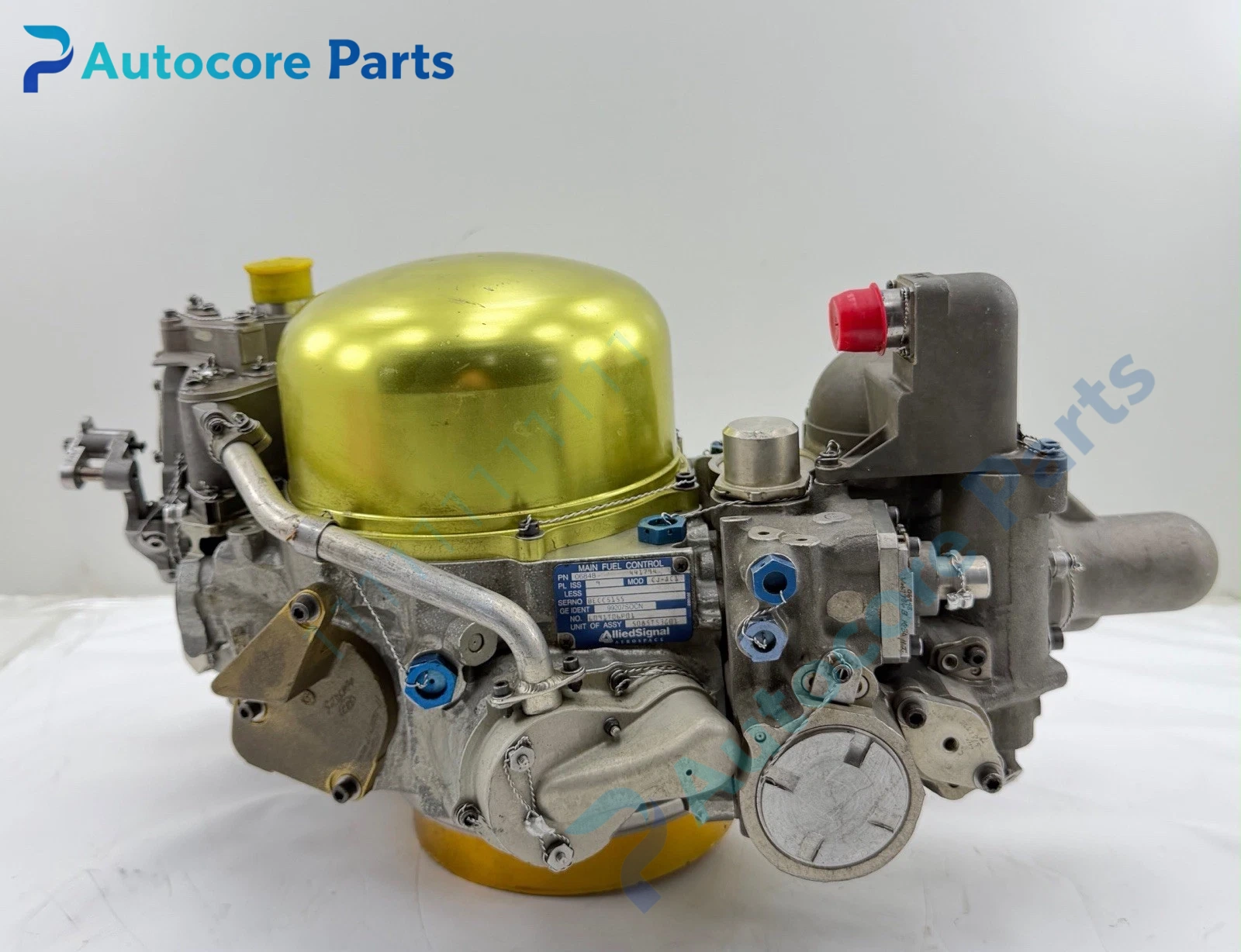

06848 441794 is Allied‑Signal main fuel control assembly, model CJ‑ACL aviation fuel control unit. It is an aircraft engine core hydraulic‑mechanical fuel metering component. The commodity status is "as‑is", belongs to second‑hand aerospace spare part, no performance guarantee.

Working principle

Realize mechanical‑hydraulic closed‑loop adjustment according to engine rotor speed, pressure and temperature signal. Accurately measure and supply fuel flow to the aero‑engine combustion chamber, maintain stable engine operating state under different flight conditions.

Onboard components

Fuel metering valve assembly, pressure compensating mechanism, hydraulic servo piston, spring diaphragm unit, fuel inlet‑outlet port, mechanical adjustment screw, aluminum alloy housing.

LED indicators

No onboard LED indicators. Working condition is judged by engine parameter data of aircraft host system.

Hardware self‑diagnosis

Detect fuel flow deviation, pressure loss, internal leakage, stuck valve element through aircraft engine monitoring system; disassembly inspection for internal component wear.

Programming software

No configuration software, pure mechanical‑hydraulic fuel control component.

Electrical & Process Parameters

Model:06848 441794 Brand:Allied‑Signal Device type:Aircraft Main Fuel Control Unit Model variant:CJ‑ACL Function:Aero‑engine fuel metering and regulation

Mechanical & Structure

Mounting:Engine case surface mounting Protection class:Aerospace mechanical assembly Housing:High‑strength aluminum alloy housing

Environmental

Operating environment:Aero‑engine peripheral aviation environment Storage temperature:-55℃ ~ +120℃ Ambient humidity:5~95% non‑condensing Status:Second‑hand aerospace spare part, as‑is supply

Installation

Mount on aero‑engine casing, connect fuel pipeline interfaces, fasten mechanical mounting bolts, complete engine fuel system test run after replacement.

Interface

Multiple fuel fluid ports, engine mechanical drive interface, mounting flange.

Diagnostic

Engine speed unstable:Valve element jam or internal spring fatigue. Fuel supply insufficient:Metering component wear. Fuel external leakage:Seal ring aging damage.

Product Brief

Allied‑Signal 06848 441794 CJ‑ACL aircraft main fuel control assembly, mechanical‑hydraulic fuel regulating spare part for aero‑engine, supplied as‑is second‑hand aerospace component.
