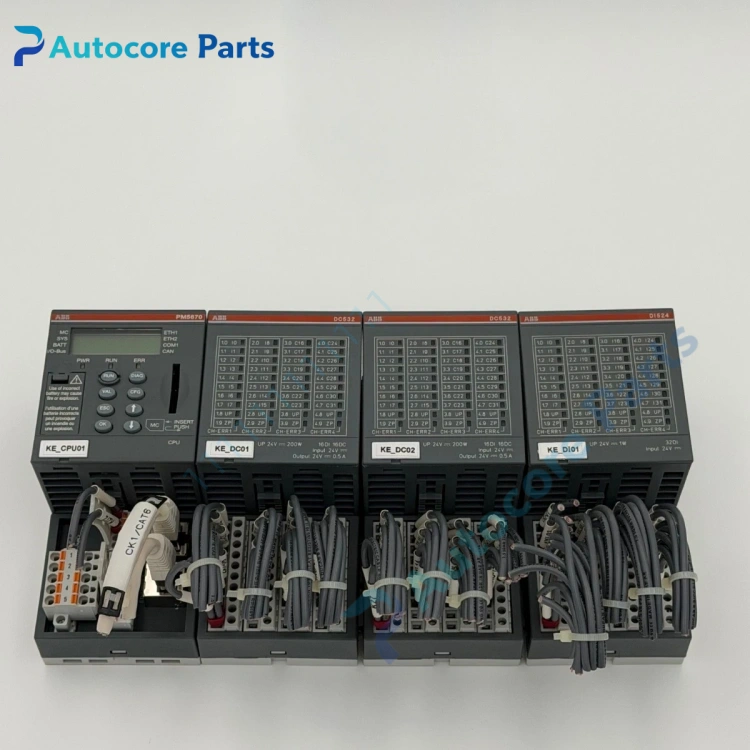

ABB 1SAP151000R0278 PM5670-2ETH AC500 CPU Unit

Feature & Principle

It executes IEC 61131-3 control programs, collects signals from I/O modules and communicates with HMI and upper SCADA system. Dual independent Ethernet ports support Modbus TCP, web server and IEC 60870-5-104, CAN and serial ports connect to field devices.

Specifications

Model: 1SAP151000R0278 (PM5670-2ETH) Brand: ABB Memory: 160MB Power supply: DC24V Interfaces: 2×Ethernet, RS232/485, CAN, SD card slot Display: Built-in LCD Status: Classic, replaced by 1SAP151000R0378 Mounting: AC500 rack plug-in Certification: CE, UL

Components & Diagnostics

Main processor board, communication chipset, display unit, memory card socket, backplane connector and status LED. Common faults: program download failure, Ethernet disconnection, SD card recognition error, power supply abnormal.

Product Brief

1SAP151000R0278 CPU module, ABB AC500 automation spare widely used for water treatment, energy and factory production line control cabinet.
