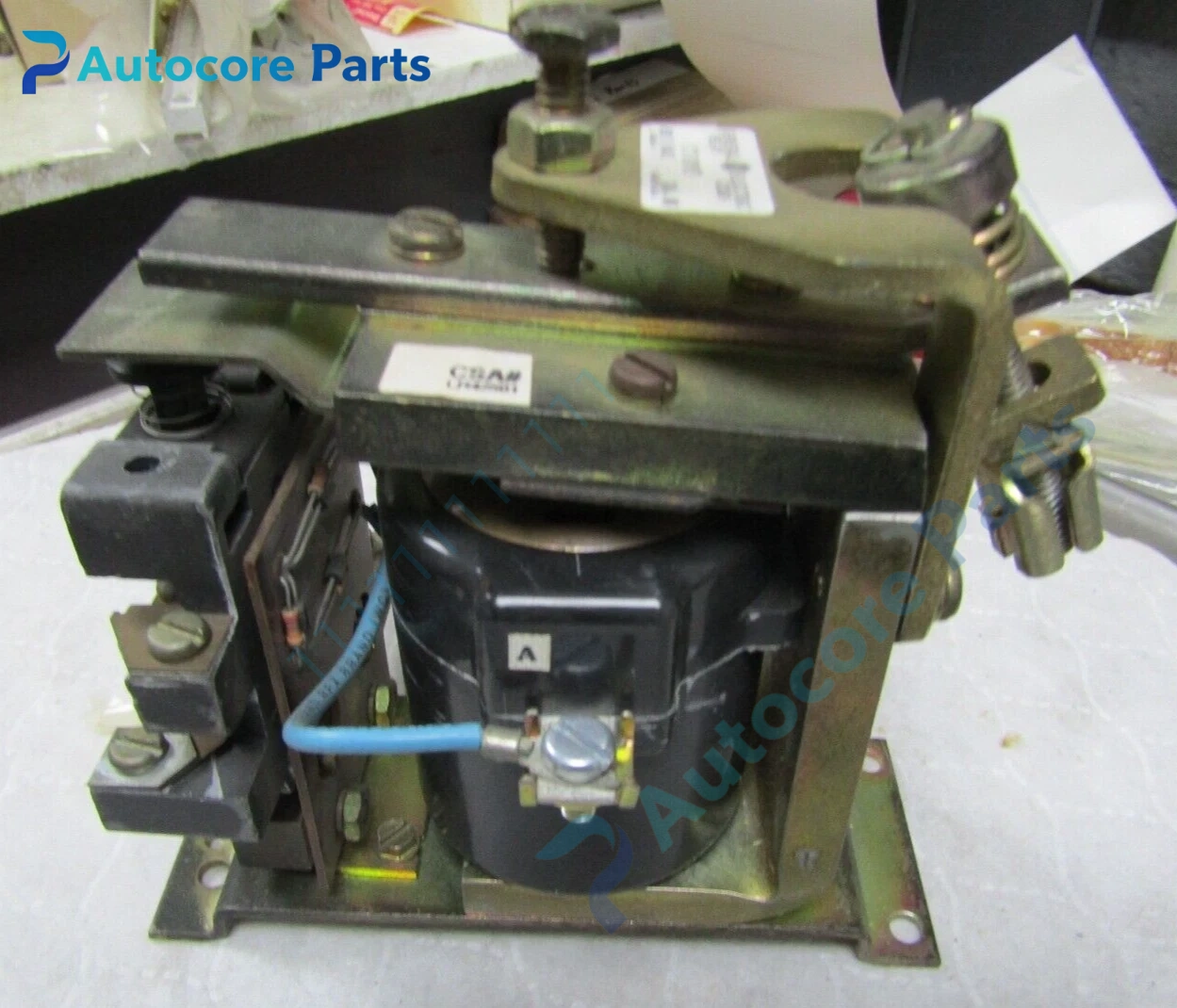

22D11G25A General Electric Solenoid Coil Unit

Module Feature

22D11G25A is a General Electric cylindrical DC solenoid control coil, designed as the electromagnetic driving component for GE series contactors and motor starters. When DC voltage is applied, the coil generates magnetic force to pull the movable iron core, realizing mechanical switching of the contactor main contacts. It adopts high-temperature resistant enameled wire winding, stable magnetic performance and strong anti-vibration capability, suitable for long-term continuous operation in industrial control cabinets. This model is a discontinued original GE spare part, widely applied in motor control circuits, power distribution systems and heavy industry motor starter equipment.

Working principle

After applying 230~250VDC control voltage to the coil terminals, current flows through enameled winding to produce electromagnetic field. The magnetic attraction drives the movable armature to move, which mechanically pushes the contactor contact assembly to close or open. When the control power is cut off, magnetic force disappears, and spring resets the armature to restore the original contact state.

Onboard components

Enameled copper winding, cylindrical coil bobbin, insulation encapsulation material, magnetic core assembly, two control terminal lugs, outer protective housing.

LED indicators

No LED indicators.

Hardware self-diagnosis

Winding open circuit, winding short circuit, insulation breakdown, coil overheating detection, resistance measurement for coil health inspection.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:22D11G25A Brand:General Electric Device type:Contactor Solenoid Control Coil Rated voltage:230/250VDC Structure:Cylinder style Protection:Overheat, winding short circuit, open circuit

Mechanical & Structure

Mounting:Installed inside GE contactor/motor starter Protection class:IP00 Housing:Insulation encapsulated cylinder structure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL compliant Status: General Electric original discontinued DC control coil for contactor

Installation

Cut off all control and main power before replacement. Install coil into the matched GE contactor or motor starter cavity, align the magnetic core assembly correctly. Connect DC control wires to coil terminal lugs, fix wiring securely. Power on and test contactor pull-in action after assembly.

Interface

DC control terminal lugs.

Diagnostic

Contactor fails to pull in: coil open circuit or wrong control voltage. Coil overheat and burnout: winding short circuit or mechanical armature jamming. Intermittent action: loose wiring or coil insulation aging.

Product Brief

22D11G25A General Electric cylindrical DC solenoid control coil, rated 230/250VDC, spare part for GE contactor and motor starter electromagnetic drive.
