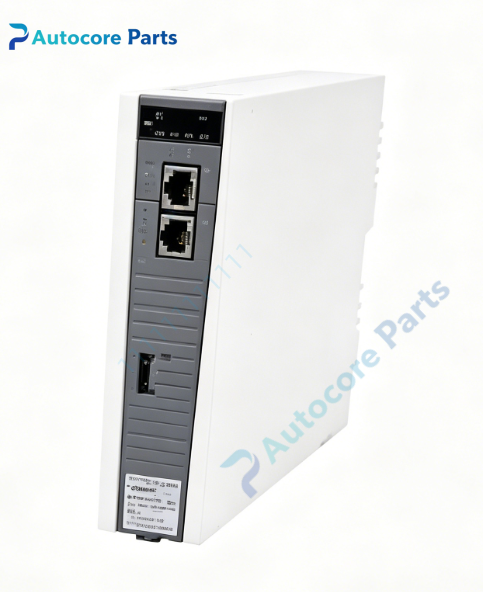

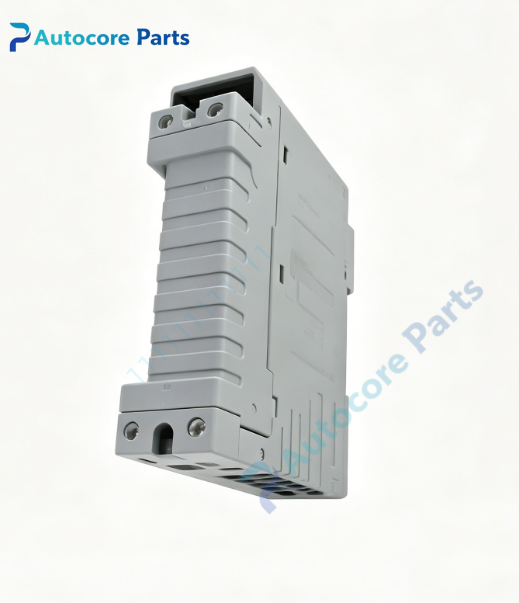

Yokogawa CP451-50 Processor Module

Technical Specifications

Model:CP451-50

Brand:Yokogawa

CPU:32-bit RISC real-time processor

Memory:64MB RAM,32MB Flash

Control cycle:10ms ~10s configurable

Max control loops:2048

Max I/O points:8192

Communication port:Dual Vnet/IP Ethernet ports,RS232C service port

Redundancy:1:1 hot standby redundant support,bumpless switchover

Power supply:24V DC,20.4~26.4V DC

Max power consumption:20W

Suffix -50:Standard version,without explosion protection

Operating temperature:0~+50℃

Relative humidity:5~95% non-condensing

Weight:0.75kg

Certification:CE,UL

System compatibility

Designed for Yokogawa CENTUM VP and CENTUM CS3000 DCS,installed in AFV30S single FCS or AFV30D dual redundant FCS field control station,cooperates with FIO/N-IO I/O modules,widely used in petrochemical,power,chemical refining process control.

Function

CP451-50 is the core processor module of FCS field control station.It executes real-time PID control,interlock logic,sequence batch control,alarm management and historical data collection.It communicates with HIS operator station,engineering station and remote I/O modules via Vnet/IP bus.Dual CP451-50 can form redundant configuration,standby module synchronizes data in real-time,switch over without disturbance when main CPU fails.The -50 suffix represents standard non-ex-proof model for ordinary industrial areas.

Installation

Install on FCS chassis backplane slot,connect Vnet/IP network cable to dual Ethernet ports,configure control strategy and redundancy parameters via CENTUM VP engineering software.Hot swap supported under redundant configuration.

Interface

‑Dual Vnet/IP RJ45 ethernet ports

‑RS232C service debug port

‑Internal ESB bus backplane connector

‑LED indicators for run,standby,alarm and fault status

Circuit feature

ECC error correction memory,watchdog circuit,continuous hardware self-diagnosis,galvanic isolation on network ports,strong anti-electromagnetic interference,stable for continuous long-term operation.

Feature

CP451-50 belongs to Yokogawa CENTUM VP FCS processor series.Suffix -50 is standard version without explosion protection.Common faults:battery aging,network port damage,memory failure,backplane poor contact.Confirm firmware version before replacement.

Diagnostic

CPU error,memory fault,communication link loss or module hardware fault triggers alarm and upload diagnostic information to DCS HIS station.

Built‑in function

Real-time process control,logic interlock,alarm processing and system communication management for DCS field control station,used for industrial DCS spare replacement.

Product Brief

CP451-50 is Yokogawa CENTUM VP / CS3000 FCS 32-bit RISC processor module,standard non-ex-proof version,supports 1:1 hot standby bumpless switchover.Check FCS chassis model and system firmware compatibility before ordering.ESD anti-static protection required during installation.
