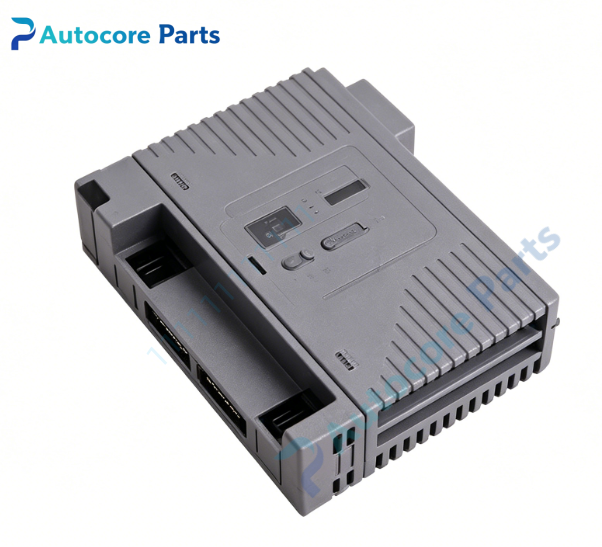

Yokogawa AVR10D-Q22020 V-Net Router Module

Technical Specifications

Model:AVR10D-Q22020

Brand:Yokogawa

Network interface:Dual V-Net ports

Redundancy:1:1 hot redundant support

Transmission rate:10Mbps

Network topology:Bus topology

Max station per segment:64 nodes

Power supply:24V DC

Power consumption:Max 18W

Isolation:Galvanic isolation between V-Net and internal circuit

Operating temperature:0~+55℃

Relative humidity:5~95% non-condensing

Weight:0.55kg

Certification:CE

System compatibility

Designed for Yokogawa CENTUM VP DCS system,used for V-Net network routing and cross-segment communication between different control segments,widely used in petrochemical,power,chemical refining process control.

Function

AVR10D-Q22020 is V-Net router module for CENTUM VP DCS.It forwards V-Net data packets between different network segments,realizes interconnection of multi-segment V-Net control network.Dual port redundant design ensures network continuous operation when single channel fails.Network parameters can be configured via CENTUM VP engineering software.

Installation

Install in FCS or HIS node unit slot,connect V-Net coaxial cable to each port,configure network segment address by CENTUM VP engineering software.Hot swap supported.

Interface

‑Dual V-Net coaxial connectors

‑Internal backplane bus connector

‑LED indicators for run,network link and fault status

Circuit feature

Dual redundant channel design,galvanic isolation,anti-electromagnetic interference,built-in network self-diagnosis,guarantee stable control network transmission.

Feature

AVR10D-Q22020 belongs to Yokogawa CENTUM VP V-Net router series module.Common faults:coaxial connector poor contact,cable aging,network chip damage.Confirm firmware version before replacement.

Diagnostic

Link loss,communication timeout or module hardware fault triggers alarm and upload diagnostic information to DCS controller.

Built‑in function

Realize cross-segment routing for V-Net control network,ensure reliable data interaction between DCS stations,used for industrial DCS spare replacement.

Product Brief

AVR10D-Q22020 is Yokogawa CENTUM VP dual redundant V-Net router module for multi-segment V-Net interconnection.Check system hardware compatibility before ordering.ESD anti-static protection required during installation.
