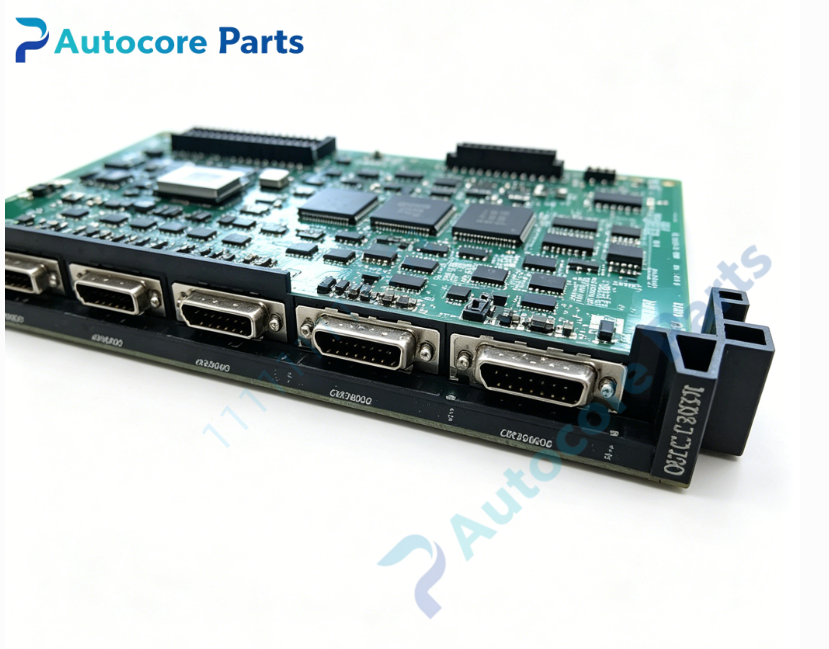

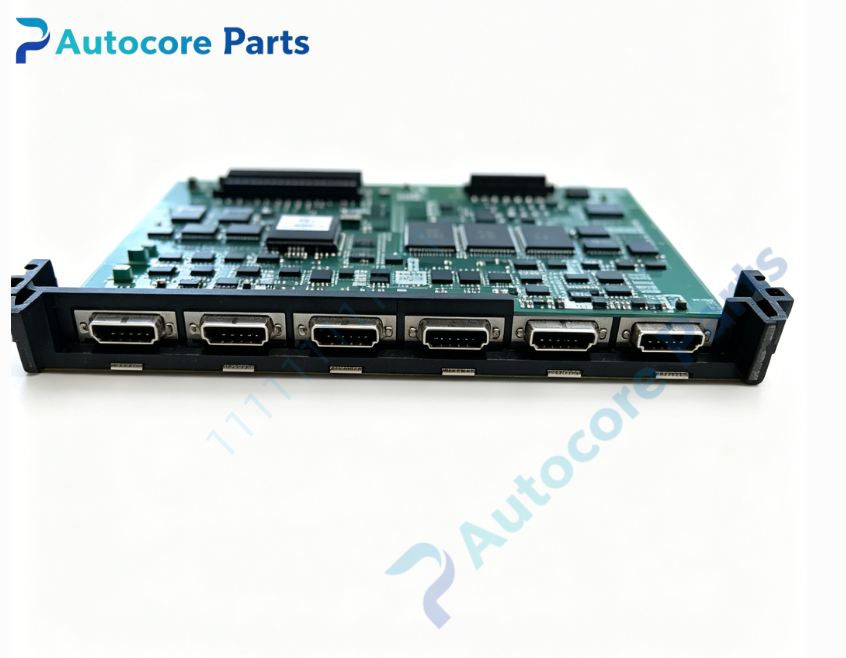

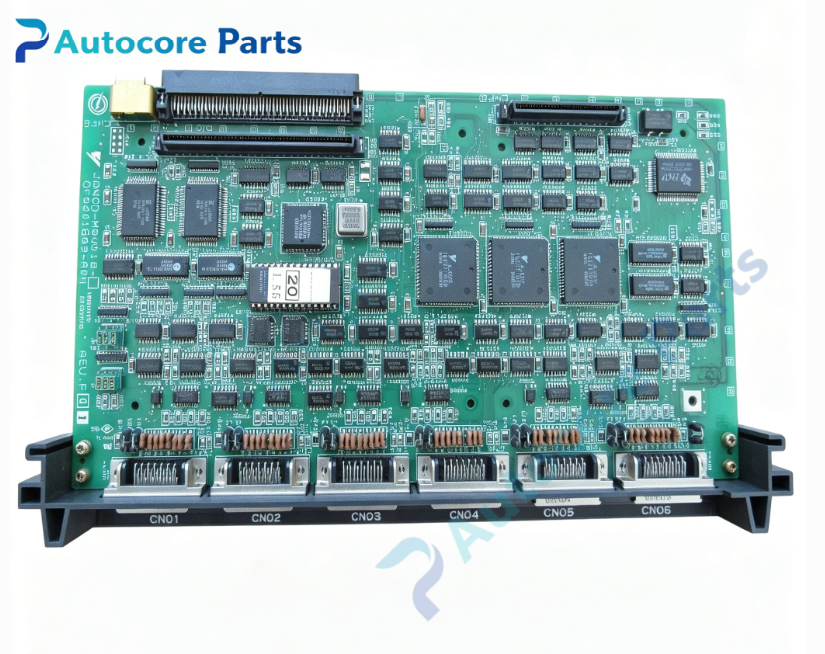

Yaskawa DF9201893-A0N Servo Control Board

Technical Specifications

Model:DF9201893-A0N (JANCD-MSV01B)

Brand:Yaskawa

Product type:Robot servo signal processing PCB board

Power supply:DC24V

Control function:Real-time servo command distribution,multi-axis encoder feedback signal acquisition,position data decoding and signal conversion

Communication:Robot backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.59kg

Certification:CE

System compatibility

DF9201893-A0N belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR series servo drives. Widely used in Motoman welding robots,material handling robots and precision automation equipment. This is a discontinued legacy servo interface board for old production line maintenance spare replacement.

Function

DF9201893-A0N serves as high precision robot servo control board. It receives motion trajectory commands from robot main CPU board and distributes real-time servo instructions to each axis servo amplifier. It collects encoder position and speed feedback signals,decodes and transmits position data back to main controller. Built-in surge and ESD protection circuit to stabilize servo signal transmission. It guarantees smooth synchronous motion of multiple robot axes.

Installation

Mount DF9201893-A0N inside robot controller cabinet. Complete backplane bus and encoder feedback wiring according to wiring drawing. Backup robot parameters before replacement,verify servo communication and axis position reading after power on.

Interface

‑Robot backplane bus connector

‑Multi-channel encoder feedback port

‑Servo command output connector

‑Onboard signal decoding and isolation circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast signal decoding response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9201893-A0N is obsolete Yaskawa MRC robot series spare part. Typical failures include encoder port pin damage,signal distortion,servo bus communication dropout. Check board integrity and connector pin condition before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without axis calibration is not recommended.

Diagnostic

When servo signal interruption,position feedback anomaly or hardware timeout occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller and teach pendant.

Built‑in function

Multi-axis servo command distribution,encoder position signal decoding,signal noise filtering,servo communication fault monitoring,used as robot servo signal processing board spare replacement.

Product Brief

DF9201893-A0N (JANCD-MSV01B) is Yaskawa MRC robot series servo signal control board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
