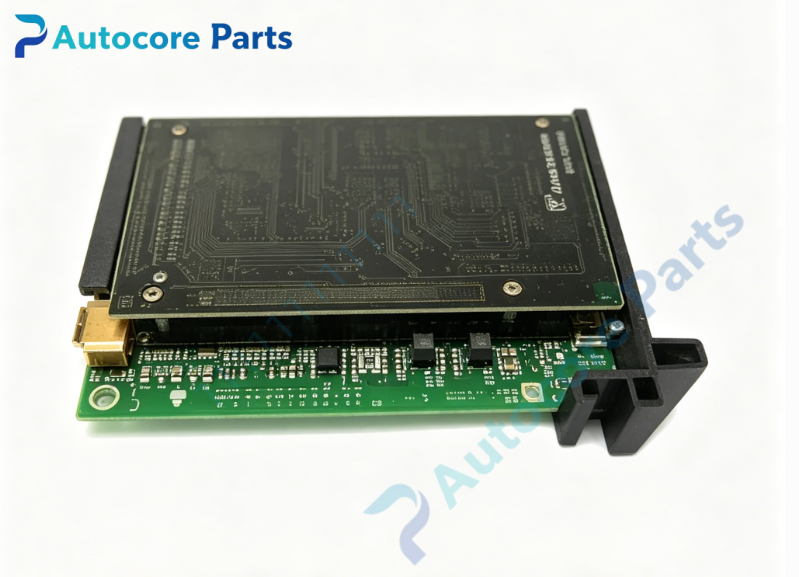

Yaskawa DF9201893-A0 Servo Control Board

Technical Specifications

Model:DF9201893-A0 (JANCD-MSV01B)

Brand:Yaskawa

Product type:Robot servo signal processing PCB board

Power supply:DC24V

Control function:Real-time servo command distribution,multi-axis encoder position signal acquisition,position data decoding and signal conversion

Communication:Robot backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.59kg

Certification:CE

System compatibility

DF9201893-A0 belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR series servo drives. Widely used in Motoman welding robots,material handling robots and precision automation equipment. This is a discontinued legacy servo signal board for old production line maintenance spare replacement.

Function

DF9201893-A0 serves as high precision robot servo control board. It receives motion instructions from robot main CPU board and distributes servo commands to each axis servo amplifier. It collects and decodes encoder feedback signals to acquire real-time axis position and speed data. Built-in surge and ESD protection circuit to stabilize servo signal transmission. It guarantees smooth synchronous motion control of robot multiple axes.

Installation

Mount DF9201893-A0 inside robot controller cabinet. Complete backplane bus and encoder feedback wiring according to wiring drawing. Backup robot parameters before replacement,verify servo communication and axis position reading after power on.

Interface

‑Multi-channel encoder signal input connector

‑Robot backplane bus connector

‑Servo command output port

‑Onboard signal decoding and isolation circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast signal decoding,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9201893-A0 is obsolete Yaskawa MRC robot series spare part. Typical failures include encoder port pin damage,servo communication dropout,position reading anomaly. Check board integrity and connector pins before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without servo calibration is not recommended.

Diagnostic

When servo signal interruption,position feedback error or hardware timeout occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller and teach pendant.

Built‑in function

Multi-axis servo command distribution,encoder position signal decoding,signal noise filtering,servo communication fault monitoring,used as robot servo signal processing board spare replacement.

Product Brief

DF9201893-A0 (JANCD-MSV01B) is Yaskawa MRC robot series servo signal control board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
