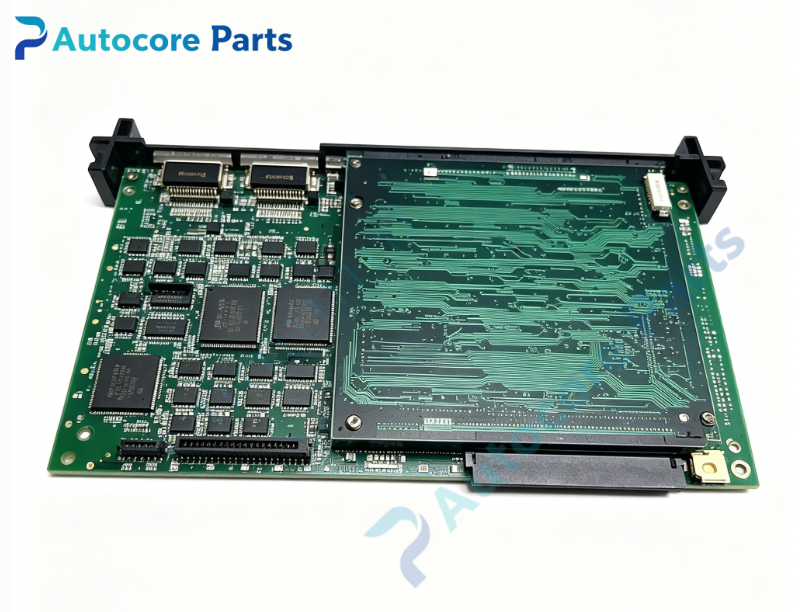

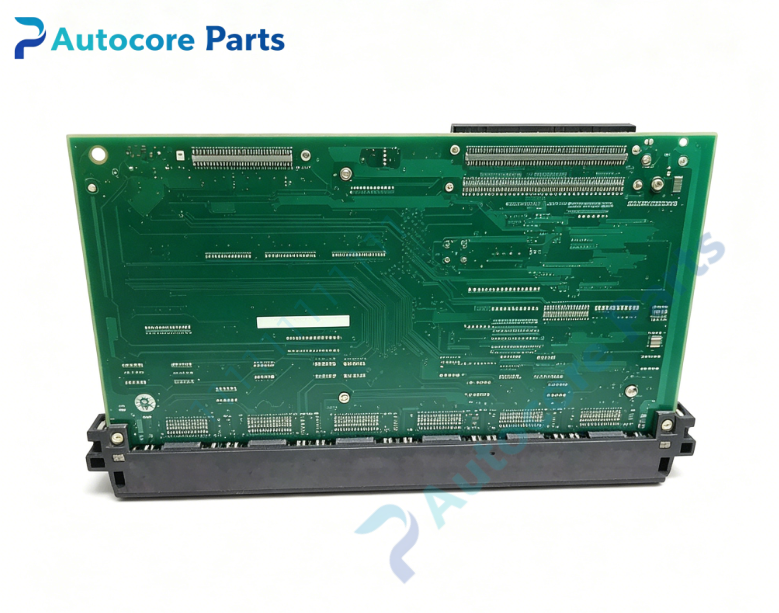

Yaskawa DF9200662-D0 Servo Interface Board

Technical Specifications

Model:DF9200662-D0 (JANCD-MSV01-2)

Brand:Yaskawa

Product type:Robot servo signal interface PCB board

Power supply:DC24V

Control function:Servo command forwarding,encoder feedback signal processing,servo signal isolation conversion

Communication:Robot backplane bus, Mechatrolink bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.57kg

Certification:CE

System compatibility

DF9200662-D0 belongs to Yaskawa legacy robot MRC controller family,matched with Yaskawa MRC robot controllers and CACR-SR series servo drives. Widely used in welding robots,handling robots and special automation equipment. This is a discontinued legacy servo interface board for old production line maintenance spare replacement.

Function

DF9200662-D0 serves as high precision robot servo interface board. It transmits motion commands from robot main control board to each servo amplifier,receives encoder feedback signals and feeds back to CPU. Built-in signal isolation protection to suppress interference on servo signal lines. It ensures synchronous high-speed signal transmission between robot controller and servo units.

Installation

Mount DF9200662-D0 inside robot controller cabinet. Complete backplane bus and servo feedback wiring according to wiring drawing. Verify servo axis communication after power-up.

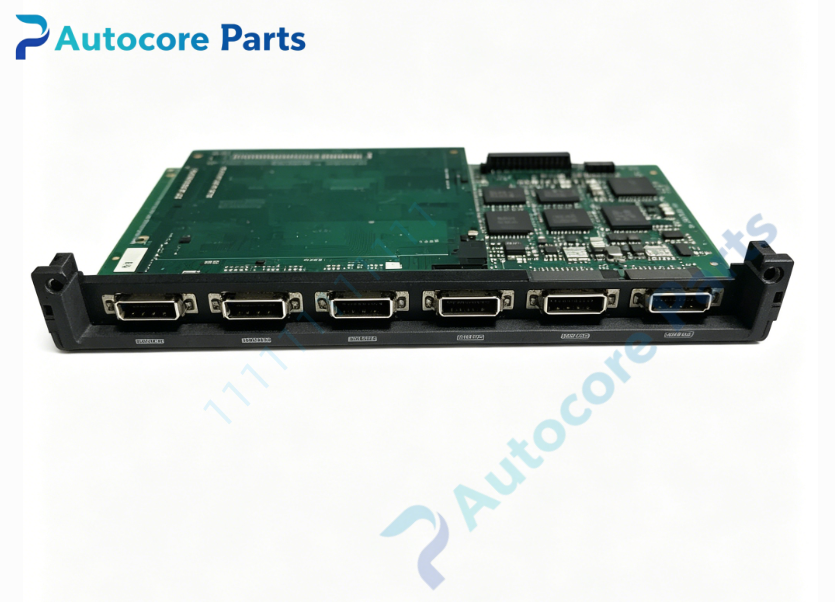

Interface

‑Robot backplane bus connector

‑Multi-channel servo encoder feedback port

‑Mechatrolink signal interface

‑Onboard signal isolation and conditioning circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Fast servo signal response,strong anti-interference performance for industrial cabinet environment. Standard factory firmware preloaded.

Feature

DF9200662-D0 is obsolete Yaskawa MRC robot series spare part. Typical failures include signal distortion,encoder port damage,servo communication dropout. Check board integrity and connector condition before replacement. This board must match corresponding Yaskawa MRC robot controller,direct substitution without axis communication test is not recommended.

Diagnostic

When servo signal interruption,feedback signal abnormality or bus communication fault occurs,the board triggers corresponding alarm codes and sends fault signal to robot main controller.

Built‑in function

Servo command distribution,encoder feedback signal processing,signal isolation protection,servo link fault monitoring,used as robot servo signal interface board spare replacement.

Product Brief

DF9200662-D0 (JANCD-MSV01-2) is Yaskawa MRC robot series servo signal interface board for industrial robot and precision automation machinery. Confirm robot controller model matching before ordering. ESD protection required during handling and installation.
