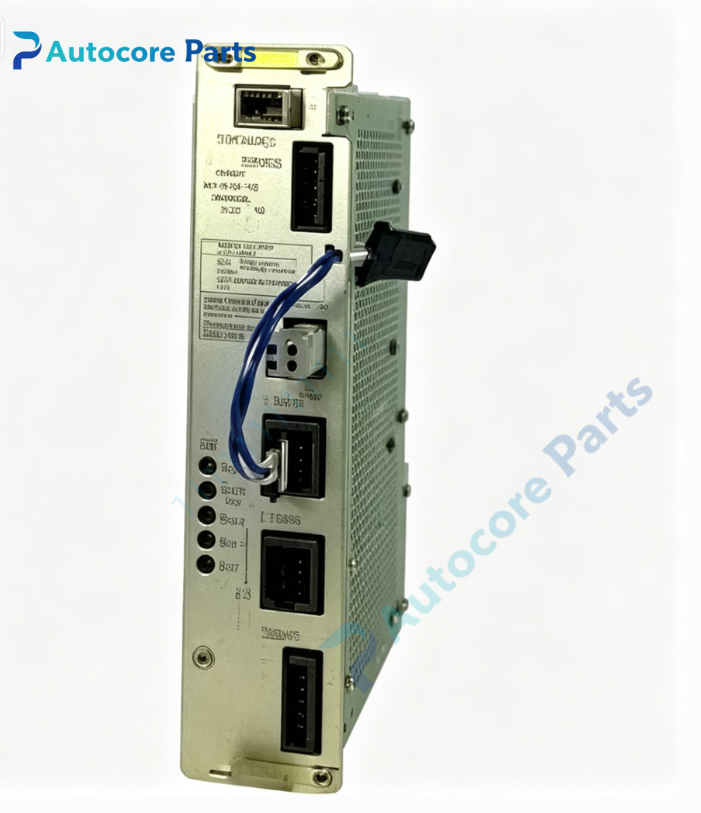

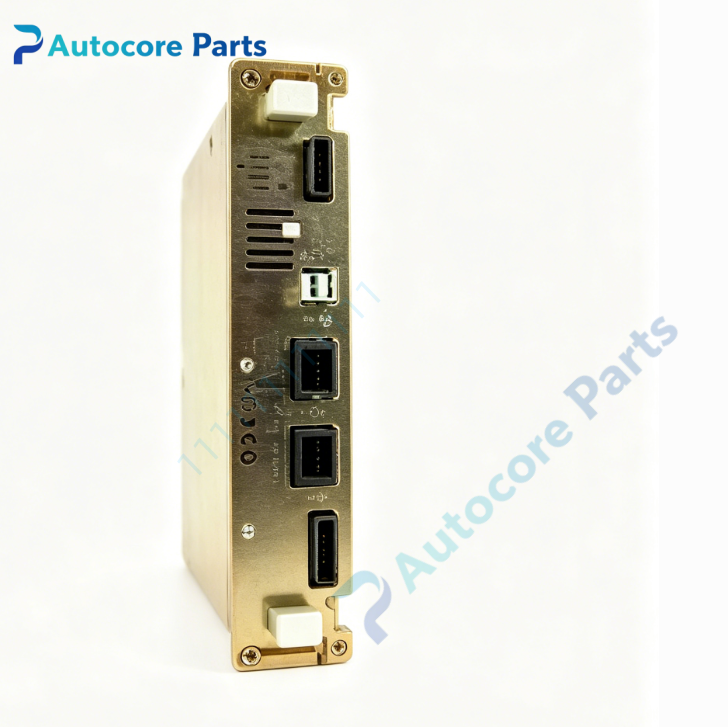

Yaskawa CPS-150F Power Supply Unit

Technical Specifications

Model:CPS-150F

Brand:Yaskawa

Product type:Robot controller rack mount power supply module

Input voltage:AC200-230V,50/60Hz

Output:DC5V 10A,DC24V 4A

Cooling:natural air cooling

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:1.0kg

Certification:CE

System compatibility

CPS-150F belongs to Yaskawa Motoman robot control system family,matched with XRC,NX100 robot controller racks. Widely used in semiconductor equipment,automated production line and precision handling machinery. This is a discontinued legacy power supply unit for old production line maintenance spare replacement.

Function

CPS-150F serves as dedicated rack power supply for robot controller. It converts AC input into stable DC5V and DC24V power to supply main control board,I/O modules and teach pendant. Built-in multi-level hardware protection including overvoltage,overcurrent,short-circuit and overheat protection to guarantee stable system operation.

Installation

Mount CPS-150F in robot controller rack. Wire AC input and DC backplane connection according to wiring drawing. Complete power inspection before powering on the whole control system.

Interface

‑AC input terminal block

‑Backplane connector for DC power output

‑Front panel LED status indicators for power and fault alarm

‑Onboard power monitoring and protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable dual DC output,strong anti-interference performance for industrial cabinet environment.

Feature

CPS-150F is obsolete Yaskawa robot system spare part. Typical failures include power board damage,output loss and overheating faults. Check module integrity before replacement. Must match corresponding robot controller rack,direct substitution without hardware validation is not recommended.

Diagnostic

When overvoltage,overcurrent,overheat,DC output loss or short circuit occurs,the module triggers corresponding alarm LED and sends fault signal to upper controller.

Built‑in function

AC-DC dual channel power conversion,real-time power status monitoring,multi-level hardware fault protection,used as robot controller power supply spare replacement.

Product Brief

CPS-150F is Yaskawa robot rack power supply module for dedicated semiconductor and automation machinery. Confirm controller rack matching before ordering. ESD protection required during handling and installation.
