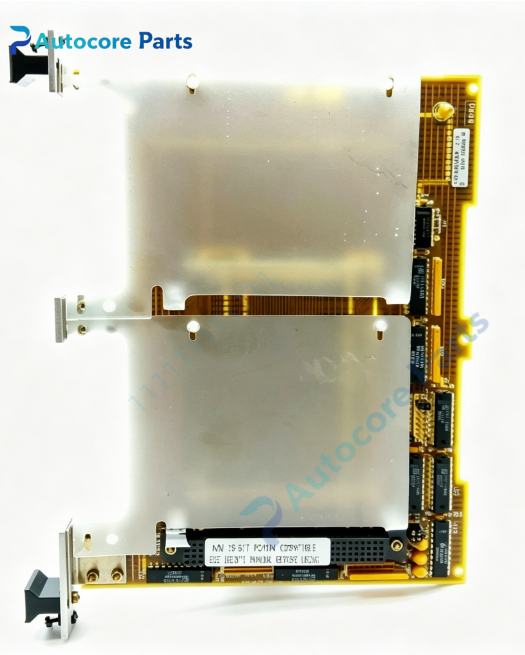

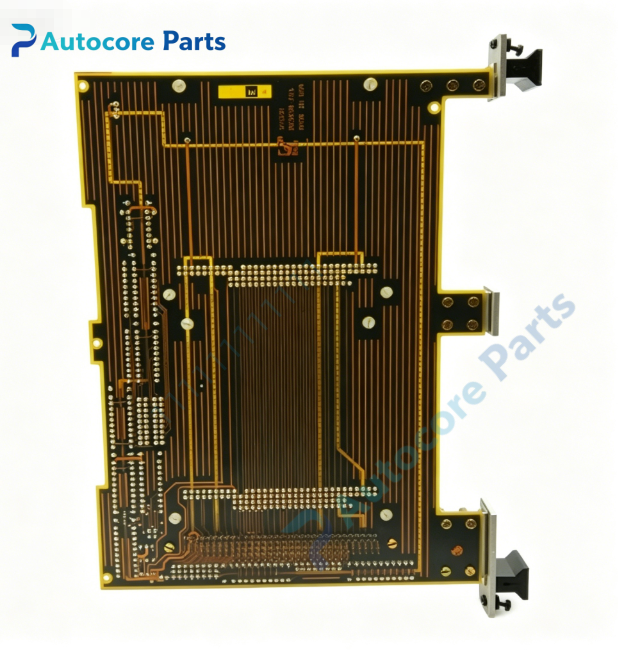

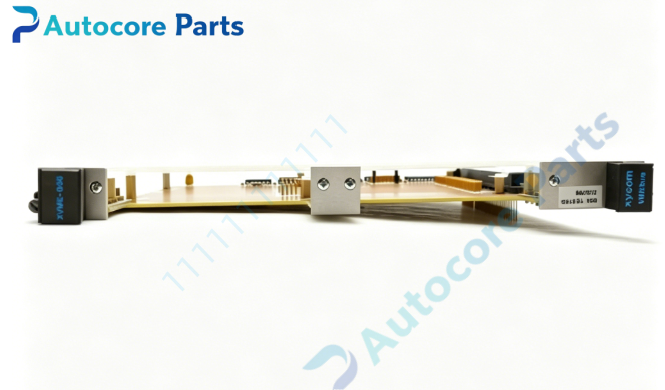

XYCOM XVME-956 I/O Expansion Carrier Module

Technical Specifications

Model:XVME-956

Brand:XYCOM

Product type:VMEbus PC/104 I/O Expansion Carrier Module

Power supply:+5V,+12V,-12V VME backplane power

Bus interface:Standard VMEbus slave interface,PC/AT local bus for PC104 daughter modules

Form factor:6U single-height VME card

Weight:0.78kg

Expansion:2×PC/104 daughter card mounting sites,compatible with XYCOM original submodules and third-party PC104 modules

Optional submodules:XVME-956/101 memory module,XVME-956/400 serial-parallel port module,XVME-956/402 SCSI adapter,XVME-956/411 Ethernet module

VME addressing:A16/A24/A32

Onboard indicator:LED status indicator,RESET switch

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-956 belongs to XYCOM XVME series I/O expansion carrier board.

It works together with XVME-67x,XVME-682,XVME-684,XVME-686 PC/AT VME CPU boards.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Act as peripheral expansion carrier for XYCOM XVME PC/AT VME CPU series.

Provides dual PC/104 expansion slots to install various daughter submodules.

Extend serial ports,parallel ports,SCSI storage,Ethernet or memory function according to installed submodule.

Realize signal transmission between VME backplane and PC/AT local bus.

Onboard power regulation circuit supplies stable power to PC104 daughter boards.

Support hardware reset for installed submodules.

Carrier and daughter card self-test,fault state displayed via LED indicator.

Installation

Power off VME chassis.

Insert XVME-956 card into empty 6U single-height VME slot,tighten front panel fixing screw.

Mount selected PC104 daughter modules onto the two expansion sites of XVME-956.

Set base address and interrupt via board jumpers.

Connect peripheral wiring on front panel.

Power on chassis,run hardware self-test with paired XVME PC/AT CPU board.

Interface

VME P1,P2 backplane connector,PC104 daughter card connectors,front panel peripheral port,LED indicators and reset switch.

Feature

6U single slot VME I/O carrier board,XYCOM XVME series.

Dual PC/104 expansion architecture,support multiple kinds of submodules.

Modular design,flexible function upgrade without extra VME slots.

Onboard power conditioning to stabilize power for daughter boards.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

LED alarm on:daughter card fault,address jumper error,bus signal failure or power supply abnormality;

Peripheral no response:check daughter card installation,jumper setting and cable connection;

VME communication failure:check backplane contact and address configuration.

Product Brief

XYCOM XVME-956 is legacy VMEbus 6U I/O expansion carrier module with dual PC/104 slots for XVME PC/AT CPU boards.

It supports flexible peripheral expansion,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
