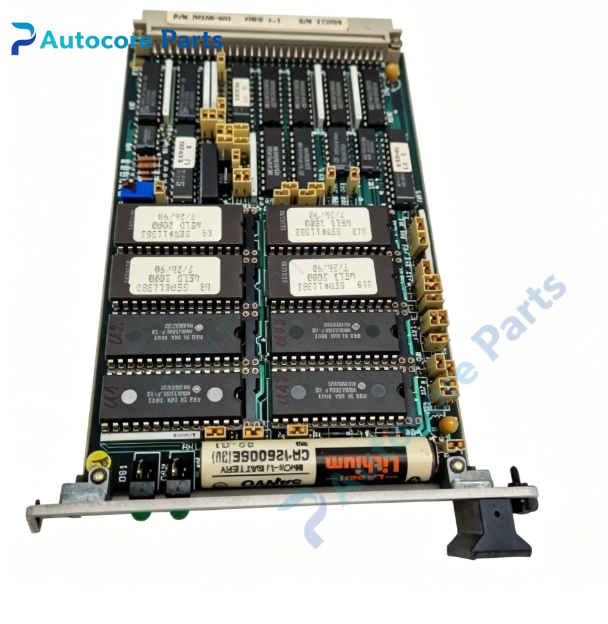

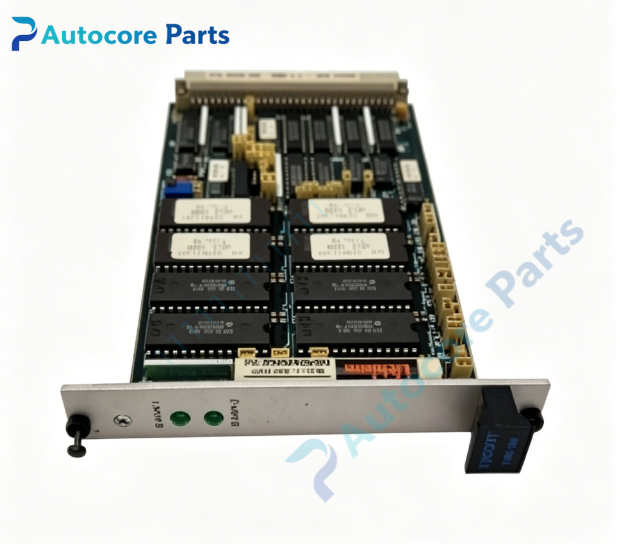

XYCOM XVME-100 RAM ROM Memory Module

Technical Specifications

Model:XVME-100

Brand:XYCOM

Product type:VMEbus RAM/ROM Memory Expansion Module

Power supply:+5V VME backplane power

Bus interface:Standard VMEbus,slave communication

Form factor:Single-height VME card

Weight:0.30kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-100 belongs to XYCOM XVME series memory module.

It installs in XYCOM VME chassis and cooperates with XVME series CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Storage expansion for XVME series VME controller.

Equipped with RAM and ROM storage,used to store control program,system firmware and process data.

High-speed data reading and writing through VME backplane bus.

Support multiple memory capacity configurations,flexible for different control requirements.

Onboard self-test for memory chip,data bus and VME bus interface fault inspection.

Installation

Power off VME chassis.

Insert XVME-100 card into empty VME slot,tighten front panel fixing screw.

Check backplane connection.

Power on chassis,run hardware self-test.

Controller identifies memory module and activate expanded memory space.

Interface

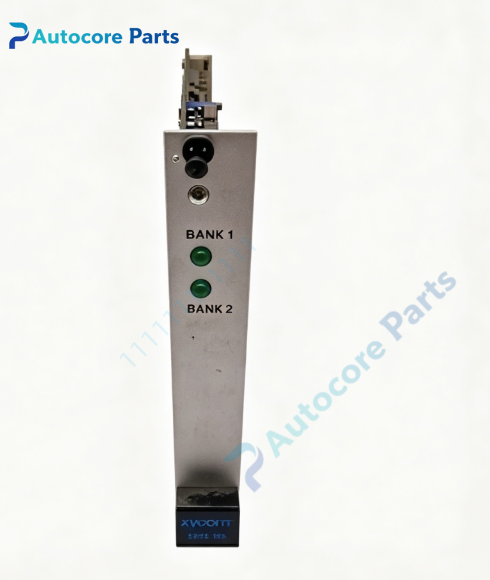

VME P1 backplane connector,LED indicators:PASS,FAULT.

Feature

Single height VME RAM/ROM memory board,XYCOM XVME series.

Support configurable memory capacity,match XVME CPU control system.

Industrial grade memory chips,stable data storage under vibration environment.

VME slave interface,easy plug-in installation.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:memory chip damage or bus communication failure;

Cannot be identified by CPU:check VME backplane contact and address jumper setting;

Data read-write abnormal:check board power supply and memory circuit.

Product Brief

XYCOM XVME-100 is legacy VMEbus RAM/ROM memory expansion module.

It expands program and data storage space for VME control rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
