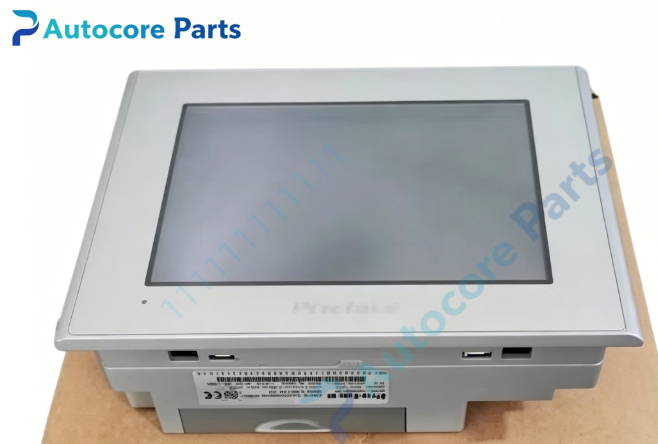

XYCOM GP2300-TC41-24V Industrial HMI Touch Panel

Technical Specifications

Model:GP2300-TC41-24V

Brand:XYCOM

Product type:GP2000 Series 5.7 inch TFT Color Touchscreen HMI

Power supply:DC24V(DC19.2V~28.8V)

Display:5.7 inch TFT LCD,QVGA 320240,256 colors

Touch type:Resistive matrix touch panel

External dimension:171mm138mm60mm

Panel cutout size:156mm123.5mm

Weight:1.2kg

Power consumption:≤22W

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Front panel protection:IP65f,NEMA TYPE4X/12

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

GP2300-TC41-24V belongs to XYCOM GP2000 series HMI.

It supports communication with multiple brands PLC,can match legacy DCS and turbine control system.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Industrial on-site human machine interface.

Real-time display process parameters,alarm logs and equipment operating status.

Touch operation for parameter setting,manual control command input.

Multi serial communication ports to exchange data with PLC and controllers.

Built-in hardware self-test for LCD,touch circuit and communication interface fault inspection.

Installation

Power off control cabinet.

Install GP2300-TC41-24V into cabinet cutout and lock fixing clips.

Connect DC24V power cable and serial communication wiring.

Power on,run hardware self-test.

Complete communication configuration with PLC and start HMI operation.

Interface

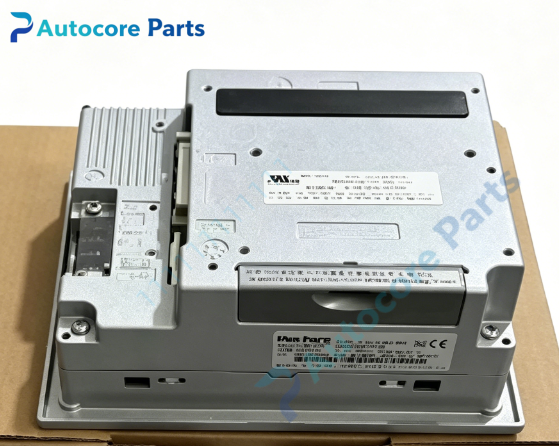

COM1 D-Sub25pin(RS232C/422),COM2 D-Sub9pin(RS232C),DC24V power terminal,LED indicators:POWER,RUN,FAULT.

Feature

5.7 inch color resistive touch screen,GP2000 classic legacy HMI.

Front panel IP65 protection,suitable for cabinet installation in industrial field.

Rich serial communication protocols,easy to connect with various PLC.

Natural air cooling,no fan design,high stability.

Discontinued obsolete HMI panel,supply only for old production system spare replacement.

Anti-interference design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:display circuit or touch panel failure;

No communication:check serial wiring,PLC station address and protocol setting;

Touch unresponsive:check touch circuit and power supply.

Product Brief

XYCOM GP2300-TC41-24V is GP2000 series 5.7 inch color touchscreen operator HMI.

It realizes on-site monitoring and manual operation for automation equipment,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
