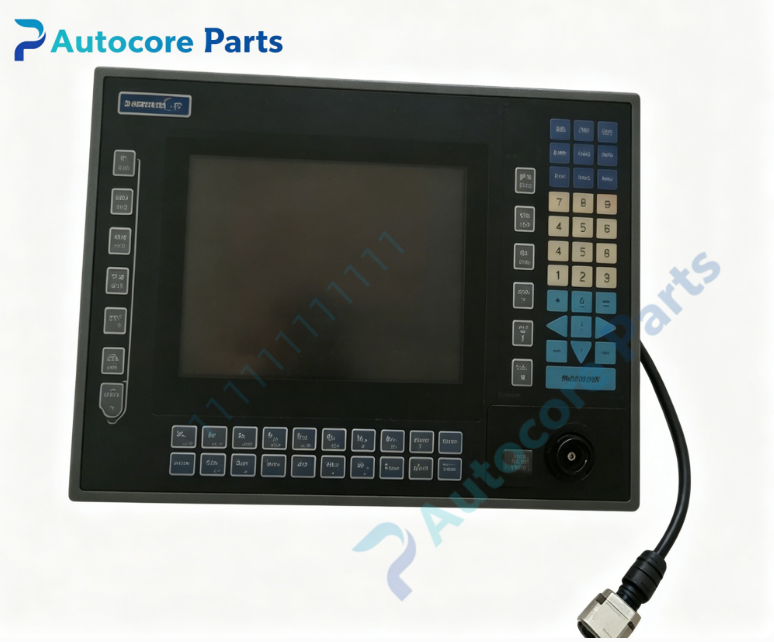

XYCOM 9987 Portrait Flat Panel Industrial Computer

Technical Specifications

Model:9987

Brand:XYCOM

Product type:Vertical Portrait Panel Mount Flat Panel Industrial PC

Power supply:115/230VAC auto-switching,50/60Hz

Display:Vertical VGA TFT active matrix LCD,640480 resolution,with impact protective shield

Processor:Intel Pentium MMX PC/AT compatible CPU

Memory:64MB DRAM,expandable

Storage:IDE hard disk,front/rear accessible 1.44MB floppy drive

Graphics:PCI VGA video controller

Communication:2RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2

Expansion:4-slot full-length ISA passive backplane,3 usable slots

Input:Optional 5-wire resistive touchscreen,programmable relegendable membrane function keypad

Mounting:Vertical portrait panel mount

Weight:12.2kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed after correct installation

Certification:CE,UL,Class I Division2

System compatibility

9987 belongs to XYCOM 9900 series vertical portrait flat panel industrial PC,also named Portrait PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95,Windows NT operating system and XYCOM SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages on vertical screen.

Membrane keypad or optional touchscreen for parameter modification,mode selection and manual operation.

Vertical portrait screen design,suitable for process list and alarm list display.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into vertical cabinet panel cutout and lock mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,keypad,touch and communication function.

Interface

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,floppy drive bay,vertical VGA TFT LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,STATUS.

Feature

Unique vertical portrait TFT screen,optimized for alarm and parameter list viewing.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

4-slot full-length ISA passive backplane,support legacy ISA industrial boards.

Impact protective shield for LCD panel,anti-shock in plant environment.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR,HDD,STATUS LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9987 is 9900 series vertical portrait sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes process data and alarm list display,widely applied to spare replacement for petrochemical and power plant old DCS renovation.
