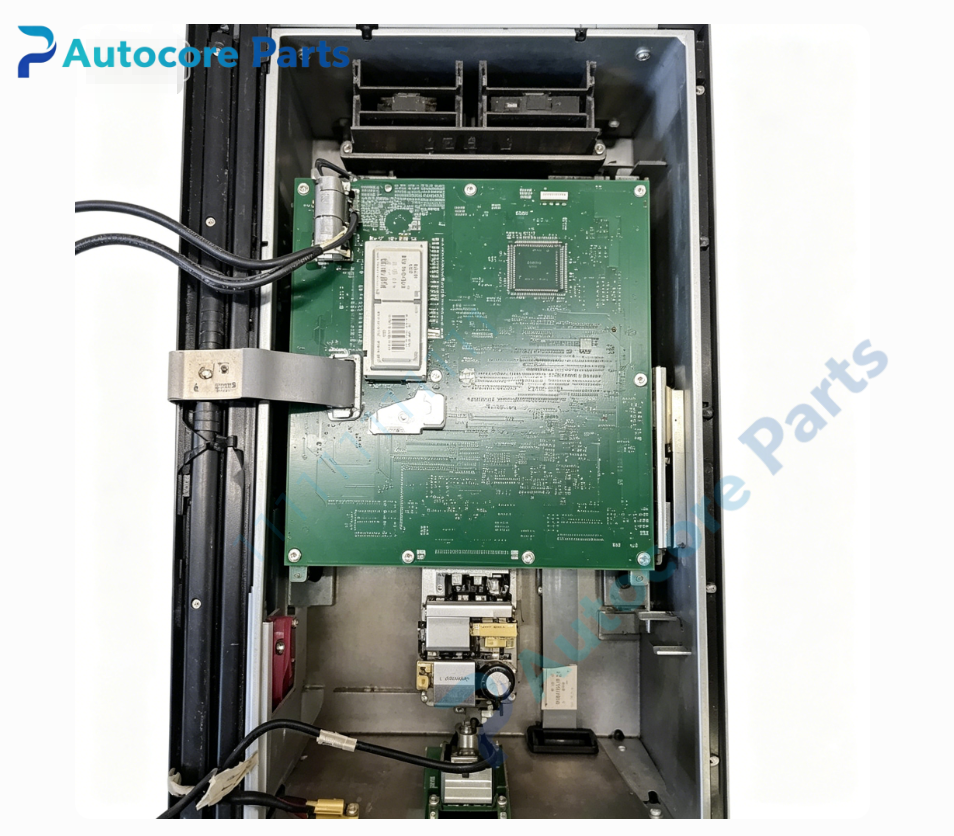

XYCOM 9960 Flat Panel Industrial Computer

Technical Specifications

Model:9960

Brand:XYCOM

Product type:15 Inch Panel Mount Flat Panel Industrial PC

Power supply:115/230VAC auto-switching,50/60Hz

Display:15 inch XGA TFT active matrix LCD,1024768 resolution,with impact protective shield

Processor:Intel Pentium / Celeron PC/AT compatible CPU

Memory:Max 512MB DRAM

Storage:IDE hard disk,optional 1.44MB front-access floppy drive

Graphics:XGA video controller

Communication:2RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2

Expansion:6 full-length AT passive backplane slots,mixed ISA + PCI

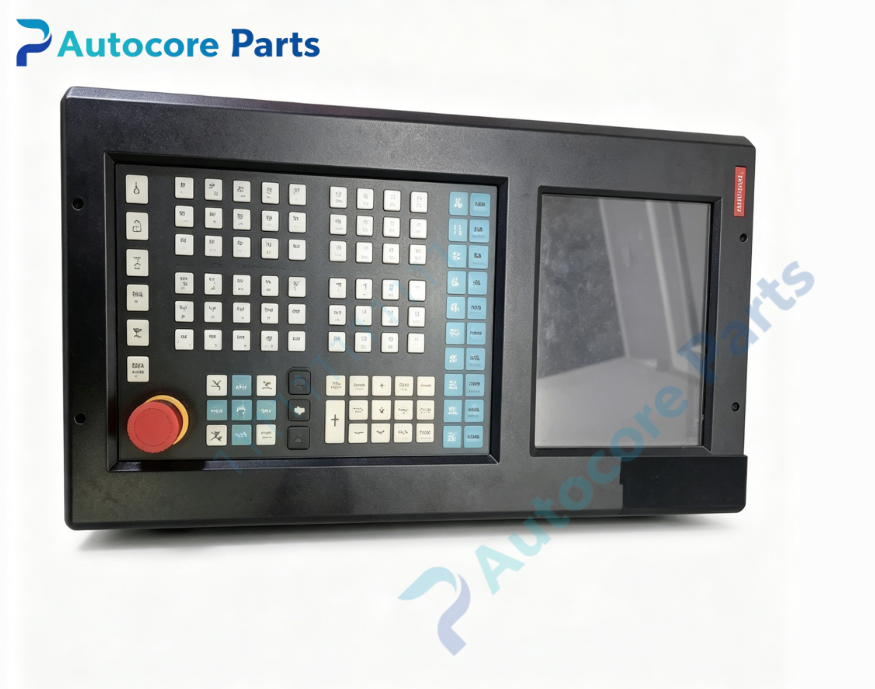

Input:Optional 5-wire resistive touchscreen,membrane function keypad variant available

Mounting:Panel mount,shallow 5.62 inch mounting depth

Weight:14.1kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed after correct installation

Certification:CE,UL,Class I Division2

System compatibility

9960 belongs to XYCOM 9900 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98/NT/2000 operating system and XYCOM SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages.

Touchscreen or membrane keypad for parameter modification,mode selection and manual operation.

Shallow chassis design,suitable for standard control cabinet cutout installation.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA/PCI expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into cabinet panel cutout and lock mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,touch/keypad and communication function.

Interface

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,floppy bay,15 inch XGA LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,STATUS.

Feature

15-inch XGA TFT screen,good readability for multi-loop process monitoring.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

6 full-length expansion slots,strong compatibility with legacy ISA and PCI industrial boards.

TFT active matrix LCD with impact protective shield.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR,HDD,STATUS LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9960 is 9900 series 15 inch sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes process data display and manual operation,widely applied to spare replacement for petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
