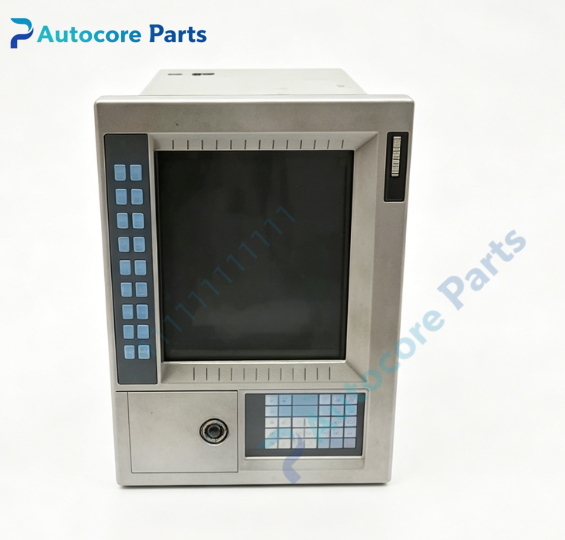

XYCOM 9450 Industrial Panel PC Workstation

Technical Specifications

Model:9450

Brand:XYCOM

Product type:14 Inch SVGA CRT Rugged Industrial Panel PC Workstation

Power supply:100~240VAC,50/60Hz

Display:14 inch SVGA color CRT display,impact resistant CRT shield

Processor:Intel Celeron 433MHz

Memory:Max 256MB DRAM

Storage:10GB IDE hard disk,1.44MB front floppy drive,optional FLASH solid state drive

Graphics:AGP video controller,4MB video RAM

Communication:2*RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2

Expansion:5-slot ISA backplane

Input:Programmable membrane keypad,optional resistive touchscreen

Weight:30.8kg

Mounting:19-inch EIA rack mount / panel mount

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,sealed against dust and splash

Certification:CE,UL,Class I Division2

System compatibility

9450 belongs to XYCOM 9400 series modular industrial panel PC workstation.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial port or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Run MS-DOS,Windows95/98/NT/2000 operating system and HMI monitoring software.

Real-time display process values,trend curves,bar charts and system alarm information.

Membrane keypad or optional touchscreen for parameter setting,mode switching and manual operation.

Modular slide-out computer design,quick disconnect for easy maintenance and component replacement.

Hardware watchdog timer,ensure stable continuous operation in harsh industrial environment.

Power-on self-test to detect CPU,memory,storage and peripheral hardware faults.

Support ISA/PCI board installation for data acquisition and communication function expansion.

Installation

Embed the unit into cabinet panel cutout or install on 19-inch rack and fasten brackets.

Connect 100~240VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS system.

Power on,enter BIOS to configure hardware parameters.

Install operating system and HMI project,test display,keypad,touch and communication function.

Interface

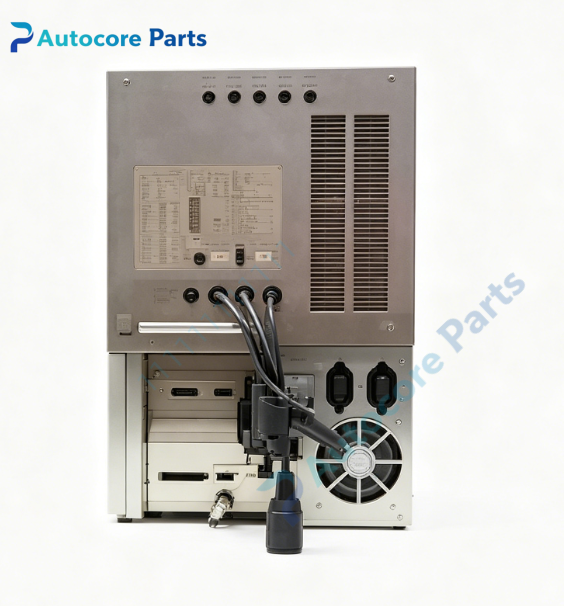

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,front floppy drive,14 inch SVGA CRT display,membrane keypad/touchscreen,LED indicators:PWR,HDD,STATUS.

Feature

Modular slide-out PC module design,convenient for field maintenance and component replacement.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

5-slot ISA backplane,rich expansion capability for custom industrial boards.

14-inch SVGA CRT with protective shield,optional touchscreen for direct screen operation.

Support multiple legacy Windows and DOS operating systems,compatible with old turbine monitoring software.

Discontinued legacy industrial workstation,supply only for old production system spare replacement.

Heavy-duty metal enclosure,shock and vibration resistant for long-time continuous operation.

Diagnostic

Check PWR and HDD LED;no boot:check memory,hard disk and power supply;communication abnormal:inspect serial/ethernet wiring and IP/baud rate;display fault:check CRT shield and video controller.

Product Brief

XYCOM 9450 is 9400 series 14-inch CRT modular industrial panel PC workstation.

It serves as on-site monitoring host for legacy turbine and compressor control system,supports HMI operation and data communication,widely used as spare parts for petrochemical and power plant old DCS renovation.
