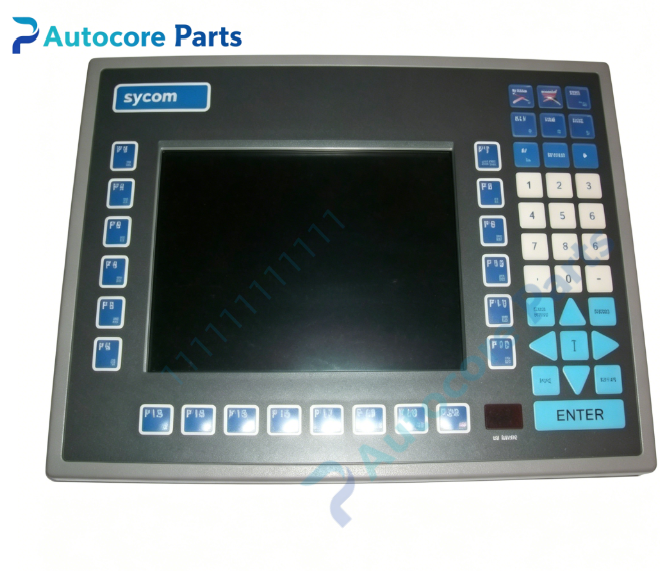

XYCOM 9400KP Industrial Operator HMI Panel

Technical Specifications

Model:9400KP

Brand:XYCOM

Product type:9400 Series Industrial Touchscreen Keypad Operator Panel

Power supply:+24V DC

Display:7.7 inch,640*480 VGA color screen,touchscreen

Keypad:20 programmable function keys,31 numeric and cursor keys

Form factor:Cabinet mount front panel terminal

Weight:1.1kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

9400KP belongs to XYCOM 9400 series industrial HMI.

It matches XYCOM 9400N node box,cooperates with VME rack CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Industrial on-site human machine interface for 9400 series industrial PC system.

Real-time display process parameters,alarm messages and system operating status.

Touchscreen plus physical keypad dual input,support parameter modification,manual control command input.

Communicate with 9400N node controller to complete data exchange and command transmission.

Built-in hardware self-test for display,touch circuit,keypad and communication interface fault inspection.

Installation

Power off control cabinet.

Mount 9400KP into cabinet cutout.

Connect DC 24V power cable and communication cable to 9400N node box.

Power on,run hardware self-test.

Complete communication handshake with node controller and start HMI operation.

Interface

DC24V power terminal,communication port,LED indicators:POWER,RUN,FAULT.

Feature

9400 series integrated touch+keypad industrial operator panel.

Physical keys and touch screen combined design,suitable for industrial heavy operation scene.

Industrial grade EMC protection,resist electromagnetic interference in factory environment.

Cabinet flush mounting design,compact structure.

Discontinued obsolete HMI panel,supply only for old production system spare replacement.

Vibration resistant design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:touch panel or communication circuit failure;

No communication:check communication wiring and node box power status;

Keypad/touch unresponsive:check panel power supply and front panel circuit.

Product Brief

XYCOM 9400KP is legacy 9400 series industrial touchscreen keypad HMI operator panel.

It provides on-site data monitoring and manual operation function for XYCOM 9400 industrial PC system,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.
