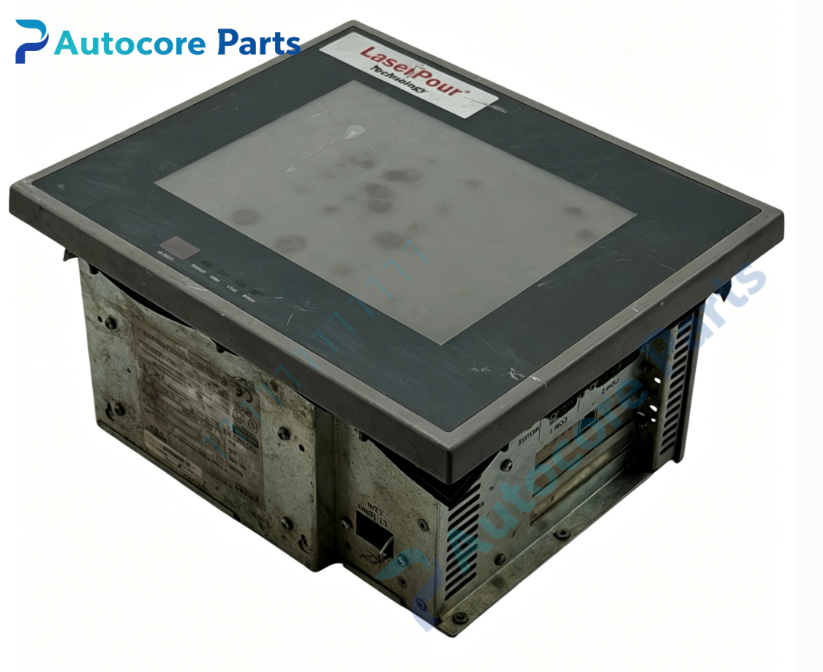

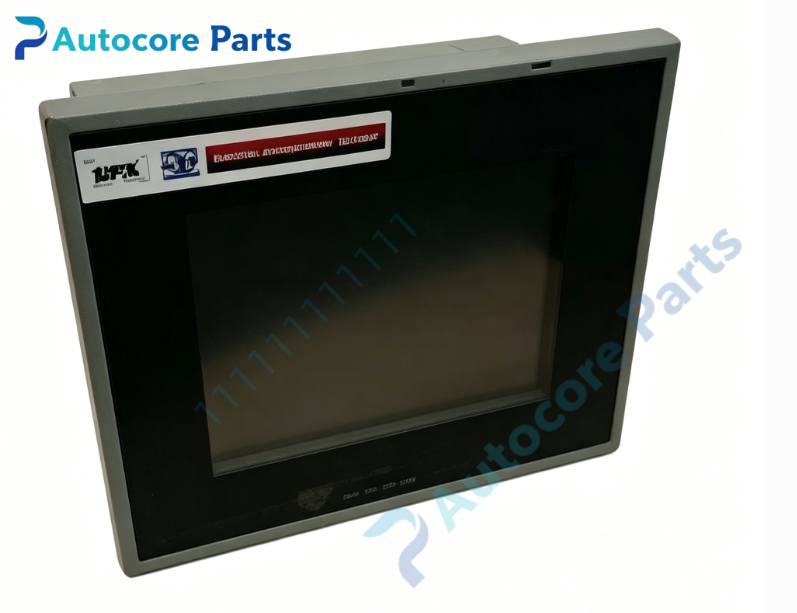

XYCOM 3510 Flat Panel Industrial PC

Technical Specifications

Model:3510

Brand:XYCOM

Product type:10.4 Inch Panel Mount Flat Panel Industrial PC

Power supply:100~240VAC,50/60Hz

Display:10.4 inch TFT LCD,640480 VGA resolution

Input option:Analog resistive touchscreen / 63-position membrane keypad

Processor:Intel Celeron / Pentium III

Memory:up to 512MB DRAM

Storage:IDE hard disk,CF card support

Communication:2Serial COM ports(COM1 RS232,COM2 configurable RS232/422/485),10/100M Ethernet(optional),LPT,PS/2,USB,VGA

Expansion:1ISA,1PCI,1 shared ISA/PCI slot

Weight:10.4kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Panel cutout mounting size

Certification:CE,UL,Class I Division2

System compatibility

3510 belongs to XYCOM 3500 series 3-slot flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with mainstream PLC,DCS,turbine and compressor control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Run HMI monitoring software for real-time process value,trend curve and system alarm display.

Touchscreen or membrane keypad for parameter modification,mode selection and manual operation.

Dual serial ports and optional ethernet for bidirectional data communication with VME controller and field instruments.

Support multiple operating systems:MS-DOS,Windows 95/98,Windows NT,Windows 2000.

Hardware watchdog timer,prevent system crash during long-time continuous operation.

ISA/PCI expansion slots for additional communication or data acquisition board installation.

Power-on self-test to detect onboard hardware fault.

Support CF card and IDE disk for program and historical data storage.

Installation

Embed the unit into cabinet panel cutout and lock mounting brackets.

Connect 100~240VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME control system.

Power on,enter BIOS to set hardware parameters.

Install operating system and HMI project,test display,input and communication function.

Interface

AC power terminal,10/100M RJ45 ethernet(optional),COM1/COM2 serial port,LPT port,PS/2,USB,VGA,CF card slot,front LCD display,touch/keypad,LED indicators:PWR,HDD,COMM.

Feature

3-slot expandable industrial panel PC,rich ISA/PCI expansion capability.

10.4 inch VGA color screen,two input options:touchscreen or membrane keypad.

Dual configurable serial ports,easy connection with legacy VME control platform.

Support multiple old Windows and DOS operating systems,match legacy control software.

Industrial ruggedized design for continuous operation in petrochemical and power plant site.

Discontinued legacy product,supply only for old production system spare replacement.

Front panel sealed design for dust and moisture resistance.

Diagnostic

Check PWR and HDD LED;communication failure:check serial/ethernet wiring,IP address and baud rate;data abnormal:inspect touch/keypad,storage disk and OS running status.

Product Brief

XYCOM 3510 is 3500 series 10.4 inch expandable flat panel industrial PC.

It serves as local monitoring workstation for legacy turbine and compressor control system,realizes data display and manual operation,widely used for petrochemical and power plant old automation equipment spare replacement.
