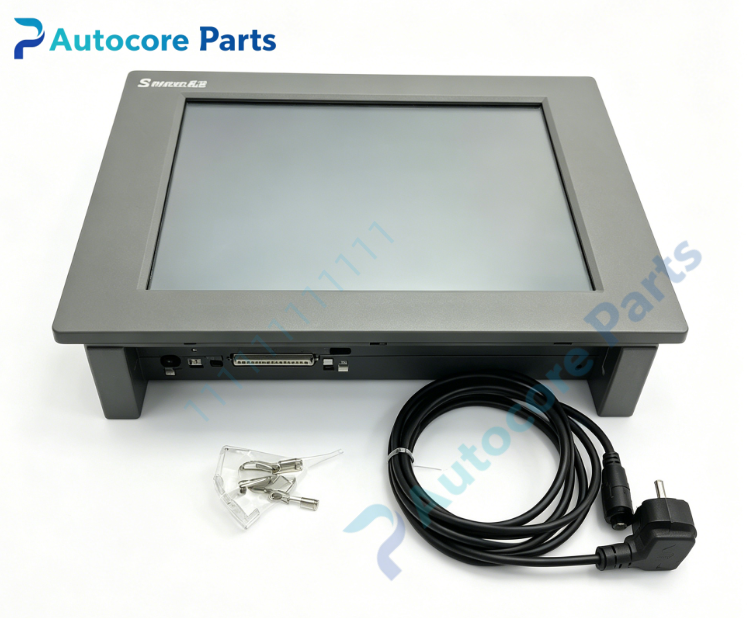

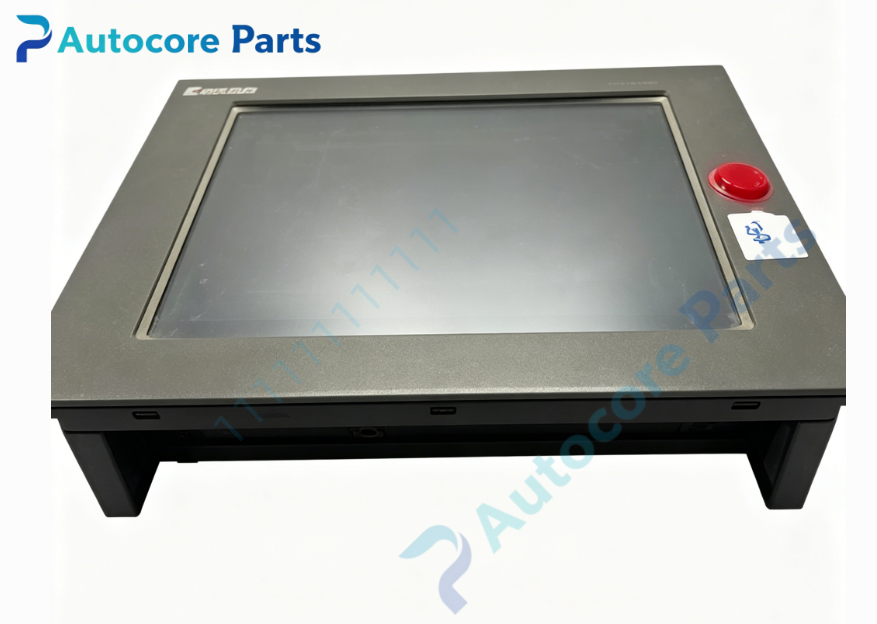

XYCOM 3115 Thinline Industrial Flat Panel PC

Technical Specifications

Model:3115

Brand:XYCOM

Product type:15 Inch Panel Mount All-in-one Industrial Flat Panel PC

Power supply:100~240VAC,50/60Hz

Display:15 inch XGA TFT LCD,1024*768 resolution

Touch:Analog resistive touchscreen

Processor:Intel Celeron CPU

Memory:256MB DRAM

Storage:20GB IDE hard disk,CF card slot

Communication:RS232,RS422/RS485,10/100Mbps Ethernet,USB,PS/2

Weight:6.8kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Panel cutout standard size

Certification:CE,UL,Class I Division2

System compatibility

3115 belongs to XYCOM 3000 series thinline industrial panel PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with most PLC,DCS and turbine control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical,compressor control system monitoring,old equipment maintenance and spare replacement.

Function

Run industrial HMI monitoring software for real-time display of process data,trends and system alarms.

Resistive touchscreen for operation command input,parameter modification and mode switching.

Multi serial and ethernet interfaces for bidirectional data exchange with VME controller and field devices.

Hardware watchdog timer,automatically reset to prevent system crash.

Support CF card for program and data backup.

Power-on self-test for onboard hardware diagnosis.

Support dual view VGA output for external monitor extension.

Installation

Embed the unit into cabinet panel cutout and fasten mounting brackets.

Connect 100~240VAC power cable and protective earth.

Wire serial or ethernet cable to the VME control system.

Power on,enter BIOS to configure hardware parameters.

Install OS and HMI monitoring project,verify touch,display and communication function.

Interface

AC power terminal,10/100M RJ45 ethernet port,RS232/RS422/RS485 serial port,USB port,PS/2 port,VGA port,CF card slot,front panel touch LCD,LED indicators:PWR,HDD,COMM.

Feature

Thin panel mount design,save cabinet space.

15 inch TFT color screen with analog resistive touch,can operate with gloves.

Rich communication ports,easy connection to legacy VME control system and various automation equipment.

Onboard watchdog function,improve system operation stability.

Half-size PCI expansion slot for hardware function expansion.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Rugged industrial design for continuous long-time operation.

Diagnostic

Check PWR and HDD LED;communication failure:check serial/ethernet wiring,IP address and baud rate;data abnormal:inspect touchscreen driver,hard disk and OS status.

Product Brief

XYCOM 3115 is 15-inch thinline embedded industrial panel computer.

It serves as monitoring workstation for legacy turbine and DCS control system,realizes data display and touch operation,widely used in petrochemical and power plant old automation equipment spare replacement.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
