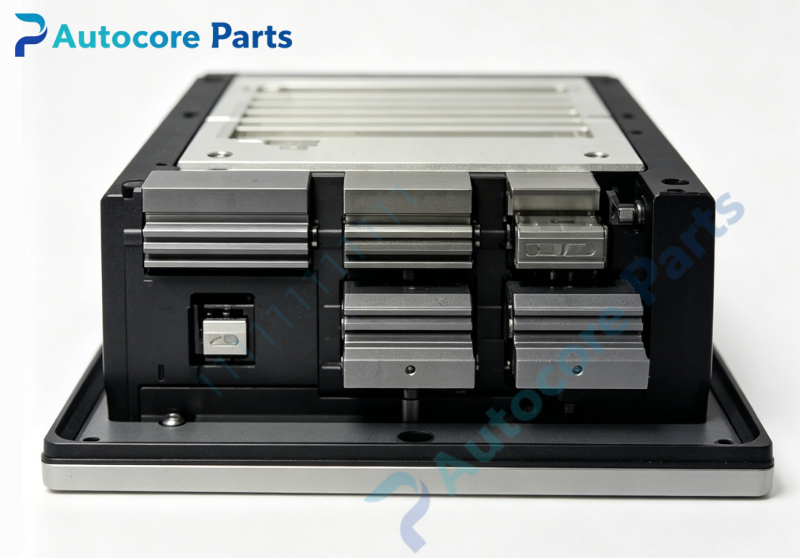

Woodward 5421-178 Turbine Controller Operator Panel

Technical Specifications

Model:5421-178

Brand:Woodward

Product type:505E turbine controller operator panel assembly

Power supply:24 Vdc

Control function:Local operation,parameter configuration,real-time data display,fault alarm indication,keyboard input

Communication:Internal serial bus

Mounting:Panel flush mounting

Operating temperature:-40~70℃

Relative humidity:5~95% non-condensing

Weight:1.85kg

Certification:CE,UL

System compatibility

5421-178 belongs to Woodward 505E turbine control system family,matched with 505E turbine governor main unit.Widely used in steam turbine and generator control cabinets.This is a discontinued legacy operator control panel for power unit maintenance spare replacement.

Function

5421-178 serves as Woodward 505E turbine governor local operation panel.It is equipped with LCD display and function keypad,realizing on-site speed,load,valve position and temperature monitoring,supporting parameter modification,start-stop operation and fault code inquiry.It communicates with main controller through internal serial bus,providing human-machine interaction interface for turbine on-site operation.

Installation

Install 5421-178 on control cabinet front panel.Complete internal bus wiring according to wiring drawing.Check power supply and communication wiring before power-on.

Interface

‑Internal serial bus connector

‑2-line LCD backlight display

‑Multi-function membrane keypad

‑LED fault status indicator

Circuit feature

Isolated serial communication circuit,equipped with ESD and surge suppression design.Stable data interaction,strong anti-interference performance for power plant cabinet environment.

Feature

5421-178 is obsolete Woodward series spare part.Typical failures include display black screen,keypad failure,communication loss,indicator abnormal.Check panel circuit and bus connector pins before replacement.This panel must match corresponding 505E main controller,direct substitution without inspection is not recommended.

Diagnostic

When display blank,keypad no response or communication interruption occurs,the panel cannot read and modify controller parameters.

Built‑in function

Local human-machine interaction,real-time process data display,turbine parameter setting,fault alarm indication,used as Woodward 505E series operator panel assembly spare replacement.

Product Brief

5421-178 is Woodward old turbine series operator control panel for steam turbine generator sets and power automation equipment.Confirm 505E controller model matching before ordering.ESD protection required during handling and installation.
