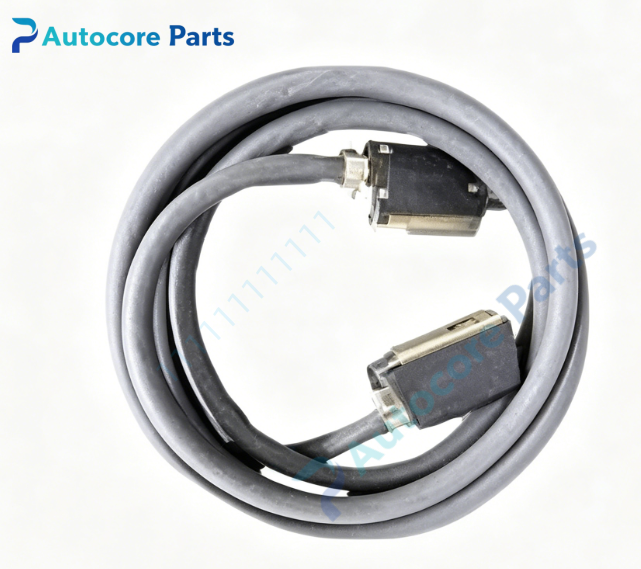

Woodward 5417-413 RS232 Serial Extension Cable

Technical Specifications

Model:5417-413

Brand:Woodward

Product type:Shielded RS232 serial extension cable

Power supply:Not required

Control function:RS232 serial data transmission,controller and configuration terminal interconnection,noise suppression,shielding protection

Communication:RS232 serial protocol

Mounting:Cabinet wiring

Operating temperature:-40~70℃

Relative humidity:5~95% non-condensing

Weight:1.82kg

Certification:CE,UL

System compatibility

5417-413 belongs to Woodward turbine control system family,matched with 505,505E,MicroNet and NetCon series turbine controllers.Widely used in gas turbine,steam turbine and generator control cabinets.This is a discontinued legacy RS232 serial extension cable for power unit maintenance spare replacement.

Function

5417-413 serves as Woodward shielded RS232 serial extension cable.It is used to connect Woodward turbine governor controller with PC or handheld configuration terminal,realizing parameter setting,program upload and download,operating data reading and fault diagnosis.It adopts shielded wire structure to reduce electromagnetic interference,ensuring stable serial communication in power plant harsh environment.It acts as programming and debugging communication cable for Woodward turbine control system.

Installation

Lay 5417-413 inside control cabinet.Complete connector wiring according to wiring drawing.Confirm shielding grounding is properly connected before communication test.

Interface

‑DB9 serial plug connector

‑Shield ground terminal

‑Shielded multi-core RS232 signal cable

Circuit feature

Shielded multi-core cable structure,equipped with ESD and surge suppression design.Stable serial signal transmission,strong anti-interference performance for power plant cabinet environment.

Feature

5417-413 is obsolete Woodward series spare part.Typical failures include cable insulation aging,connector poor contact,shielding layer damage,communication timeout.Check cable body and connector pins before replacement.This cable must match corresponding Woodward turbine controller system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,data loss or intermittent disconnection occurs,the cable will cause abnormal connection between controller and configuration device.

Built‑in function

RS232 serial data transmission,turbine controller and configuration terminal interconnection,electromagnetic noise shielding,used as Woodward series serial extension cable spare replacement.

Product Brief

5417-413 is Woodward old turbine series shielded RS232 serial extension cable for gas/steam turbine generator sets and power automation equipment.Confirm controller model matching before ordering.ESD protection required during handling and installation.
