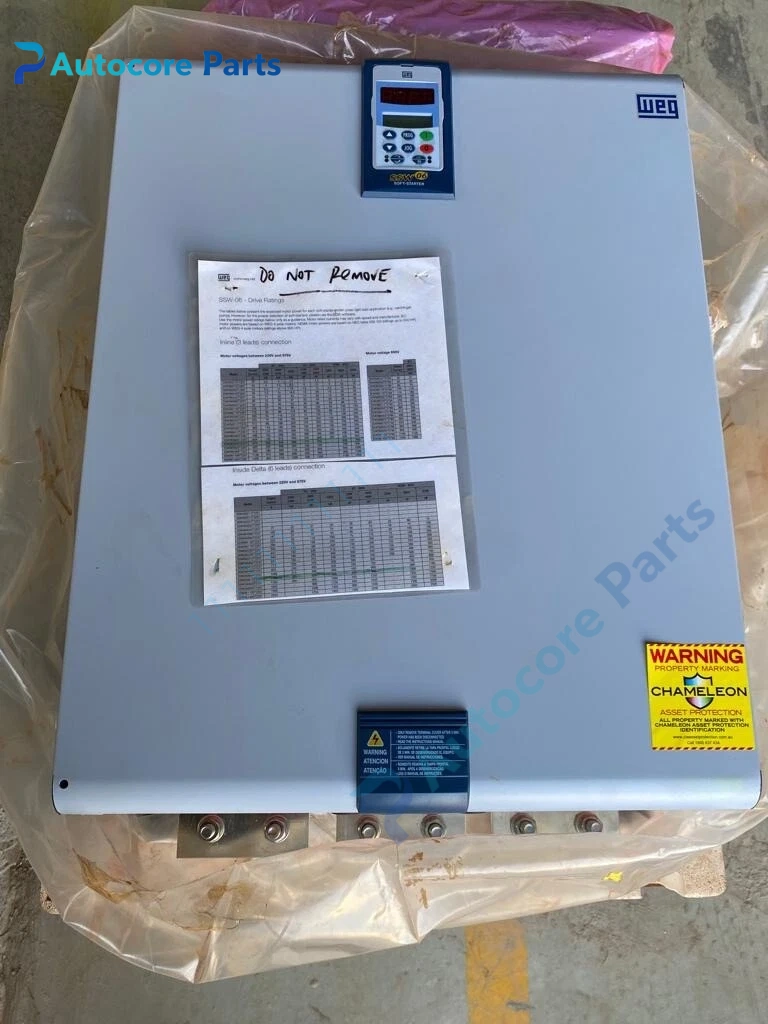

WEG SSW060670T2257EOIPZ Soft Starter Unit

Module Feature

SSW060670T2257EOIPZ belongs to WEG SSW06 digital soft starter series. Model decoding: 0670 stands for rated current 670A; T2257 means main circuit voltage 220~575V AC; EOIPZ represents built-in bypass contactor + EtherNet/IP communication interface. It adopts thyristor phase-shift voltage regulation technology, realizes ramp soft start and soft stop, effectively suppresses starting surge current and mechanical impact. Integrated bypass function cuts off thyristors after motor full-speed operation, reduces heat loss and extends service life. It supports multiple motor protection functions: overload, phase loss, phase imbalance, overheating and locked rotor protection. The EtherNet/IP port enables direct connection with PLC for remote parameter setting, running monitoring and fault uploading. Widely used for large pumps, fans, conveyors, crushers and other heavy-load three-phase asynchronous motors. This is a legacy product, mostly supplied as spare parts for on-site maintenance.

Working principle

When starting, the CPU controls the firing angle of bidirectional thyristors to gradually increase motor terminal voltage, the motor accelerates smoothly without high inrush current. After reaching full rated speed, the internal bypass contactor closes, the thyristor branch exits operation. During stopping, the voltage slowly decreases to achieve soft deceleration and avoid water hammer or mechanical shock. The communication module uploads current, voltage, thermal state and fault information to the upper control system via EtherNet/IP bus.

Onboard components

Three-phase SCR thyristor power assembly, built-in bypass contactor, current transformer sampling circuit, main control board, EtherNet/IP communication module, cooling fan, operation HMI panel, power terminal busbar.

LED indicators

Front panel LED indicators for power, run, communication and fault alarm; local HMI displays current, voltage, thermal capacity and fault code.

Hardware self‑diagnosis

Power-on self-check detects phase loss, SCR fault, overcurrent, overtemperature, bypass contactor anomaly and EtherNet/IP link interruption. Fault records are stored inside the starter.

Programming software

Use WEG WPS software for parameter configuration, motor curve setting and remote diagnosis; local HMI can also modify parameters manually.

Electrical & Process Parameters

Model:SSW060670T2257EOIPZ Brand:WEG Device type:Digital Soft Starter Rated current:670 A Main circuit voltage:3AC 220~575V Control supply:90~250V AC Communication:EtherNet/IP Built-in:Bypass contactor Function:Smooth start/stop and multi-protection for large three-phase induction motor

Mechanical & Structure

Mounting:Cabinet backplane installation Protection class:IP00 Housing:Metal frame with forced air cooling

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:UL, CE compliant Status:WEG original SSW06 series soft starter spare

Installation

Install soft starter inside low voltage cabinet and reserve heat dissipation space. Connect three-phase incoming power and motor cables to main terminals. Wire control power and connect EtherNet/IP network cable to PLC. Set motor rated parameters, start ramp time and protection thresholds before commissioning.

Interface

Three-phase power input terminal, motor output terminal, 90~250V control power terminal, EtherNet/IP network port, PE grounding terminal.

Diagnostic

Starting current too high:Start time set too short or motor load locked. Overheating alarm:Fan failure, radiator dust accumulation or long-time overload. Communication offline:EtherNet/IP cable broken, IP address conflict or switch port fault. Bypass not pull-in:Bypass contactor coil damage or control circuit fault.

Product Brief

WEG SSW060670T2257EOIPZ SSW06 soft starter, 670A, 220-575V, built-in bypass contactor with EtherNet/IP, used for soft start and stop of large industrial three-phase motors.
