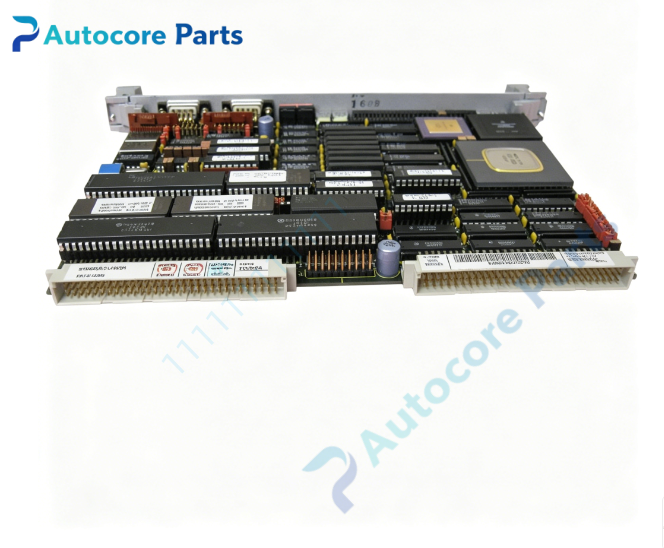

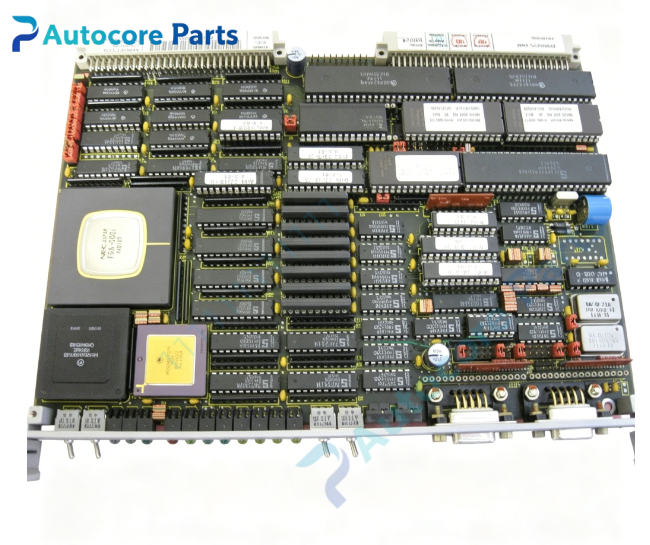

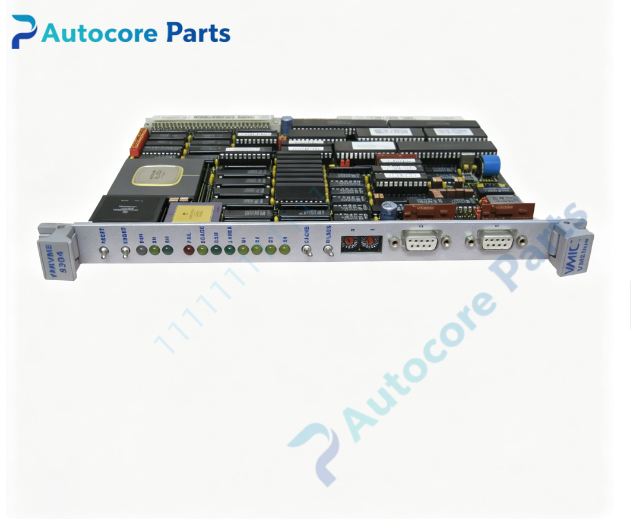

VMIC VMIVME-9304 Single Board Computer

Module Feature

VMIC VMIVME-9304 is a single-slot 6U VMEbus single board computer powered by PowerPC 750FX processor running at 800 MHz, equipped with 32 KB L1 instruction cache,32 KB L1 data cache and 512 KB L2 cache. It supports up to 1 GB DDR memory via SODIMM socket, onboard 64 MB boot flash and CompactFlash storage slot for persistent application and OS image storage. Integrated 2D SVGA graphics controller supports max 1280×1024 resolution. Dual independent 10/100/1000BASE-T gigabit Ethernet ports provide redundant network communication. Serial interfaces include two software configurable RS232/422/485 channels with hardware flow control. Dual USB2.0 host ports and battery-backed real-time clock are integrated on the board. One PMC mezzanine expansion slot accepts 3.3 V /5 V PMC modules for analog I/O, fiber RFM or additional communication interfaces. VME64 bus compliance supporting A24/A32 addressing, D32/D64,BLT and MBLT64 block transfer modes. Programmable hardware watchdog timer can trigger NMI or full system reset for fail-safe operation. Rugged Eurocard construction, widely used in gas turbine control, hardware-in-loop simulation, aerospace test benches and high-reliability industrial VME chassis.

Working principle

PowerPC 750FX processor executes real-time operating system and user control application. VME64 bridge chip implements full VME master and slave capability to access registers and memory of other VME modules. PMC slot extends system function by mounting mezzanine I/O or communication boards. Dual gigabit controllers handle redundant Ethernet data transmission; multi-protocol UART chips drive configurable RS serial ports. Battery-backed RTC retains system time across power cycles. Flash and CompactFlash store boot firmware and application data. Hardware watchdog continuously monitors software heartbeat; timeout event triggers hardware reset or fault interrupt to avoid system hang. VME interrupt controller accepts interrupt signals from peripheral VME modules and forwards to PowerPC core.

Onboard components

PowerPC 750FX 800 MHz CPU, SODIMM DDR memory socket, 64 MB boot flash, CompactFlash connector, SVGA graphics chip, dual gigabit Ethernet PHY, dual multi-mode UART, dual USB2.0 controller, battery-backed RTC, VME64 interface FPGA, watchdog timer logic, PMC connector, VME J1/J2 transceivers, front panel I/O connectors, multi-status LED array, manual reset pushbutton.

LED indicators

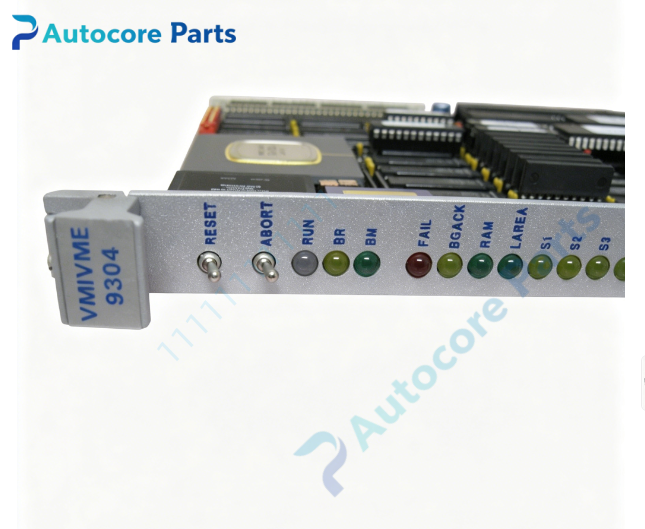

Front panel LED indicators for board +5 V power, gigabit link/activity, VME SYSFAIL fault and watchdog alarm.

Hardware self-diagnosis

Visual inspection of PCB, front ejectors and solder joints; board ID register readback and firmware verification; power-on POST self-test; memory read/write cyclic verification; Ethernet loopback test; serial port communication test; watchdog timeout validation; VME A32/MBLT64 block transfer communication test.

Programming software

VMIC board support package and driver library, supports VxWorks, Linux, QNX real-time operating systems; universal BIOS/bootloader configuration utility for memory, boot sequence and watchdog setup.

Electrical & Process Parameters

Model: VMIVME-9304 Device type: 6U VMEbus PowerPC single board computer Bus standard: VME64, A24/A32 addressing, D32/D64, MBLT64 block transfer Processor: PowerPC 750FX 800 MHz Memory: Max 1 GB DDR SODIMM, 64 MB onboard boot flash, CompactFlash slot Graphics: SVGA, max 1280 ×1024 Interfaces: Dual gigabit Ethernet, 2 × RS232/422/485, dual USB2.0 Expansion: One PMC slot (3.3 V / 5 V compatible) Control mode: VME master / slave operation, programmable hardware watchdog Power supply: +5 V from VME backplane Cooling: Convection cooling Protection: Over current, ESD protection, watchdog auto-reset, VME bus error detection Mounting: Standard 6U VME front panel ejector locking Protection class: PCB with optional conformal coating

Mechanical & Structure

Mounting: Standard single-slot 6U VME Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +70℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC PowerPC VME64 single board computer

Installation

Follow ESD safety procedure before handling. Fully power off VME chassis. Insert VMIVME-9304 into vacant 6U VME slot and lock front panel ejector latches. Install PMC mezzanine module if required. Connect front panel Ethernet, serial, USB and video peripherals. Power on chassis and enter bootloader to configure boot sequence and watchdog parameters. Install OS and VMIC VME drivers, run POST and full peripheral diagnostic before commissioning.

Interface

VME J1/J2 backplane connector, PMC mezzanine site, dual RJ45 gigabit Ethernet, dual DB9 serial ports, SVGA video, dual USB2.0, CompactFlash slot, fault status signal pins.

Diagnostic

Board fails POST: faulty SODIMM memory, defective CPU chip, insufficient chassis airflow or abnormal backplane power. VME block transfer unstable: poor backplane contact, missing bus termination, VME bridge hardware fault. Network link failure: damaged cable, PHY chip damage or duplex mismatch. RTC time loss: backup battery depletion. Watchdog fails to trigger: wrong bootloader watchdog parameter setup

Product Brief

VMIVME-9304 VMIC single height 6U VME64 single board computer,PowerPC 750FX 800 MHz CPU,dual gigabit Ethernet and PMC expansion slot,for high-performance rugged embedded control,turbine safety control and real-time hardware-in-loop simulation VME chassis systems.
