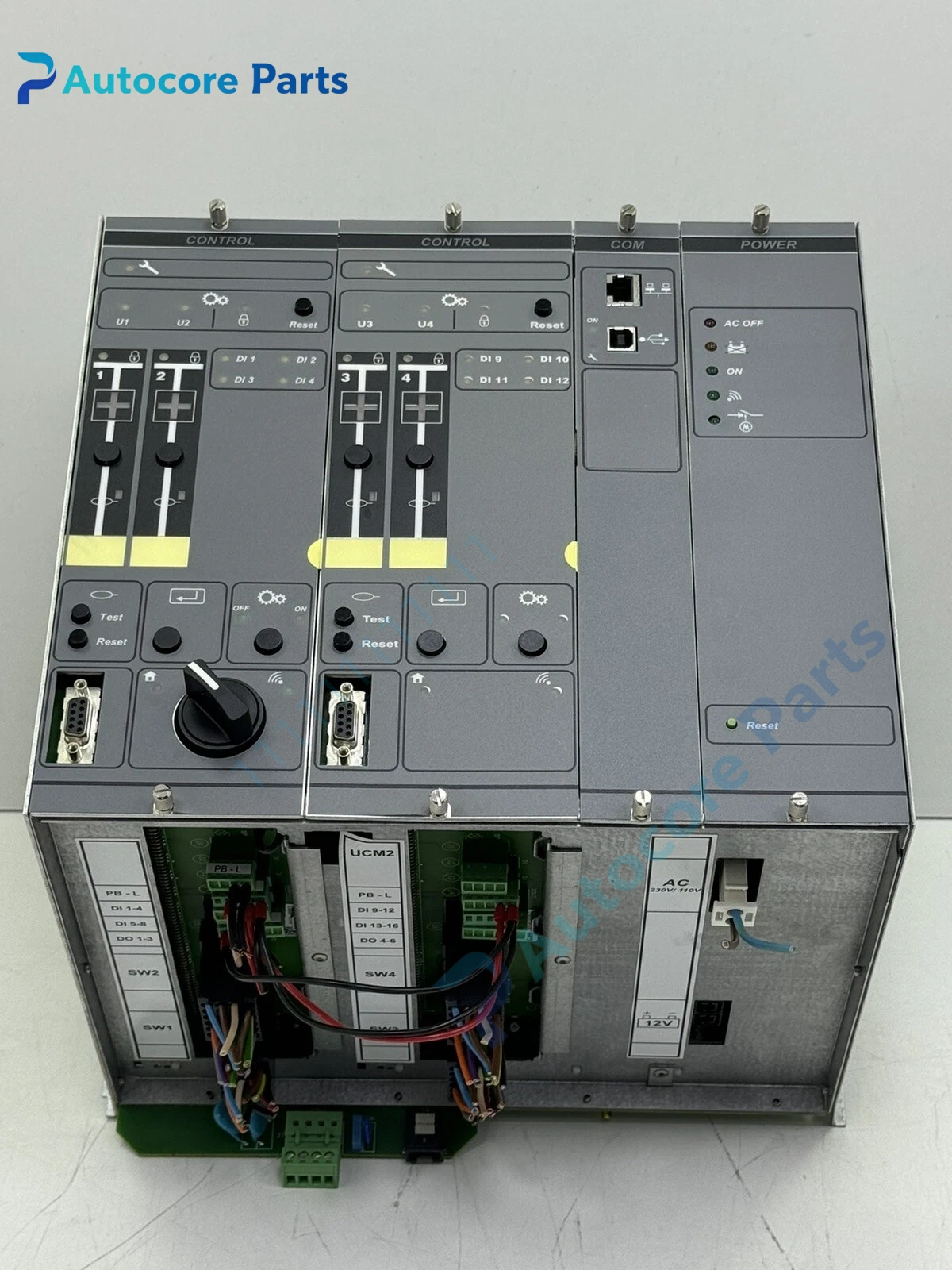

Telecontrol Interface Module For Power Substation Automation System

Feature & Principle

It collects binary status signals from protection relays and switchgear, transmits data to the master station via fieldbus. It receives remote control commands and outputs dry contact signals to execute switching operation, supporting interlock and status feedback.

Specifications

Model: CM0565-2 Series: T200 RTU Power supply: AC 220V Communication: CAN bus / serial interface Mounting: Cabinet plug-in module Certification: CE

Components & Diagnostics

Signal input circuit, relay output unit, communication processor, status LED, terminal block. Common faults: communication dropout, channel no response, relay contact failure, power supply abnormal.

Product Brief

CM0565-2 remote control interface, substation automation spare widely used for power grid telecontrol and switchgear remote operation.
