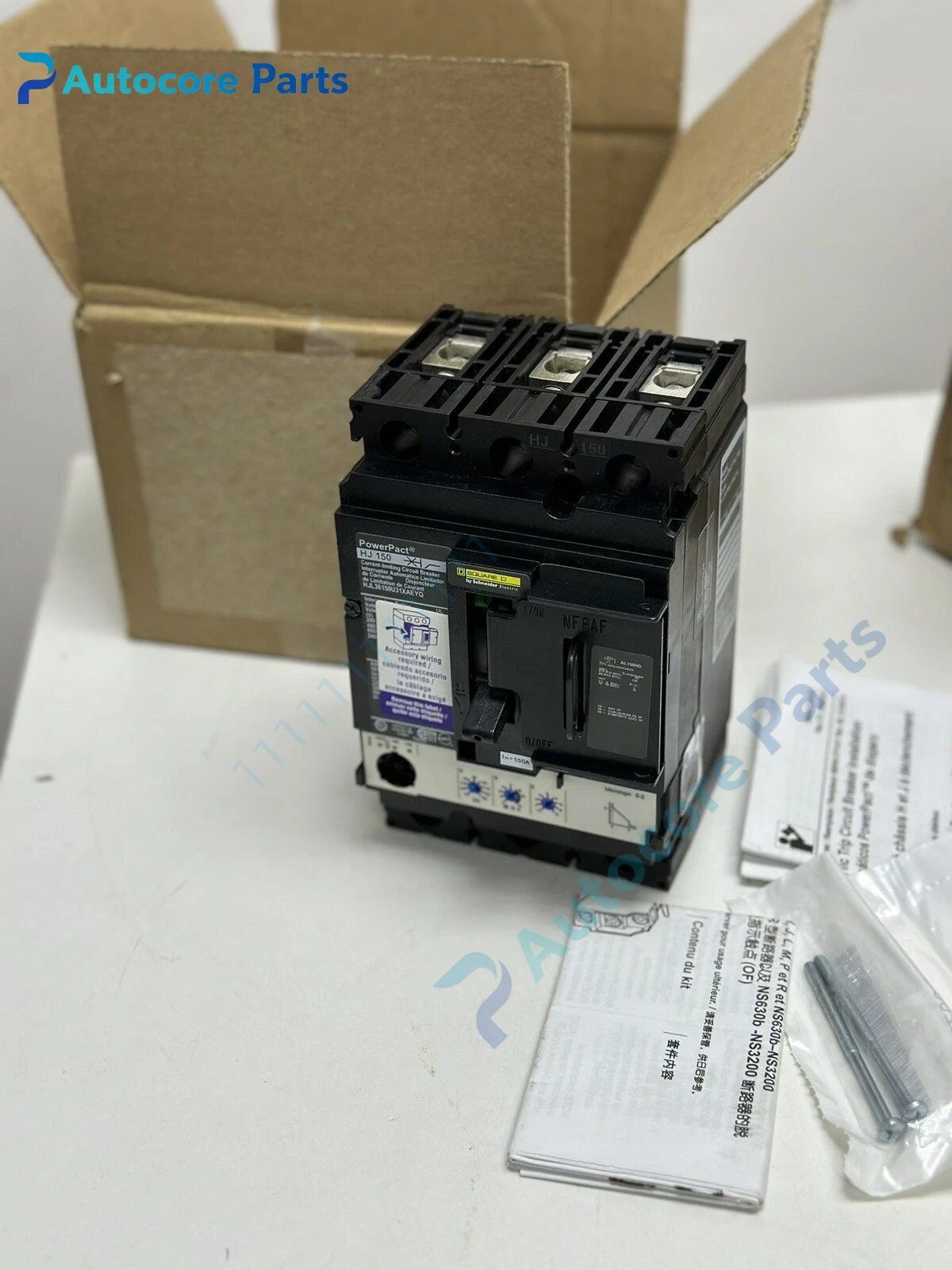

Square D HJL36150U31XAEYQ PowerPacT H Circuit Breaker Unit

Feature & Principle

The Micrologic 3.2 trip unit monitors line current continuously. It provides long-time overload, short-time and instantaneous short-circuit protection, trips the main contact assembly automatically to isolate faulty circuit and protect downstream cables and loads.

Specifications

Model: HJL36150U31XAEYQ Brand: Square D (Schneider Electric) Pole: 3P Rated current: 150A Rated voltage: 600VAC Interrupt capacity: 25kA @600VAC Trip unit: Micrologic 3.2 (LSI) Terminal: Lug connection Rating: 80% rated Certification: UL489, CSA, CE

Components & Diagnostics

Molded insulating housing, main contact set, arc extinguisher, Micrologic 3.2 electronic trip module, operating handle, lug terminals. Common faults: trip misoperation, contact overheating, trip unit power loss, abnormal indicator.

Product Brief

HJL36150U31XAEYQ molded case breaker, Square D power distribution spare widely used for industrial low voltage switchgear and machine power feed protection.
