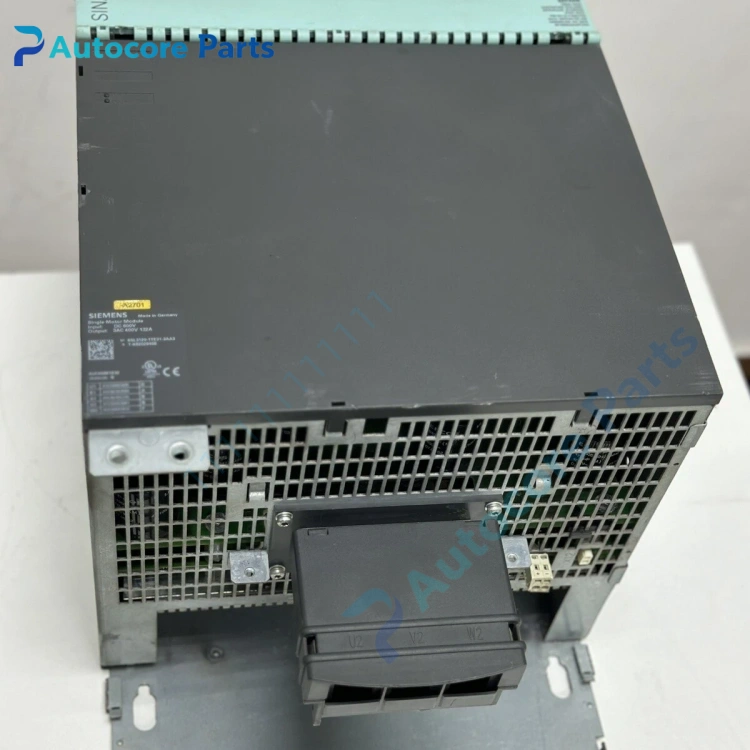

Siemens 6SL3120-1TE31-3AA3 S120 Single Motor Module Unit

Feature & Principle

This single-axis servo motor module receives DC bus power from rectifier unit, outputs adjustable three-phase AC power to servo motor via DRIVE-CLiQ communication. It supports high-precision speed, torque and position control, built-in safety functions for machine tool and multi-axis automation equipment.

Specifications

Model: 6SL3120-1TE31-3AA3 Brand: Siemens Series: SINAMICS S120 Type: Single motor module Input: DC 600V Output: 3AC 400V, 132A Cooling: Internal air cooling Communication: DRIVE-CLiQ Safety: Extended Safety Integrated Frame: Booksize Protection: IP20 Certification: CE, UL

Components & Diagnostics

Power IGBT unit, drive control board, DRIVE-CLiQ interface, cooling fan, status LED. Common faults: overcurrent alarm, over-temperature trip, DRIVE-CLiQ communication error, fan damage.

Product Brief

6SL3120-1TE31-3AA3 servo motor module, Siemens S120 drive spare widely used for CNC machine, packaging and multi-axis servo production lines.
