Siemens 6SL3000 Drive System Accessory

Feature & Principle

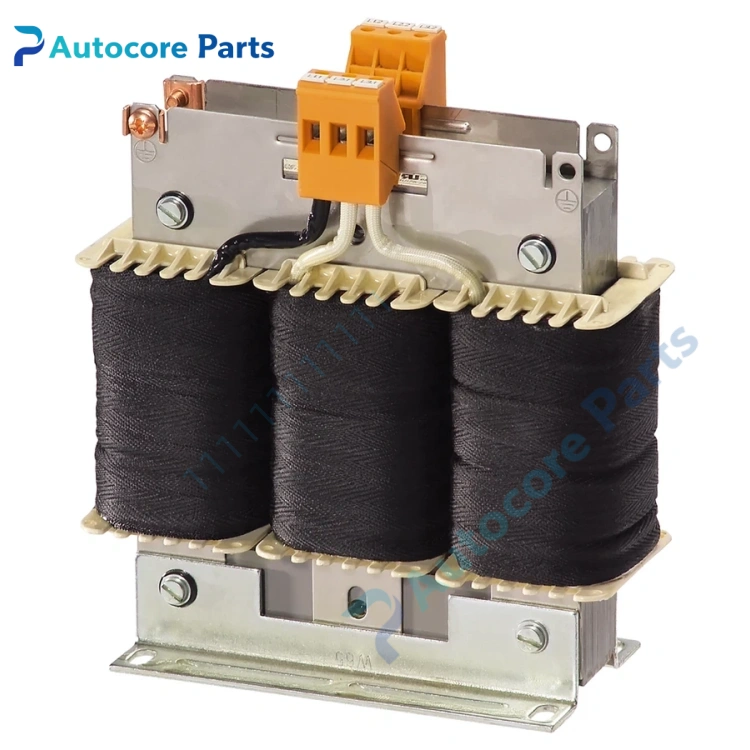

It is Siemens 6SL3000 series auxiliary components for SINAMICS S120 servo drive system. Line reactor restrains grid harmonic and inrush current, stabilizing input power. Motor reactor reduces dv/dt voltage peak and protects motor insulation. Line filter suppresses electromagnetic interference and meets EMC requirements. Braking resistor consumes regenerative energy during motor deceleration. Different sub-models are selected according to power configuration, widely matched with S120 power module for CNC and multi-axis automation equipment.

Specifications

Model: 6SL3000 (series prefix) Brand: Siemens Applicable system: SINAMICS S120 Category: Line reactor, motor reactor, EMC filter, sine filter, braking resistor Rated voltage: 3AC 380-480V Mounting: Cabinet mounting Application: CNC machine, gantry, packaging multi-axis servo system Certification: CE, UL

Components & Diagnostics

Coil winding, iron core, insulation framework, terminal block, metal housing. Common faults: winding overheat, insulation aging, loose wiring, resistor burnout.

Product Brief

6SL3000 drive accessory, Siemens SINAMICS S120 servo system spare widely used for multi-axis servo cabinet overhaul and replacement.
