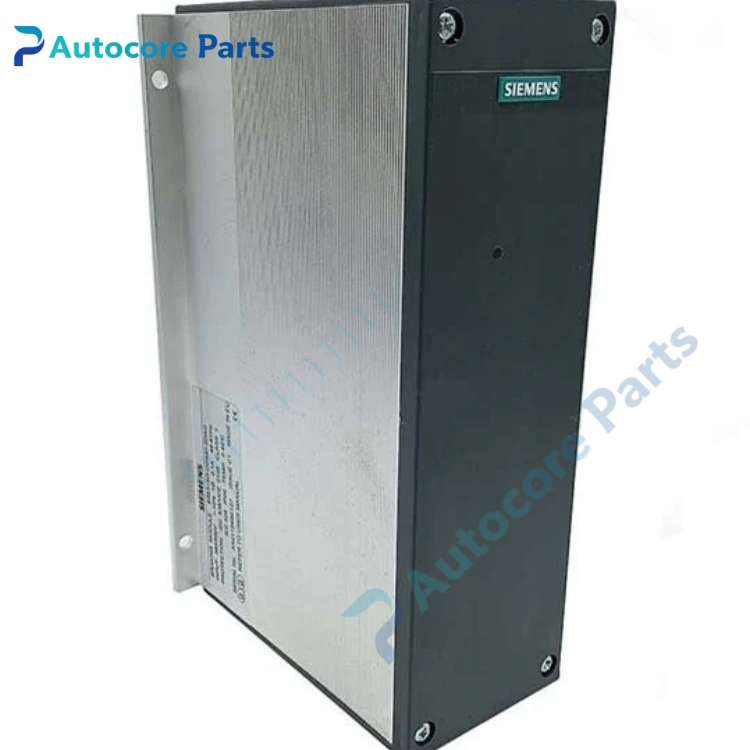

Siemens 6SE3190-0DX87-2DA0 Braking Resistor

Feature & Principle

It is a power braking resistor matched with old Siemens frequency converters. When the motor runs in generating state during fast deceleration, the regenerative electric energy charges the DC bus and raises bus voltage. The resistor converts excess energy into heat to prevent overvoltage fault and enable rapid braking. It is designed for cabinet installation with overload capacity for intermittent braking duty.

Specifications

Model: 6SE3190-0DX87-2DA0 Brand: Siemens Type: Dynamic braking resistor Applicable series: SIMOVERT, MICROMASTER Mounting: Cabinet mounting Cooling: Natural air cooling Protection: Thermal cutout integrated Lifecycle: Discontinued legacy spare Application: CNC machine, conveyor, hoist, packaging machinery drive cabinet Certification: CE

Components & Diagnostics

Resistance wire core, insulated ceramic / metal housing, thermal switch, terminal block. Common faults: resistance wire burnout, thermal switch trip, insulation aging, open circuit.

Product Brief

6SE3190-0DX87-2DA0 dynamic braking resistor, Siemens old drive braking spare widely used for CNC and automation equipment overhaul and replacement.
