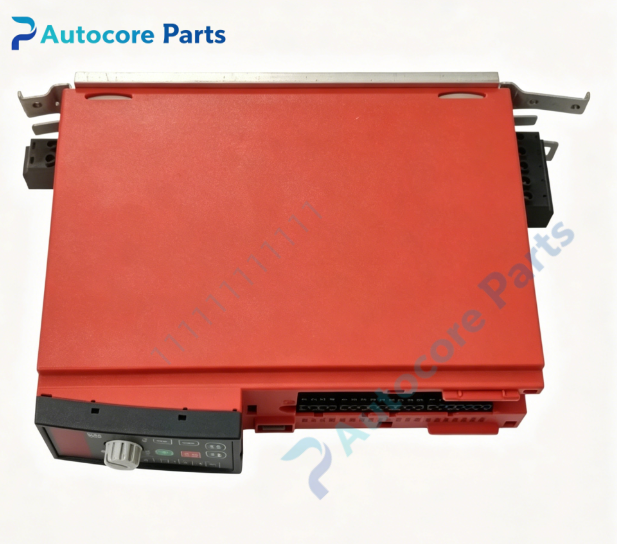

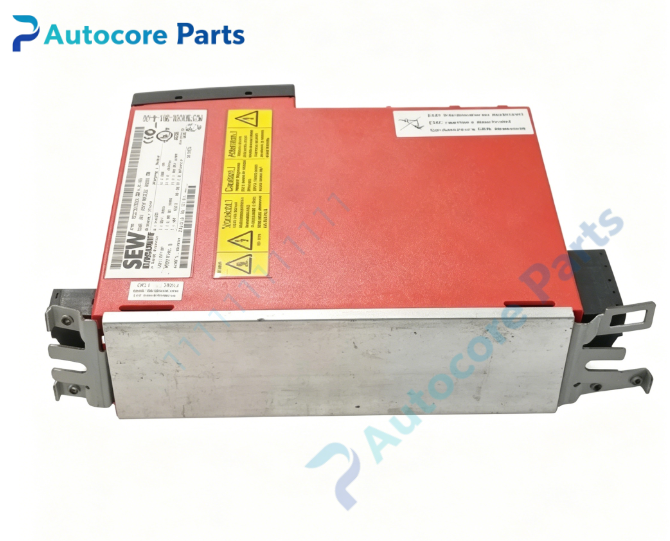

SEW MC07A150-503-4-00 Frequency Inverter

Technical SpecificationsModel:MC07A150-503-4-00 Brand:SEW Product Type:MOVITRAC A Compact AC Frequency Inverter Rated power:15kW Input voltage:3×AC 380–500V,50/60Hz Rated output current:32A Output frequency:0~600Hz(V/F),0~150Hz(vector) Overload capacity:150% rated current for 60s Protection class:IP20 Mounting:Panel cabinet vertical mounting Weight:12.5kg Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMC07A150-503-4-00 belongs to SEW MOVITRAC A series inverter. It controls three-phase asynchronous motors, perfectly matches SEW gearmotors and standard 3-phase induction motors. Widely applied for conveyor, packaging, material handling and pump equipment, used as replacement spare part for old MOVITRAC A drive systems.

FunctionThis compact inverter supports V/F and vector speed regulation. It integrates built-in brake chopper, digital and analog I/O terminals. It supports optional fieldbus modules to realize bus communication control. Built-in complete protection functions: overcurrent, overvoltage, undervoltage, overtemperature, motor overload and short-circuit protection.

InstallationDisconnect power before installation. Mount inverter vertically inside control cabinet, keep sufficient top and bottom ventilation clearance. Wire power terminals and motor terminals strictly following SEW wiring diagram. Set motor nameplate parameters during commissioning. Complete EMC grounding to reduce electromagnetic interference.

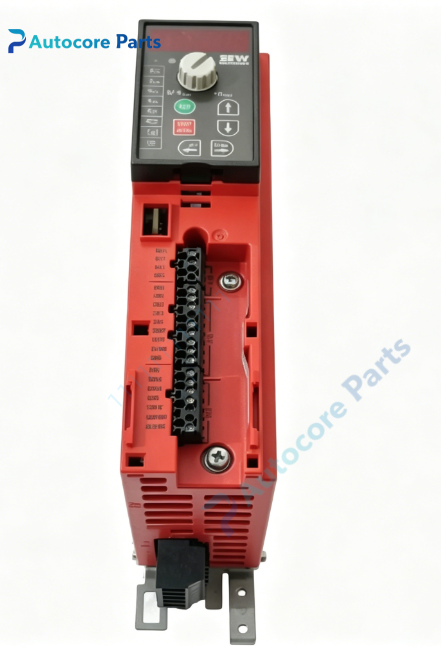

InterfacePower terminal block, digital & analog I/O terminal, front keypad port, optional fieldbus expansion slot.

FeatureSEW MC07A150-503-4-00 cabinet-mounted 15kW three-phase input inverter, reliable high power version for heavy load applications. Built-in brake chopper for rapid stop. Parameter upload/download available via FBG operation keypad. Discontinued legacy spare part, only for maintenance replacement of MOVITRAC A drive systems.

DiagnosticDrive no power: input power missing or internal fuse blown; Overcurrent fault: motor short circuit, cable damage or motor parameter mismatch; Over temperature: poor ventilation, fan failure or continuous overload; Communication failure: loose bus connector or wrong station address setting.

Product BriefSEW MC07A150-503-4-00 is MOVITRAC A series 15kW three phase input frequency inverter, used for speed regulation of three-phase asynchronous motors in heavy-duty conveyor, packaging and general industrial automation machinery.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
