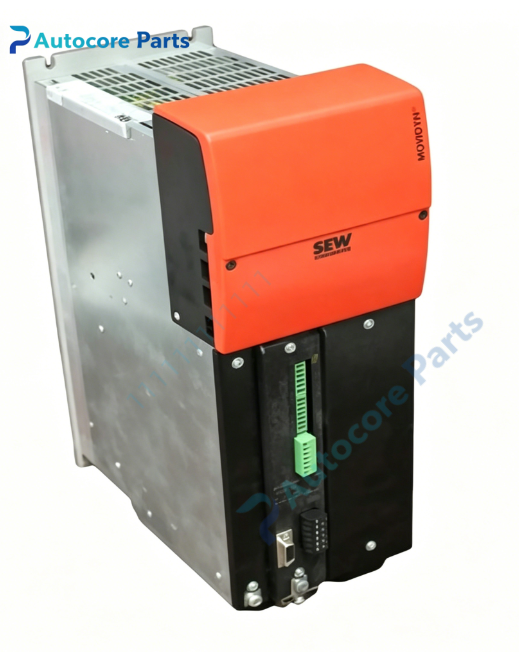

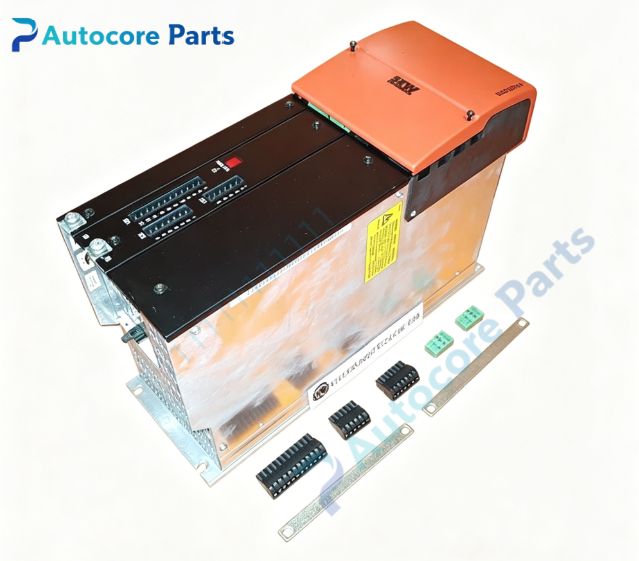

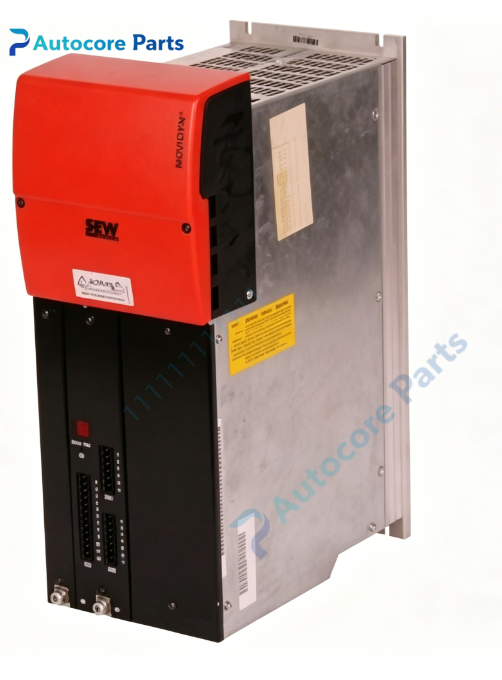

SEW MAS51A060-503 Servo Axis Module

Technical SpecificationsModel:MAS51A060-503 Brand:SEW Product Type:MOVIDYN Servo Axis Module Input voltage:3×AC380–500V,50/60Hz Rated output current:60 AAC Peak output current:90 AAC (0.3s) Internal 24V power supply:15W Pulse frequency:0–400Hz Overload capacity:150% rated current for short-time operation Protection class:IP20 Mounting:Cabinet vertical panel mounting Weight:6.0kg Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMAS51A060-503 belongs to SEW MOVIDYN series servo axis module. It must be matched with MPB/MPR power supply unit, paired with SEW synchronous servo motors. Supports position, speed and torque control. Widely used in packaging, material handling, machine tool and automated production lines, as replacement spare part for legacy MOVIDYN servo systems.

FunctionThis MOVIDYN servo axis module supports three control modes: position, speed and torque. Built-in IPOS integrated positioning function, digital & analog I/O terminals and encoder feedback interface. Optional PROFIBUS-DP, CAN and INTERBUS-S fieldbus communication modules, realizes high dynamic response for heavy-duty precision motion. Comprehensive protection functions including overcurrent, overvoltage, undervoltage, overtemperature, motor overload and encoder fault alarm.

InstallationCut off main power before installation. Mount servo module vertically inside control cabinet, keep enough ventilation space on top and bottom. Complete power wiring, motor wiring and encoder wiring strictly follow SEW official wiring diagram. Configure motor and encoder parameters during commissioning. Implement reliable EMC grounding to reduce electromagnetic interference.

InterfacePower terminal block, digital & analog I/O terminal, encoder feedback port, fieldbus expansion slot, keypad communication port.

FeatureSEW MAS51A060-503 high-current MOVIDYN servo axis module for heavy load automation applications. Built-in IPOS positioning function, multiple control modes optional. Support parameter backup and upload/download via operation keypad. Discontinued legacy spare part, only for maintenance replacement of SEW MOVIDYN servo systems.

DiagnosticNo power indication: input power loss or power supply module fault; Overcurrent fault: motor short circuit, cable damage or parameter setting error; Encoder fault: feedback cable broken, loose connector or encoder damage; Over temperature alarm: insufficient ventilation, fan failure or continuous overload.

Product BriefSEW MAS51A060-503 is MOVIDYN series 60A three-phase servo axis module, used together with MPB/MPR power supply for high precision position, speed and torque control of SEW synchronous servo motors in heavy-duty industrial automation equipment.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
