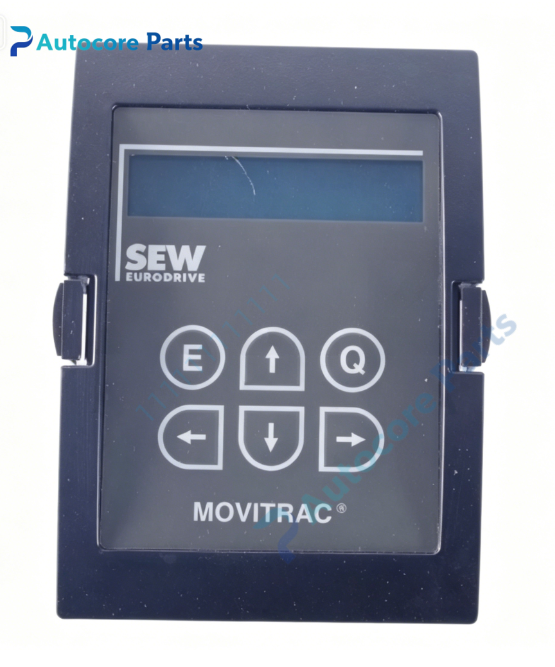

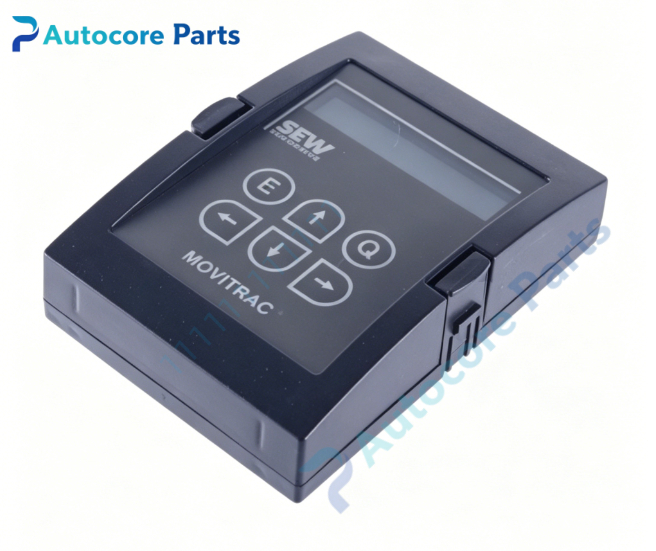

SEW FBG31C-08 Operator Keypad

Technical SpecificationsModel:FBG31C-08 Brand:SEW Product Type:Plug-in Operator Keypad Display:Monochrome LCD character display Keys:8 membrane function keys Power supply:Powered directly from MOVITRAC 31C inverter Mounting:Direct plug onto inverter front port Weight:0.15kg Dimension:120mm90mm30mm Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityFBG31C-08 belongs to SEW FBG31C series keypad,specially designed for large frame MOVITRAC 31C series inverters. It is matched with high power 31C frame frequency converters for on-site commissioning and maintenance. Widely used for conveyor,packaging and material handling automation equipment,legacy SEW drive system maintenance and spare replacement.

FunctionThis plug-in keypad realizes local manual operation for MOVITRAC 31C large power inverter. It supports real-time data monitoring,parameter modification,fault alarm display and fault history query. It has parameter upload and copy function,can save parameter sets and copy to other 31C inverters for fast batch commissioning. It can directly read drive running status and fault codes for on-site troubleshooting.

InstallationCut off inverter main power before installation. Align the connector and plug FBG31C-08 directly into the front interface of MOVITRAC 31C inverter. Lock the buckle for fixation. Power on the inverter after installation,the keypad will automatically communicate with the drive. Remove the keypad after power cut when finishing commissioning.

InterfaceDedicated plug connector for MOVITRAC 31C inverter front port.

FeatureSEW FBG31C-08 compact plug-in keypad for large frame MOVITRAC 31C inverter. 8 membrane key layout,convenient for field commissioning and fault checking. Built-in parameter copy function for quick drive replacement. No external power required,powered by inverter. Discontinued legacy spare part,only for FBG31C series keypad maintenance replacement. Suitable for on-site debugging of high-power MOVITRAC 31C variable frequency drive.

DiagnosticNo display after plugging: inverter no power supply or poor contact of keypad connector; Communication error: loose plug or damaged internal communication circuit; Parameter copy failure: parameter storage chip failure; Keypad button no response: membrane keypad damage.

Product BriefSEW FBG31C-08 is FBG31C series plug-in operator keypad,exclusively for large frame MOVITRAC 31C inverters,used for parameter setting,running monitoring,fault diagnosis and parameter batch copy.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
