SEW DBG11B-11 Operator Keypad

Technical SpecificationsModel:DBG11B-11 Brand:SEW Product Type:Drive Operator Keypad Weight:0.2kg Dimension:120mm85mm28.5mm Display:Backlit plain text LCD Protection class:IP40 Keys:6 membrane keys Operating temperature:-20℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDBG11B-11 is the original SEW MOVIDRIVE series operation panel. Compatible with MOVIDRIVE MD60, MD60A, MDX60B, MDX61B, MCF, MCV, MCH compact inverters. Widely used for packaging machines, conveyor systems and automated production lines, for legacy SEW drive system commissioning, parameter backup and spare replacement.

FunctionThis keypad realizes local manual operation for MOVIDRIVE inverters. It supports parameter read/write, real-time running status display, fault code and plain-text alarm message viewing, fault reset, parameter upload and download. It can store parameter sets for quick cloning and fast drive replacement on site. It supports quick menu and full parameter menu switching, convenient for IPOSplus® parameter modification.

InstallationCut off inverter power before installation. Align the connector and insert DBG11B-11 into the front interface of MOVIDRIVE drive. Lock the snap buckle to fix the panel. Power on the inverter, the keypad will automatically establish communication. Save parameter files into keypad after commissioning for backup. It also supports remote connection via extension cable DKG60B.

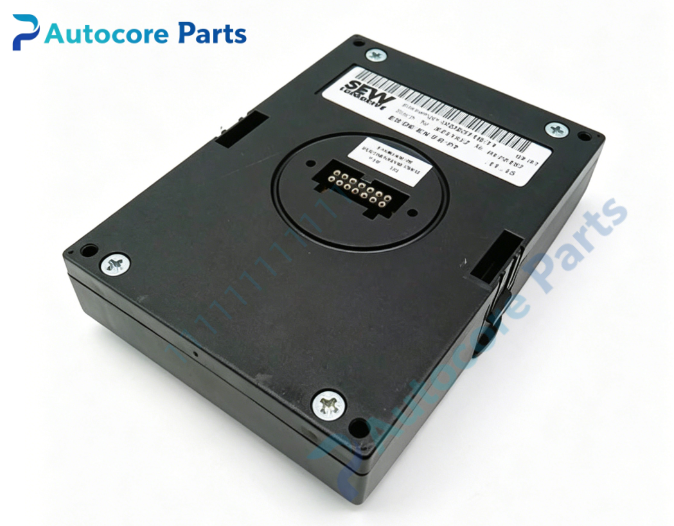

InterfaceBuilt-in dedicated MOVIDRIVE plug connector, front snap mounting structure.

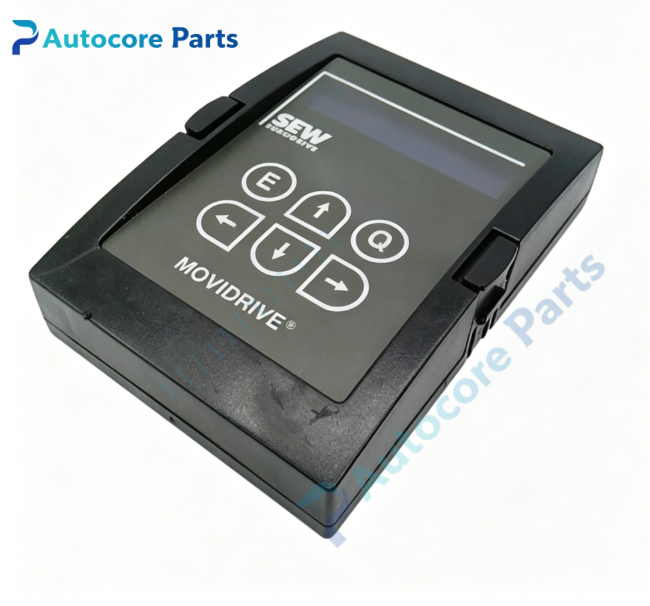

FeatureSEW DBG11B-11 compact keypad with backlit LCD. Multi-language plain text display, easy for on-site maintenance. 6 membrane keys for simple menu navigation and value modification. Parameter clone function for batch commissioning. IP40 front panel protection. Discontinued original spare part, only for MOVIDRIVE series drive maintenance replacement. Suitable for field commissioning and troubleshooting of automation production equipment.

DiagnosticNo backlight and no display: connector loose or keypad hardware damage; Parameter cannot be edited: drive parameter lock activated; Intermittent communication: poor pin contact or damaged extension cable; Garbled text: incompatible firmware version between keypad and inverter.

Product BriefSEW DBG11B-11 is MOVIDRIVE dedicated backlit multi-language operator keypad, used for local parameter configuration, status monitoring and fault diagnosis of SEW MOVIDRIVE inverters.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
