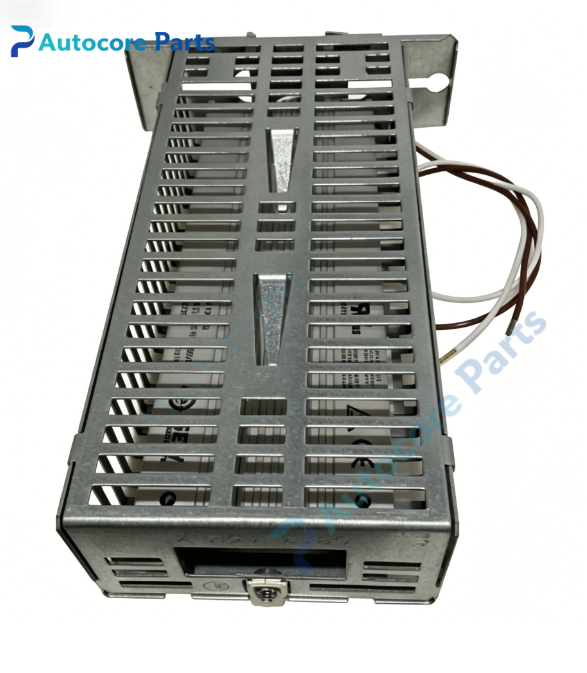

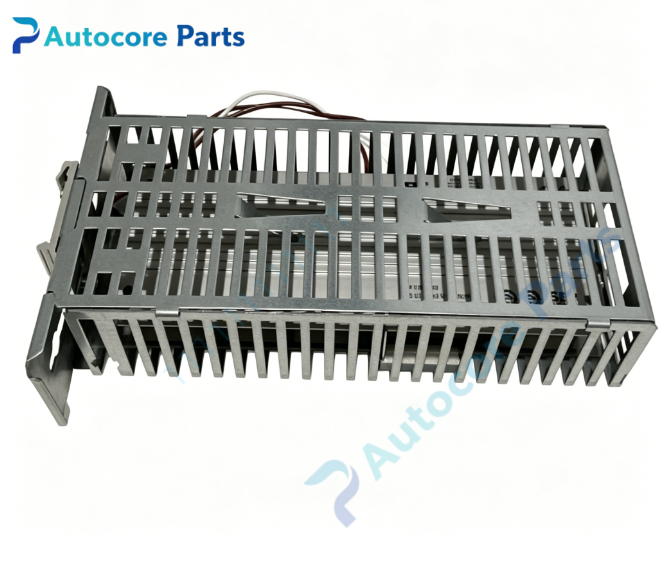

SEW BW100-002 Braking Resistor

Technical SpecificationsModel:BW100-002 Brand:SEW Product type:External Dynamic Braking Resistor Weight:1.1kg Dimension:150mm80mm50mm Resistance:100Ω ±10% Continuous braking power:0.2kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW100-002 is SEW BW series wire-wound braking resistor. Compatible with MOVIDRIVE MD60B, MDX61B servo drives and MOVITRAC B low-power inverters. Widely used for miniature conveyor and small packaging machinery, legacy SEW drive system maintenance and spare replacement.

FunctionThis wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the drive internal brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Built-in thermal contact for overtemperature alarm. Terminal block for DC bus wiring.

InstallationPower off the drive DC bus before installation. Mount BW100-002 vertically inside control cabinet, keep enough air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor terminals to drive brake port. Wire thermal contact signal to drive fault input. Test braking function after wiring.

InterfaceBrake power connection terminals, thermal protection contact terminals, shield grounding terminal.

FeatureSEW BW100-002 compact wire wound braking resistor. 100 ohm impedance, continuous 0.2kW rating. Built-in thermal monitoring contact. Good overload capability for intermittent braking. High temperature resistant wire winding. Discontinued spare part, only for SEW small servo and inverter system maintenance replacement. Suitable for miniature logistics conveyor and small packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose terminal; Overtemperature fault: poor ventilation, excessive braking duty cycle; Resistor no heating: brake chopper not triggered; Short circuit fault: resistor insulation breakdown.

Product BriefSEW BW100-002 is BW series 100Ω 0.2kW external braking resistor, used to dissipate regenerative energy for SEW MOVIDRIVE and MOVITRAC low-power servo drives and inverters.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
