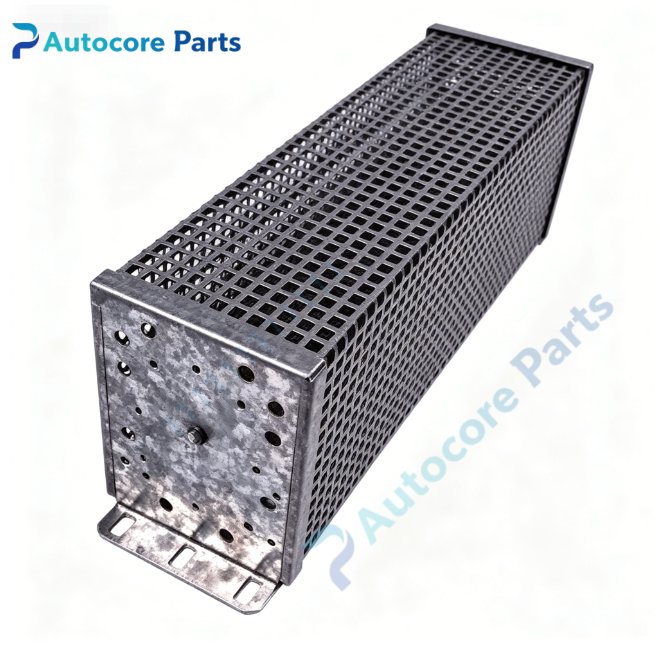

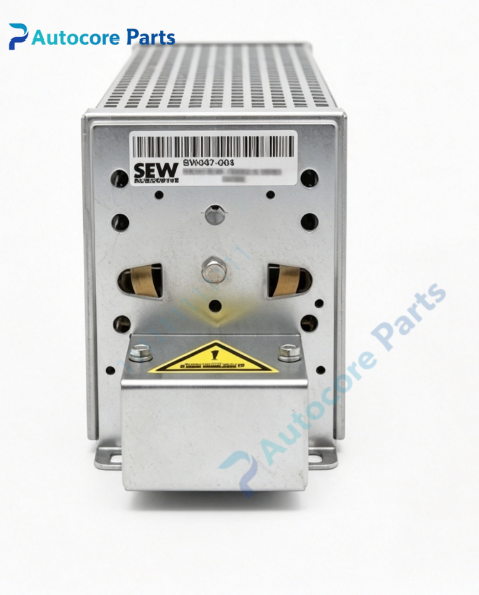

SEW BW047-004 Braking Resistor

Technical SpecificationsModel:BW047-004 Brand:SEW Product type:External Dynamic Braking Resistor Weight:0.9kg Dimension:140mm55mm90mm Resistance:47Ω ±10% Continuous braking power:0.4kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW047-004 is SEW BW series external wire-wound braking resistor. Compatible with MOVIDRIVE MD60A, MDX61B servo drives, MOVITRAC B inverters and BTS brake chopper modules. Suitable for tiny conveyor, small packaging machinery, legacy SEW low-power drive system maintenance and spare replacement.

FunctionThis compact wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Terminal block for DC bus wiring, requires external thermal protection relay.

InstallationPower off the drive DC bus before installation. Mount BW047-004 vertically inside control cabinet, keep enough air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor terminals to brake chopper or drive brake terminals. Equip external thermal protection relay for overheat monitoring. Test braking function after wiring.

InterfaceBrake power connection terminals, shield grounding terminal.

FeatureSEW BW047-004 ultra-compact wire wound braking resistor. 47 ohm impedance, continuous 0.4kW rating. Small footprint for micro low-power drive systems. High temperature resistant wire winding. Discontinued spare part, only for SEW small inverter and servo system maintenance replacement. Suitable for miniature logistics conveyor and small packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose terminal; Resistor overheat: excessive braking duty cycle; Resistor no heating: brake chopper not triggered; Short circuit fault: resistor insulation breakdown.

Product BriefSEW BW047-004 is BW series 47Ω 0.4kW external braking resistor, used to dissipate regenerative energy for SEW low-power MOVIDRIVE and MOVITRAC inverters and servo drives.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
