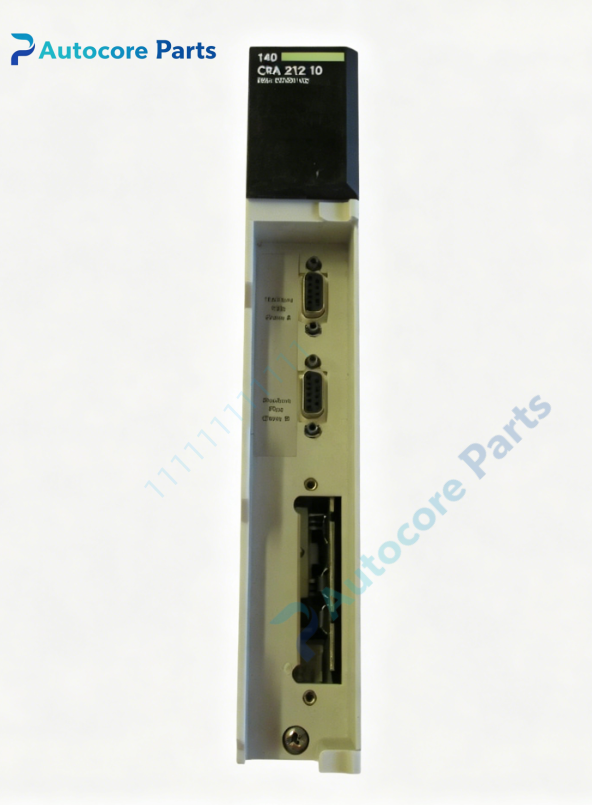

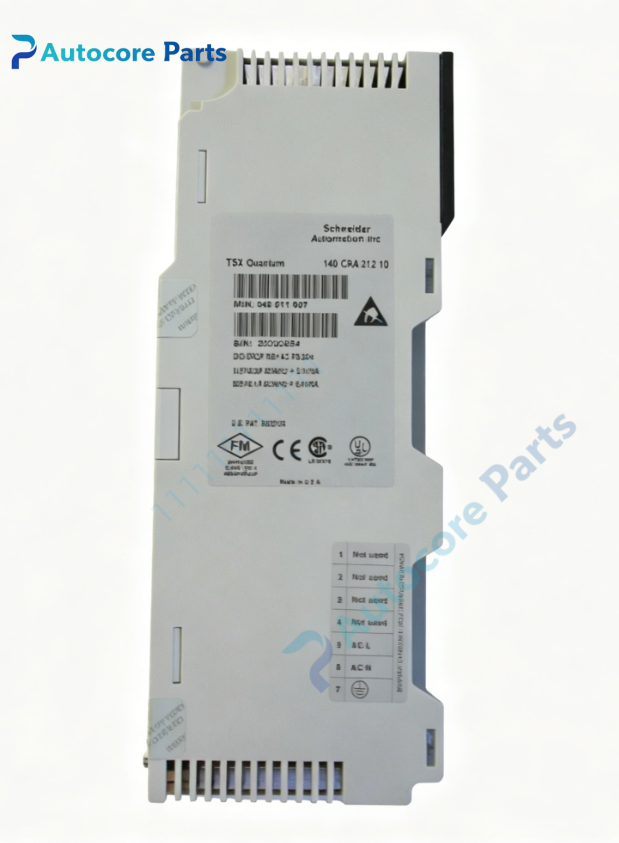

MODICON 140CRA21210 DIO Drop Interface Module

Technical SpecificationsModel:140CRA21210 Brand:MODICON(Schneider) Product Type:Quantum Series DIO Drop Distributed I/O Interface Module Power Supply:115/230V AC,47~63Hz Power Range:85~276V AC Max Current:0.2A@115V,0.4A@230V Communication:Modbus Plus Backplane Bus:Quantum backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.32kg Dimension:260mm140mm30mm Protection:IP20

System compatibility140CRA21210 belongs to MODICON Quantum series DIO drop remote I/O interface module. Compatible with MODICON Quantum CPU,Quantum backplane and series I/O modules. It is used for remote distributed I/O expansion via Modbus Plus bus. Suitable for chemical plant,water treatment,power plant,large-scale process control remote signal collection renovation and replacement as industrial spare part.

Function140CRA21210 DIO drop remote I/O adapter. It communicates with main Quantum CPU through Modbus Plus bus,realizes remote rack I/O data exchange. It collects discrete and analog signals from remote I/O modules and transmits to main CPU; meanwhile receives control commands from main CPU and outputs to field equipment. Built-in bus communication monitoring,module self-diagnosis and fault alarm function. Widely used for long-distance distributed I/O expansion of large industrial control systems, serving as reliable remote I/O interface spare part.

InstallationCut off rack power before installation. Insert 140CRA21210 module into Quantum backplane slot and lock the card. Check gold finger contact condition. Connect Modbus Plus communication cable and AC power supply. Configure network station address and I/O mapping,complete online communication test before formal operation.

InterfaceBackplane bus connector,Modbus Plus bus port,AC power terminal,run/fault/bus status LED indicators for 140CRA21210 MODICON DIO drop interface module.

FeatureMODICON 140CRA21210 Quantum DIO drop module,115/230V wide AC power input,Modbus Plus fieldbus,remote I/O rack expansion,real-time hardware status LED,standard single slot rack design,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON Quantum PLC distributed I/O system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for 140CRA21210. Bus communication failure: check Modbus Plus cable,termination resistor,shielding grounding and station address. Module fault alarm: check power supply range and hardware damage. I/O data loss: inspect remote rack power stability and bus cable breakage. Intermittent offline: check electromagnetic interference and connector loose.

Product Brief140CRA21210 is MODICON Quantum series DIO drop remote I/O interface module. It extends distributed I/O racks via Modbus Plus bus for Quantum PLC system,classic spare part for legacy MODICON large industrial automation control system overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
